Artikelnummer: KL29360
Wärmetauscherplatte für BrewZilla Gen 4 65L
Wärmetauscher-Schale für 65L BrewZilla Gen 4 verbessert die Heizeffizienz während des Maischens, indem sie den Würzefluss länger über die Heizelemente leitet. Nur kompatibel mit 65L BrewZilla Generation 4. | Wärmetauscher, BrewZilla, Brauen, Maischen, Edelstahl
Installation Installationsservice: Wir installieren das Gerät vor Ort gemäß den Anweisungen des Herstellers, schließen es an die Anlage an (mechanische Anschlüsse) und führen die Erstkonfiguration sowie einen Testlauf durch. Der Preis hängt von Standort, Zugänglichkeit und Arbeitsumfang ab. (Preis nach Vereinbarung / Angebot)Nein Ja29.90€
Preis zzgl. MwSt.24.11€
Sonderanfertigung Delivery time: 21–35 business daysSonderanfertigung. This product is manufactured to order. The 14-day right of withdrawal does not apply (Law of Obligations Act § 56 (3) 1).0Europe/Tallinnout_of_stock_products0VerfügbarkeitNicht auf Lager Pärnu 0 Stk. Sonderanfertigung Nicht auf Lager Lieferantenbestand 0 Stk. Sonderanfertigung Lieferung 7-14 VersandinformationenWird geladen…24 Monate GarantieSonderanfertigung – Rückgaberecht gilt nichtB2B-RechnungszahlungErsatzteile aus dem E-Shop -
-
Beschreibung

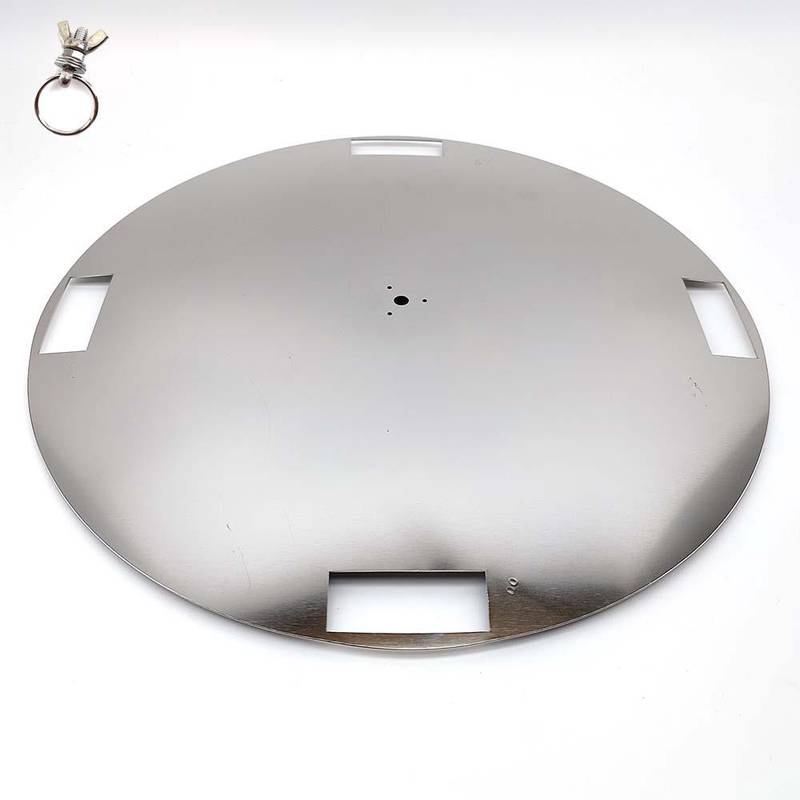

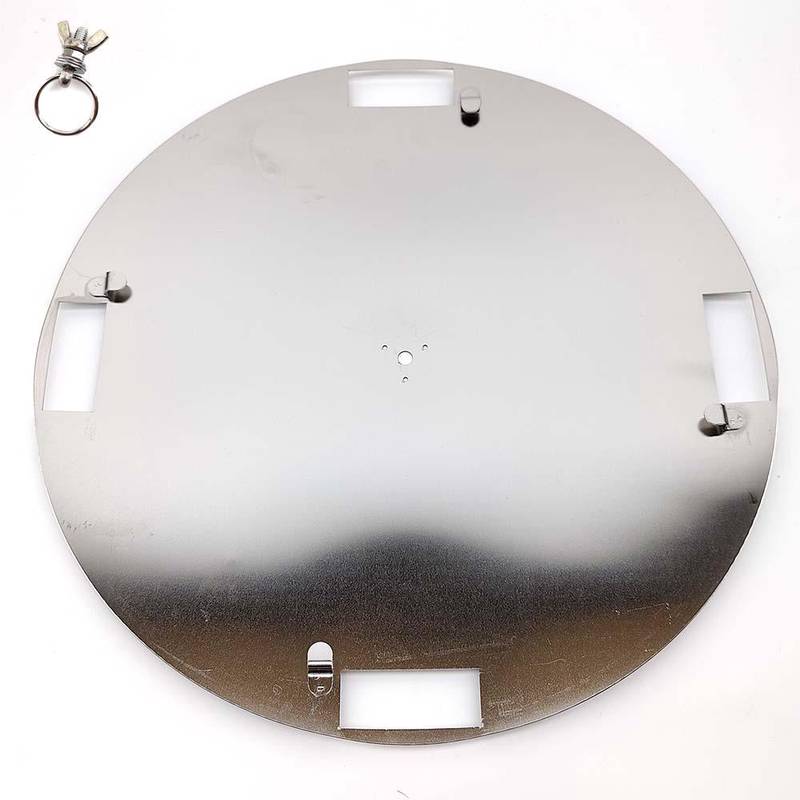

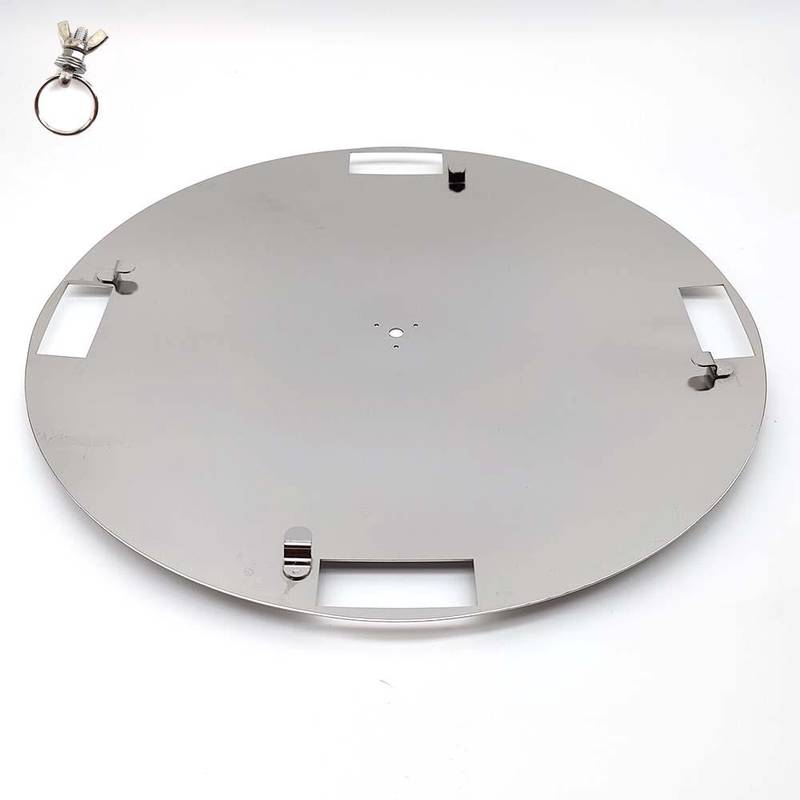

Wärmetauscherplatte für BrewZilla Gen 4 65L
⚠️ Wichtig: Dies ist ein aufrüstbares Zubehör nur für den 65L BrewZilla Generation 4. Es ist nicht kompatibel mit früheren Generationen von BrewZilla / RoboBrew oder DigiBoils.
Verwendung: Wärmetauscher-Schale für 65L BrewZilla Gen 4 verbessert die Heizeffizienz während des Maischens, indem sie den Würzefluss länger über die Heizelemente leitet, was zu schnellerer Temperaturerreichung führt.

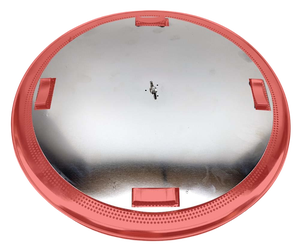

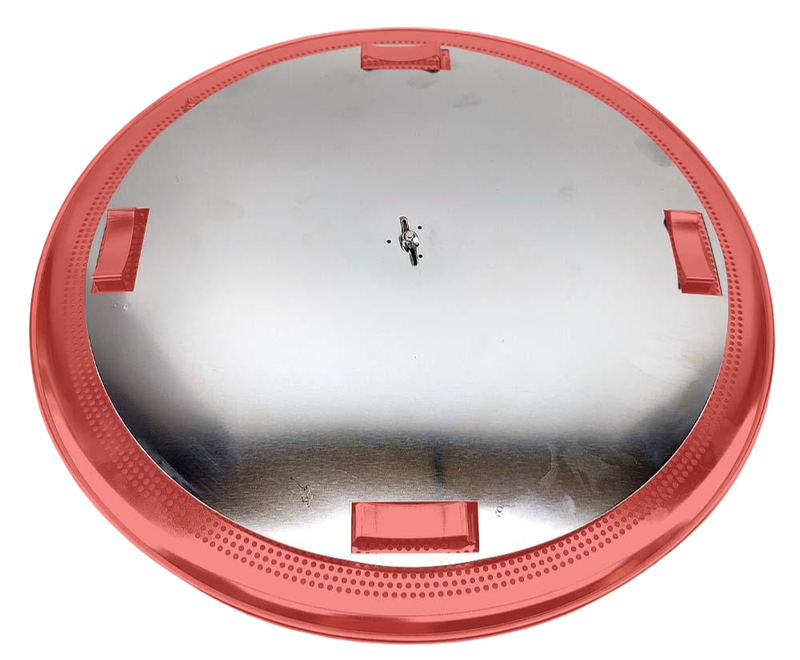

Eigenschaften: In eine leicht konkave Form gepresst, um der Krümmung des Kesselfalschbodens des 65L BrewZilla Gen 4 zu entsprechen. Enthält eine längere Augenschraube mit Flügelmutter. Zwingt die zirkulierende Würze zum Rand der BrewZilla-Basis und über die Elemente für längeren Wärmeaustausch.

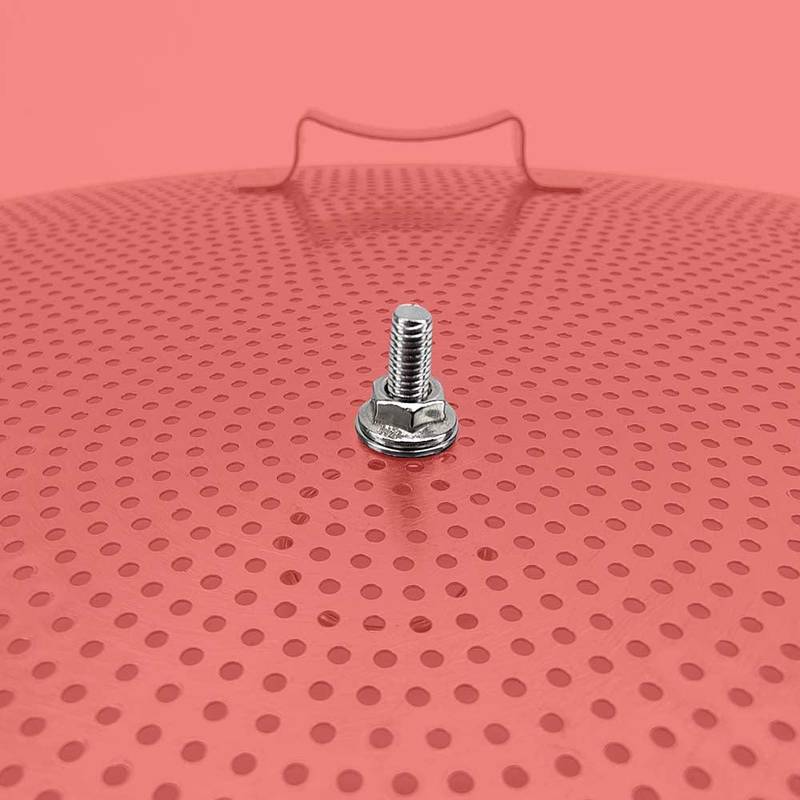

Technische Daten: Kompatibel mit: nur 65L BrewZilla Gen 4. Material: Edelstahl. Montagereihenfolge: Augenschraube, Unterlegscheibe, Falschboden, Unterlegscheibe, Mutter, Wärmetauscher-Schale, dann Flügelmutter. Dies verhindert, dass die Augenschraube beim Reinigen unter der Wärmetauscher-Schale vollständig entfernt wird.
FAQ: Was macht es? Aufgrund des konkaven Bodens und des zentralen Ablauflochs fließt die durch die Pumpe zirkulierende Würze durch das Malzrohr und dann durch den Kesselfalschboden. Die Wärmetauscher-Schale zwingt diese zirkulierende Würze zum Rand der BrewZilla-Basis und über die Elemente für einen längeren Zeitraum, was einen schnelleren Wärmeaustausch mit der Würze ermöglicht.
-
Spezifikationen
Länge (mm) 600.00 Breite (mm) 400.00 Höhe (mm) 400.00 Gewicht (kg) 0.56 Bruttogewicht (kg) 0.68 Volumen (ml) 65.00 Unit Stk. Zertifizierungen CE
Lebensmittel-Compliance Konform EU 1935/2004
Konform EU 10/2011
Lebensmittelkontakt zertifiziert
Volumen (L) 65 -
