Refrigeration kit for tank 700L flat bottom stainless steel
Brand: Polsinelli
Unit: pc
Stock qty: Pre-order
Delivery time (day): 14-30
Delivery time within Estonia for stock items approx. 3-5 working days. NOTE! Due to the rapid price increase, prices for non-stock items may change without prior notice! Standard prices with 24% VAT.

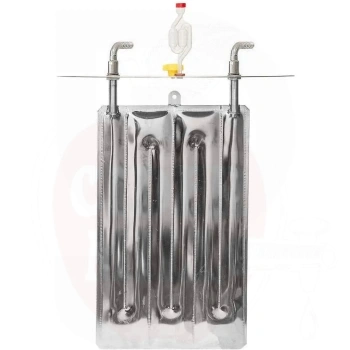

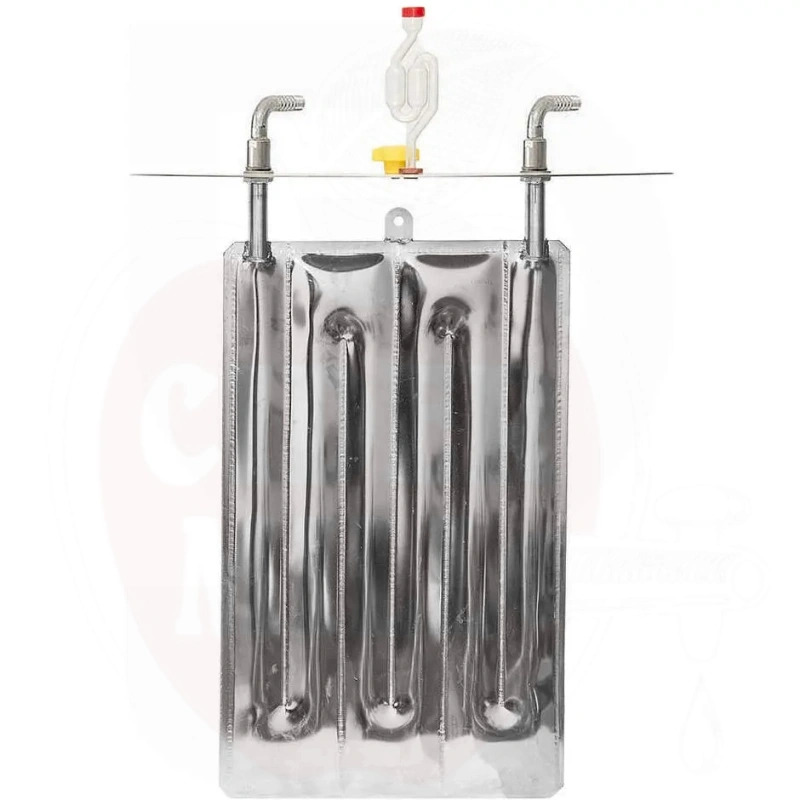

Refrigeration kit for tank 700L flat bottom stainless steel

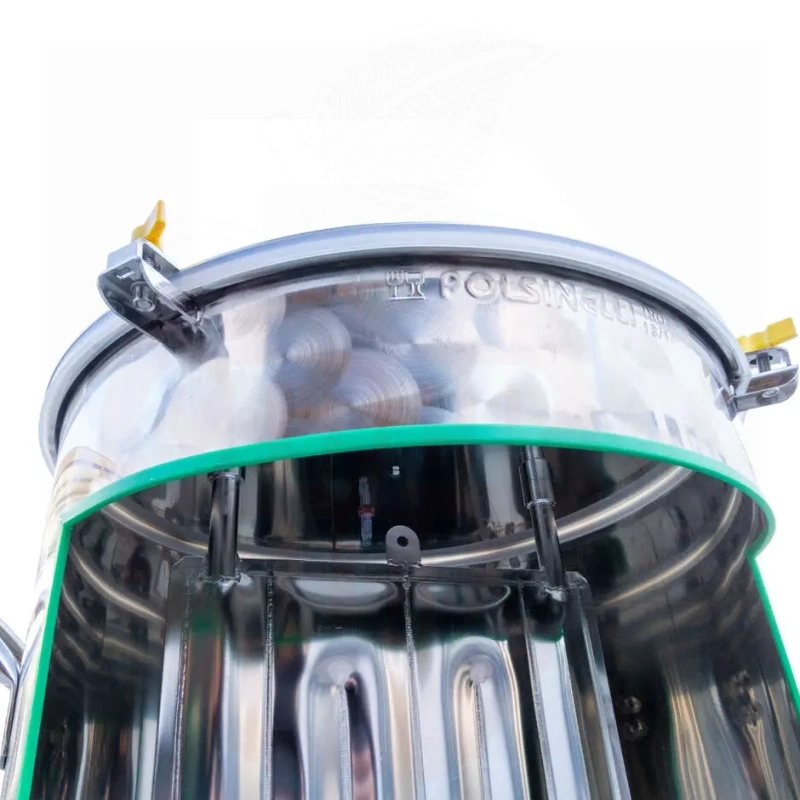

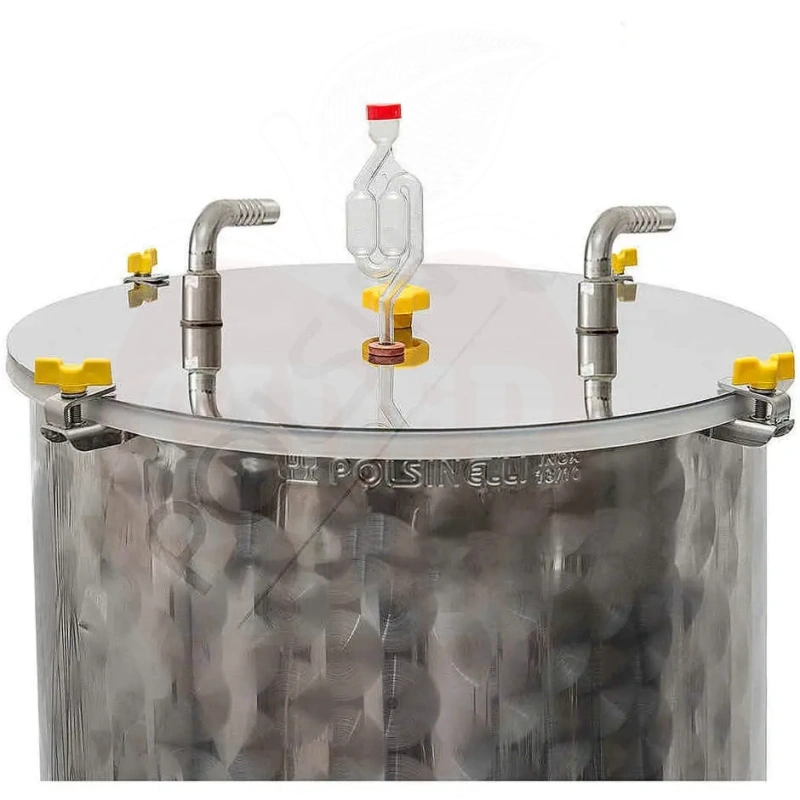

Usage: The 700 L stainless steel tank cooling plate is the ideal accessory to optimally reduce the internal temperature of the beer and wine production tank.
Features: Made of AISI 304 stainless steel, easy to immerse and remove for cleaning. Allows perfect temperature exchange between water and glycol solution and the must, beer or wine in the tank. Recommended for lager beer processing and high fermentation by circulating hot liquid inside the pipes.
Technical data: Material: AISI 304 stainless steel. Dimensions: 370x1000 mm. Exchange surface: 0.74 m². Internal capacity: 1.85 L. Foil thickness: 1+1 mm.
Warnings: Requires circulation of water and glycol solution cooled by external chiller. Not suitable for conical bottom fermenters, no probe holder included.
Frequently Asked Questions
What is the cooling plate made of?
The cooling plate is made of AISI 304 stainless steel sheet thickness 1+1mm. This food grade material provides durability, corrosion resistance and safe contact with wort, beer and wine while allowing for efficient heat transfer through the exchange surface.
What are the dimensions and exchange capacity?
The dimensions of the plate are 370×1000 mm, the exchange surface is 0.74 m² and the internal volume is 1.85 L. These parameters are optimized for use in 700L flat bottom stainless steel tanks with an external cooler.
Can it be used with conical bottom fermentation tanks?
No, this cooling plate is specially designed for flat bottom stainless steel tanks. It is not suitable for fermentation tanks with a conical bottom, as the geometry and installation method differ significantly.
Is an external cooler necessary?
Yes, the board requires circulation of a water-glycol solution cooled by an external chiller. The cold liquid flows through internal pipes, allowing for effective temperature reduction in the tank during the fermentation and storage stages.
Is the probe holder included?
No, the probe holder is not included in this cooling kit. If monitoring the temperature with a probe is necessary, a suitable probe holder must be purchased separately and installed on the tank.
| application_area | small production |
| filter_surface_area | 0.74 |
| material | stainless steel 304 |
| product_compatibility | beer,must,wine |
| washable_replaceable | yes |
| Weight (kg) | 350.0 |
| High (m) | 1 |
| Width (m) | 0.37 |
| Length (m) | 1.2 |
