Rotary spray ball G-3/4F for container 1.40m 50L/min 4bar
EAN: 1778601
Brand:
Unit: pc
Stock qty: Pre-order
Delivery time within Estonia for stock items approx. 3-5 working days. NOTE! Due to the rapid price increase, prices for non-stock items may change without prior notice! Standard prices with 24% VAT.
1352,27 €/Kg

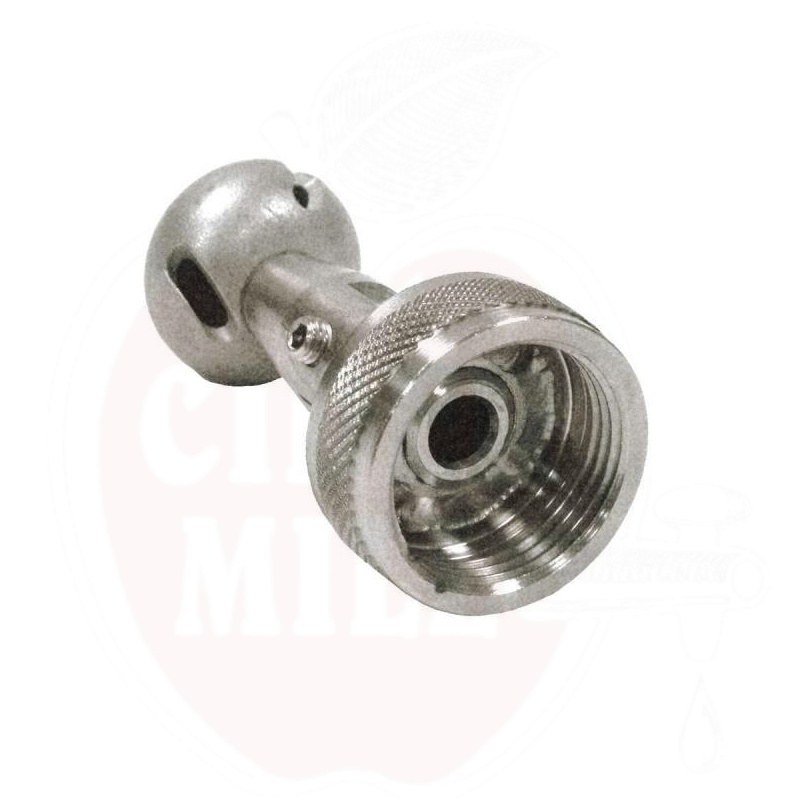

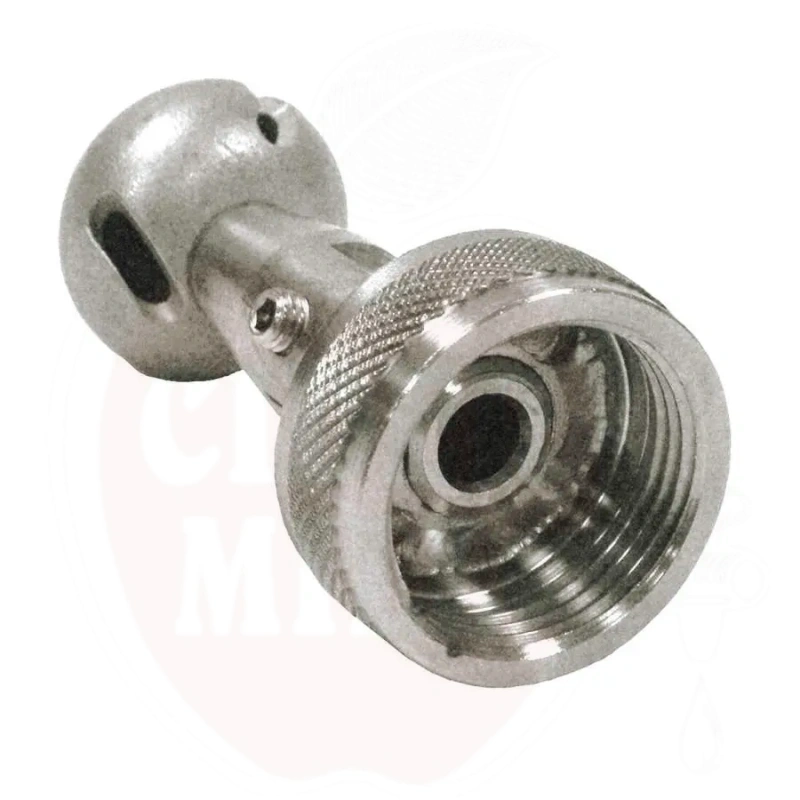

Rotating spray head for efficient tank cleaning.
A compact and efficient rotating spray head ensures quick and thorough cleaning of your tanks. This 25mm diameter spray head is an ideal solution for maintaining various containers.
Technical data and features:
- Suitable for tanks, demijohns, and barrels
- Connection: ¾-inch female thread
- Maximum water consumption: 50 l/min
- Working pressure: up to 4 bar
- Maximum tank diameter: 1.5 meters
- Adjustable water flow for precise cleaning
Thanks to its small dimensions, the spray head can access narrow openings while ensuring maximum cleaning power. The adjustable water flow allows you to modify cleaning intensity according to needs.
Frequently Asked Questions
What containers is this washing head suitable for?
This rotating washing head is suitable for containers, cylinders and drums with a maximum inner diameter of 1.5 meters. The compact 25mm body allows entry through narrow openings, making it ideal for wine tanks, beer fermenters and smaller industrial vessels where access is limited.
What operating pressure and flow rate does it require?
The washing head works at a working pressure of up to 4 bar and the maximum water consumption is 50 l/min. The water flow is adjustable, which allows you to adjust the cleaning intensity according to the residues. These values ensure full rotation of the head and complete coverage of the inner surface of the container.
What is the connection type?
The scrub head has a ¾” female threaded connection (G-3/4F) that is compatible with most standard scrubber lines and CIP systems. This makes installation on existing cleaning lines quick and easy without the need for additional adapters.
Can the cleaning intensity be adjusted?
Yes, the washing head has an adjustable water flow, which allows you to change the cleaning intensity as needed. It is useful both for light rinses after simple use and for more thorough washing when heavier residues need to be removed.
Is it suitable for use in the food and beverage industry?
Yes, the rotary washing head is designed for use in wineries, breweries and other food and beverage environments. This ensures a thorough coating of the internal surfaces of the container, helping to maintain the hygiene standards required for the production of wine, beer and other fermented products.
| Weight (kg) | 0.088000 |
| High (m) | 0.11 |
| Width (m) | 0.016 |
| Length (m) | 0.125 |
