SKU: RIP0098

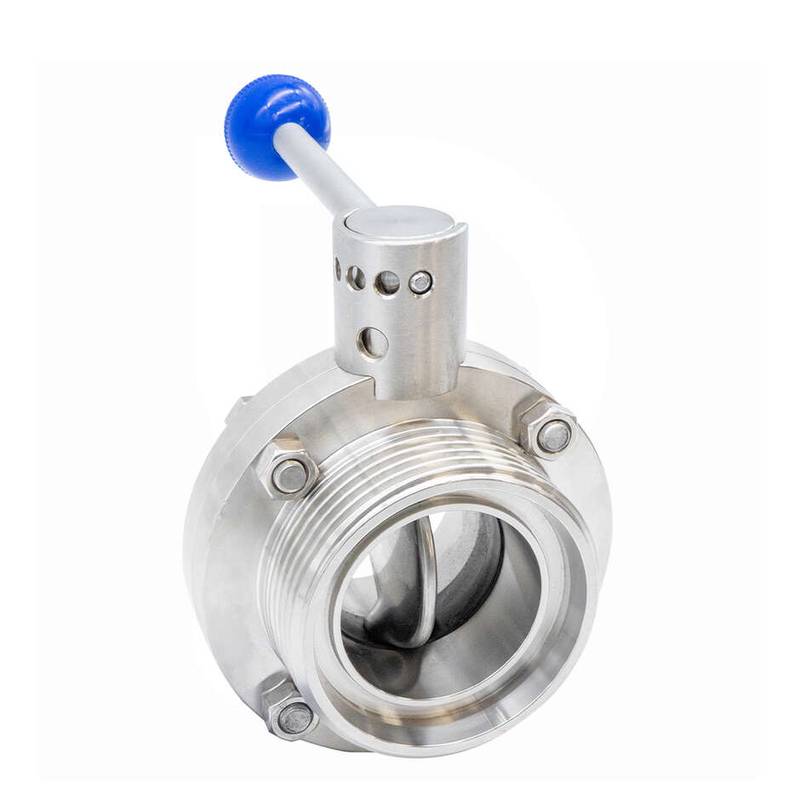

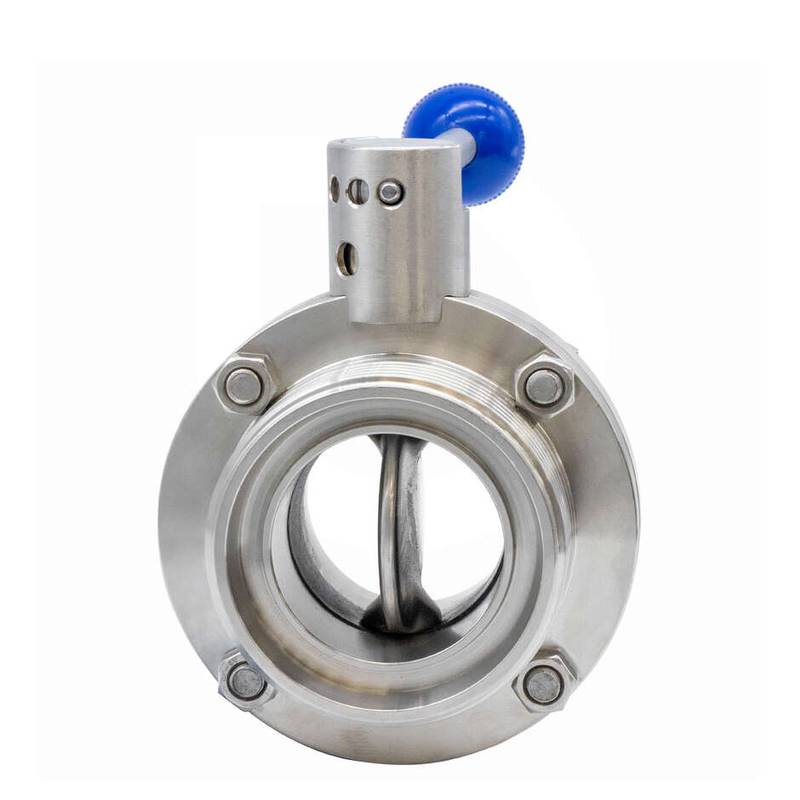

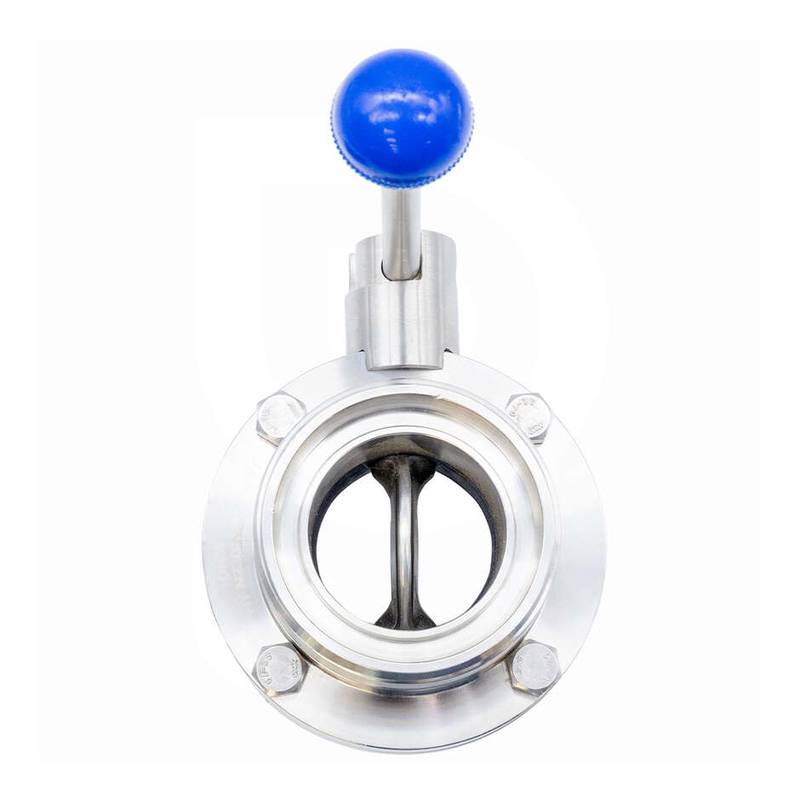

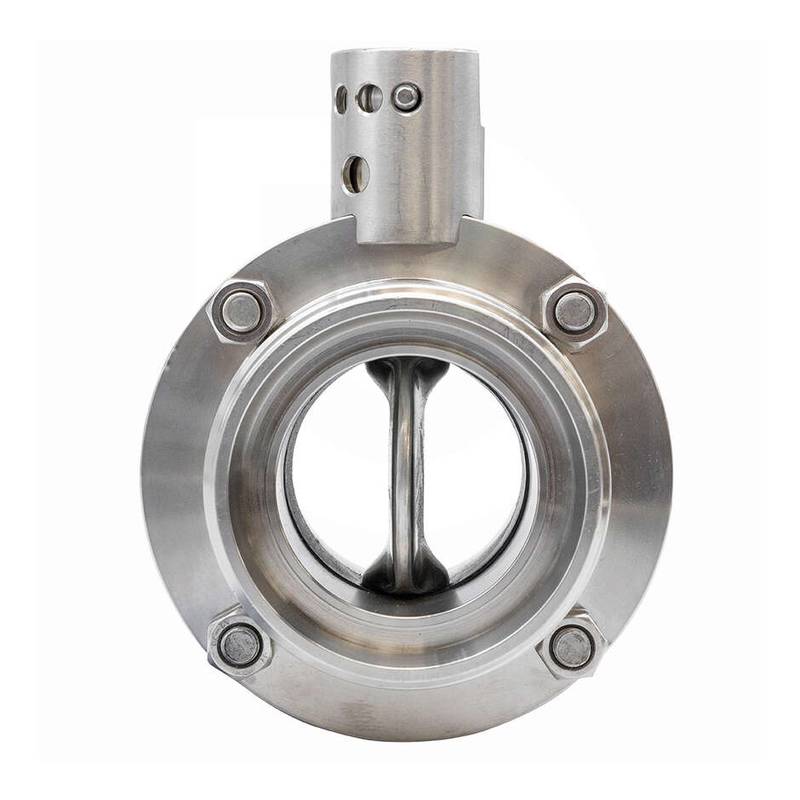

Butterfly valve DIN 50 F/F stainless steel
Stainless steel butterfly valve DIN 50 made of AISI 304 stainless steel with DIN50 F x DIN50 F connections and a convenient handle with screw safety lock.
Installation Installation service: we install the device on site according to the manufacturer's instructions, connect to the line (mechanical connections) and perform initial setup and test run. Price depends on location, access and scope of work. (price by agreement / quote)No Yes159.00€
Price without VAT128.23€
To be ordered Delivery time: 21–35 business daysTo be ordered. This product is manufactured to order. The 14-day right of withdrawal does not apply (Law of Obligations Act § 56 (3) 1).0Europe/Tallinnout_of_stock_products0AvailabilityOut of Stock Pärnu 0 pcs To be ordered Out of Stock Supplier warehouse 0 pcs To be ordered Delivery 14-30 Shipping informationLoading…Warranty 24 monthsTo be ordered – right of return does not applyB2B invoice paymentSpare parts from e-shop -
-
Description
Butterfly valve DIN 50 F/F stainless steel
Usage: Used for controlling the flow in pipes requiring DIN 50 standard connections.
Properties: Completely made of AISI 304 stainless steel, providing corrosion resistance and durability. Features a convenient handle with screw safety lock to prevent accidental opening.
Technical data: Material: Stainless steel AISI 304.
Connections: DIN50 F x DIN50 F.
Handle type: Screw lock.Warnings: Ensure secure installation to prevent leaks and maintain operational safety.
-
Frequently asked questions about RIP0098
What material is this butterfly valve made of?
The valve is completely made of AISI 304 stainless steel, which ensures excellent corrosion resistance, durability and suitability for the food industry. This material ensures a long service life even in demanding conditions where moisture, acids or cleaning chemicals are present.
What type of connection does the valve use?
The valve has DIN50 F x DIN50 F (internally threaded) connections on both sides that comply with the DIN 50 standard. This makes it compatible with standard DIN piping used in food, beverage and industrial processing systems.
How does the security lock work?
The handle is equipped with a screw-type safety lock, which must be unscrewed before turning the valve. This prevents accidental opening or closing during operation and ensures that the valve remains in the desired position throughout the process.
Is this valve suitable for the food and beverage industry?
Yes. Thanks to its AISI 304 stainless steel construction and hygienic design, the valve is well suited for food, beverage, wine and milk processing lines where cleanliness and material compatibility are important.
-
Specifications

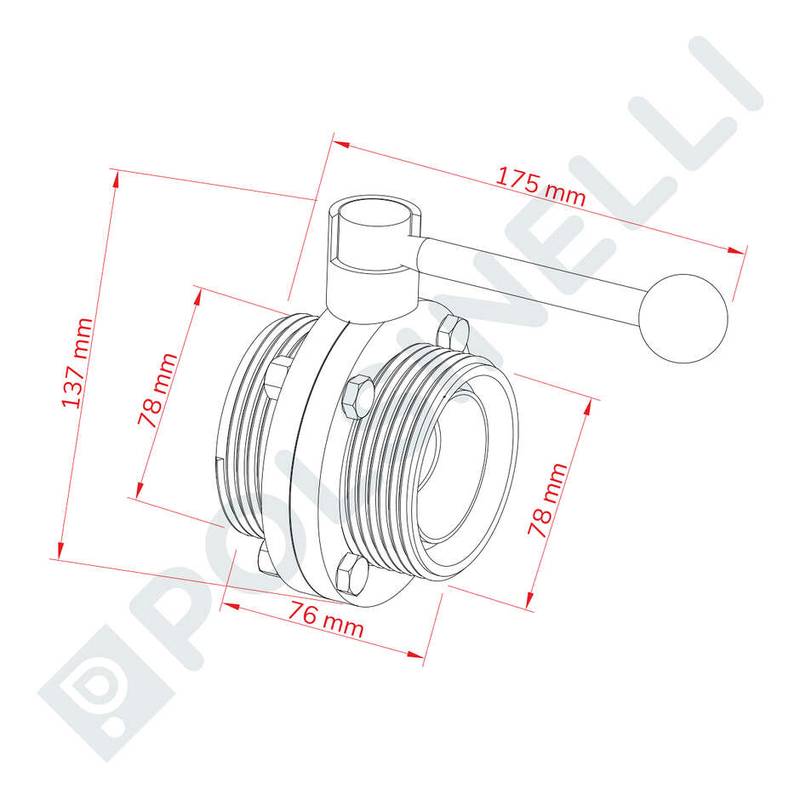

Length (mm) 600.00 Width (mm) 400.00 Height (mm) 400.00 Gross Weight (kg) 3.00 Unit pcs Connection size DIN 50 Certifications CE
Product type Fitting / pipe component
-
