  Isobar filling unit Silexa 80L/H 2.3Bar

  Professional Isobaric Bottle Filler for Small Producers German quality isobaric bottle filler is an ideal solution for small producers and beer shops who want to offer quality takeaway options. The fully automatic device can fill up to 80 liters per hour.

  Installation Installation service: we install the device on site according to the manufacturer's instructions, connect to the line (mechanical connections) and perform initial setup and test run. Price depends on location, access and scope of work. (price by agreement / quote)

  No Yes

  Kokkuhoid: 0.00€

  2978.00€

  2978.00€

  Price without VAT

  2401.61€

  2401.61€

  To be ordered Delivery time: 21–35 business days

  To be ordered. This product is manufactured to order. The 14-day right of withdrawal does not apply (Law of Obligations Act § 56 (3) 1).

  Add to cart

  Request Quote

  Print
  Availability

  Out of Stock Pärnu

  0 pcs To be ordered

  Shipping information

  Loading…
  Warranty 24 months

  To be ordered – right of return does not apply

  B2B invoice payment

  Spare parts from e-shop
• • Description
  • FAQ
  • Specifications

  • Description

    Professional Isobaric Bottle Filler for Small Producers

    German quality isobaric bottle filler is an ideal solution for small producers and beer shops who want to offer quality takeaway options. The fully automatic device can fill up to 80 liters per hour.

    Technical Specifications

    • Maximum working pressure: 2.3 bar
    • Filling: 2 liters in 90 seconds
    • Productivity: up to 80 liters per hour

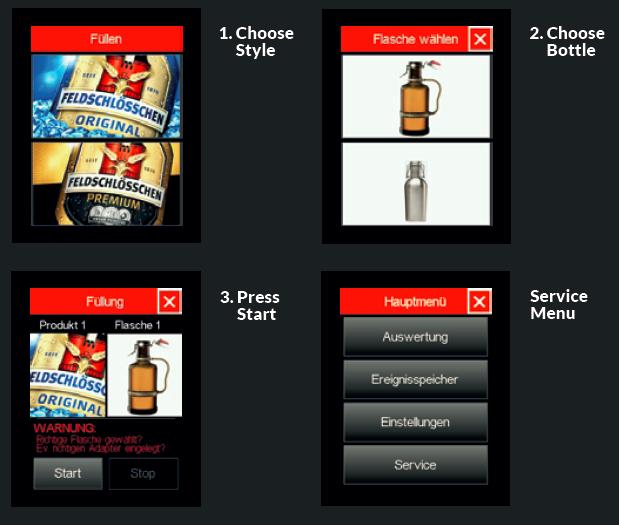

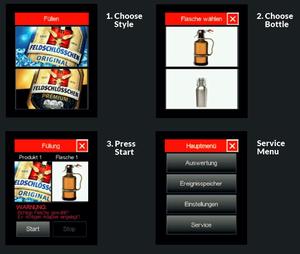

    • Large touchscreen LCD display

    Bottle Specifications

    • Maximum width: 200 mm
    • Maximum height: 365 mm
    • Bottle neck diameter: 16-78 mm

    Special Features

    • Fully automatic filling process
    • Ability to fill 1-4 different products
    • Simple and user-friendly control panel
    • Expandable with multi-product filling capability

  • Frequently Asked Questions

    Which drinks can be filled with the Silexa 80L/H filler?

    Silexa isobaric filler is designed for carbonated beverages such as beer, cider, kombucha and sparkling wine. Isobaric filling maintains CO₂ levels during transfer, preventing foaming and oxidation. It is suitable for small producers who value product quality and shelf life.

    How many products can be filled at the same time?

    The standard configuration supports the filling of 1-4 different products, and the system is expandable with multi-product filling capability. This flexibility is ideal for craft breweries and beer shops, allowing the operator to change products without lengthy reconfiguration.

    What bottle sizes are compatible?

    The filler is suitable for bottles up to 200mm wide and 365mm high, with a neck diameter of 16-78mm. This wide range covers most standard beer, cider and sparkling wine bottles as well as growlers, making it versatile for small producers and retail take-out formats.

    Is it easy to learn to use?

    Yes. Silexa is equipped with a large touch-sensitive LCD screen and a simple, user-friendly control panel that guides the operator through the fully automatic filling process. No special training is required and the interface reduces the risk of operator error in daily use.

    What is the maximum working pressure?

    The maximum working pressure is 2.3 bar, which is suitable for most carbonated drinks. The isobaric principle equalizes the pressure between the pressurized source tank and the bottle before filling, ensuring minimal loss of carbonation and consistent fill levels in each bottle.

  • Specifications

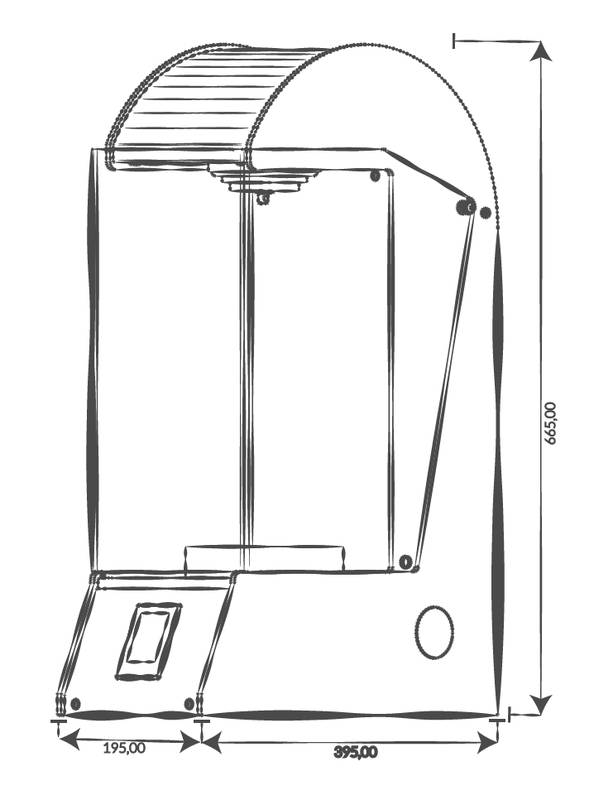

    Length (mm)	600.00
    Width (mm)	400.00
    Height (mm)	400.00
    Weight (kg)	22.00
    Gross Weight (kg)	62.00
    Volume (ml)	2000.00
    Unit	pcs
    Throughput	80 L/h
    Pressure (bar)	2.3
    Certifications	CE
    Volume (L)	2
