  • Isobaarne villimismasin ISO 4V 4 tilaga
    Isobaarne villimismasin ISO 4V 4 tilaga
    Isobaarne villimismasin ISO 4V 4 tilaga
    Isobaarne villimismasin ISO 4V 4 tilaga

  • SKU: RMP0086

    Isobaarne villimismasin ISO 4V 4 tilaga

    Brand

    ISO 4V 4 spouts isobaric filling machine

    Installation Installation service: we install the device on site according to the manufacturer's instructions, connect to the line (mechanical connections) and perform initial setup and test run. Price depends on location, access and scope of work. (price by agreement / quote)
    No Yes

    12990.00€

    Price without VAT

    10475.81€

    To be ordered Delivery time: 21–35 business days
    To be ordered. This product is manufactured to order. The 14-day right of withdrawal does not apply (Law of Obligations Act § 56 (3) 1).
    Availability
    Out of Stock Pärnu 0 pcs To be ordered
    Delivery 30-90
    Shipping information
    Loading…
    Warranty 24 months
    To be ordered – right of return does not apply
    B2B invoice payment
    Spare parts from e-shop

    • Description

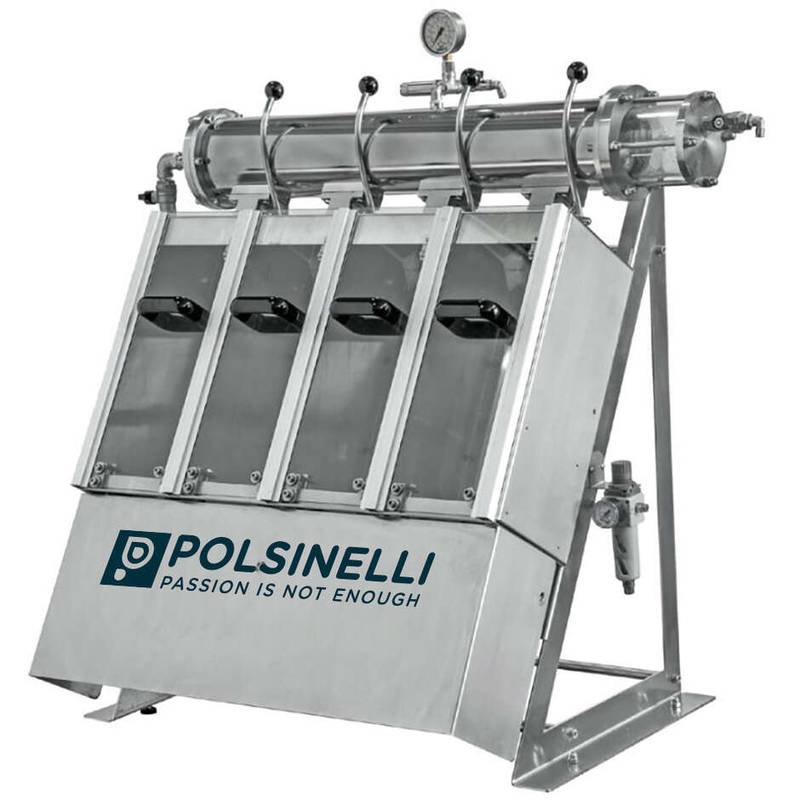

      Filling machine ISO 4V 4-spout isobaric

      Usage: For isobaric filling of bottles up to 0.75L. Ideal for filling wine, beer, drinks, premixed cocktails, cider and other CO₂ beverages, minimizing foam and oxidation.

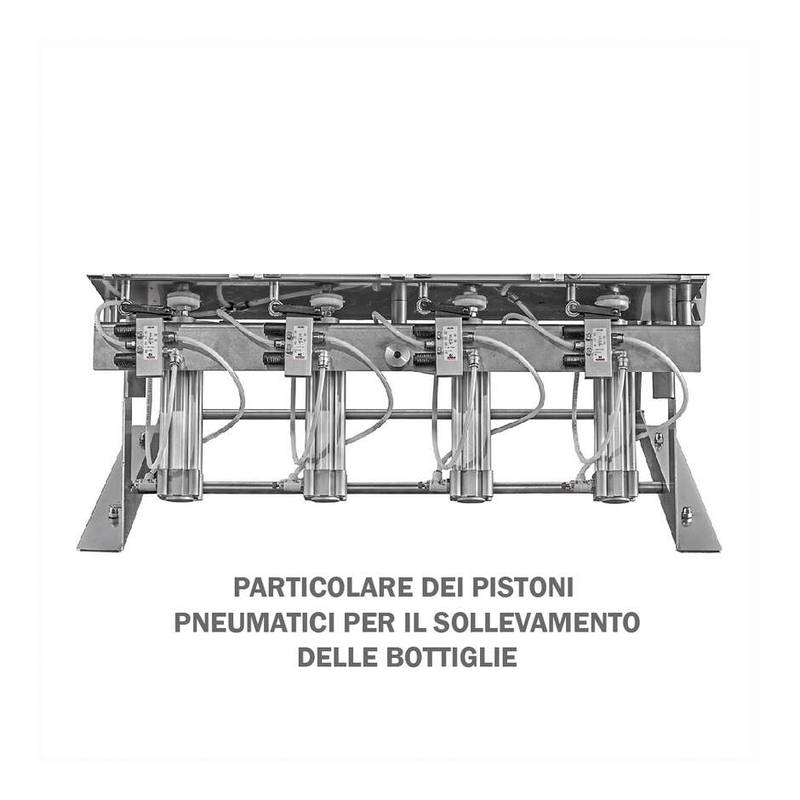

      Properties: Made of stainless steel with laser-cut plate and galvanic electro-polishing for all product-contact areas. Automatic bottle lifting via pneumatic piston. Change between bottle formats quickly. Equipped with pressure gauge, safety valve (certified and tested), and nitrogen/CO₂ control valve.

      Technical data: 4 slots, max bottle size 0.75L, up to 200 bottles/hour, max working pressure 5 bar, weight 60kg. Automatic bottle lifting system in stainless steel with top-quality long-stroke pistons.

      Warnings: For professional bottling use. Read the maintenance manual. Do not exceed maximum pressure. No storage conditions apply (stainless steel).

    • Frequently asked questions about this product

      What does isobaric filling do for carbonated drinks?

      Isobaric filling balances pressure between bottle and tank before filling, which minimises foaming and oxidation. That protects the carbonation in wine, beer, cider and premixed cocktails. It keeps CO2 in the drink rather than lost as foam.

      How many bottles can the ISO 4V fill per hour?

      It has 4 filling spouts and reaches up to 200 bottles per hour. The format is for bottles up to 0.75 L. Automatic pneumatic bottle lifting positions each bottle.

      How does it control gas during filling?

      It has a nitrogen/CO2 control valve plus a pressure gauge and a certified safety valve. Managing the gas keeps the fill isobaric and the carbonation stable. The maximum working pressure is 5 bar.

      How are the product-contact parts finished?

      They are stainless steel with a laser-cut plate and galvanic electro-polishing. The polished surfaces resist residue and are easy to keep clean. This suits hygienic beverage bottling.

      Can it switch between bottle formats easily?

      Yes; the format change between bottles is quick. Automatic bottle lifting uses long-stroke pneumatic pistons in stainless steel. The compact 60 kg unit suits small professional bottling.

    • Specifications

      Length (mm)600.00
      Width (mm)400.00
      Height (mm)400.00
      Weight (kg)60.00
      Gross Weight (kg)55.00
      Volume (ml)750.00
      Unitpcs
      Pressure rating (bar)5
      Certifications

      CE

      PED

      Material

      Stainless steel

      Volume (L)0.75
