  Gas burner 9.2kW NEW CROMO PSP LPG/CNG



  Gas burner CROMO 9.2 kW PSP LPG / CNG Chromed steel gas burner with safety valve, pilot flame and piezoelectric ignition. Nominal flow rate: 9 kW Power supply: LPG / CNG LPG consumption: 0.669 kg/hour CNG consumption: 0.

  Installation Installation service: we install the device on site according to the manufacturer's instructions, connect to the line (mechanical connections) and perform initial setup and test run. Price depends on location, access and scope of work. (price by agreement / quote)

  No Yes

  Kokkuhoid: 0.00€

  379.00€

  379.00€

  Price without VAT

  305.65€

  305.65€

  To be ordered Delivery time: 21–35 business days

  To be ordered. This product is manufactured to order. The 14-day right of withdrawal does not apply (Law of Obligations Act § 56 (3) 1).

  Add to cart

  Request Quote

  Print
  Availability

  Out of Stock Pärnu

  0 pcs To be ordered

  Delivery

  14-30

  Shipping information

  Loading…
  Warranty 24 months

  To be ordered – right of return does not apply

  B2B invoice payment

  Spare parts from e-shop
• • Description
  • FAQ
  • Specifications

  • Description

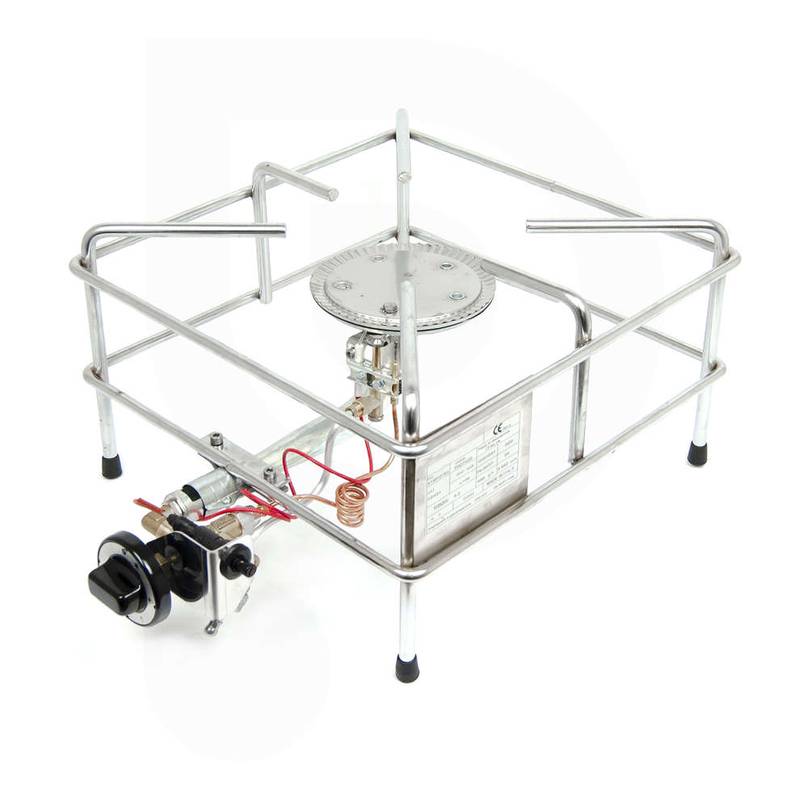

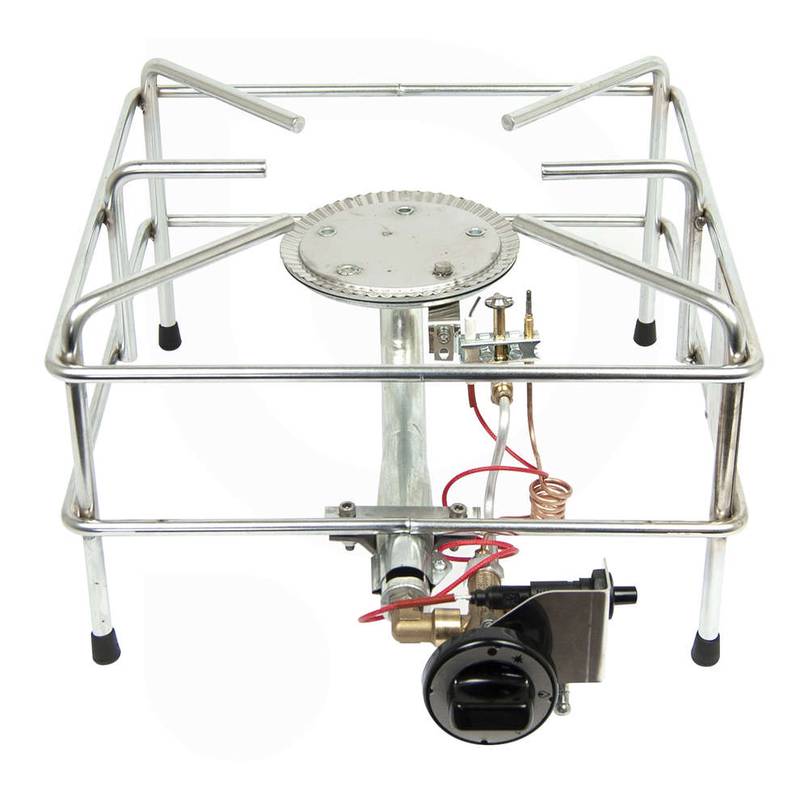

    Gas burner 9.2kW NEW CROMO PSP LPG/CNG

    Gas burner CROMO 9.2 kW PSP LPG / CNG

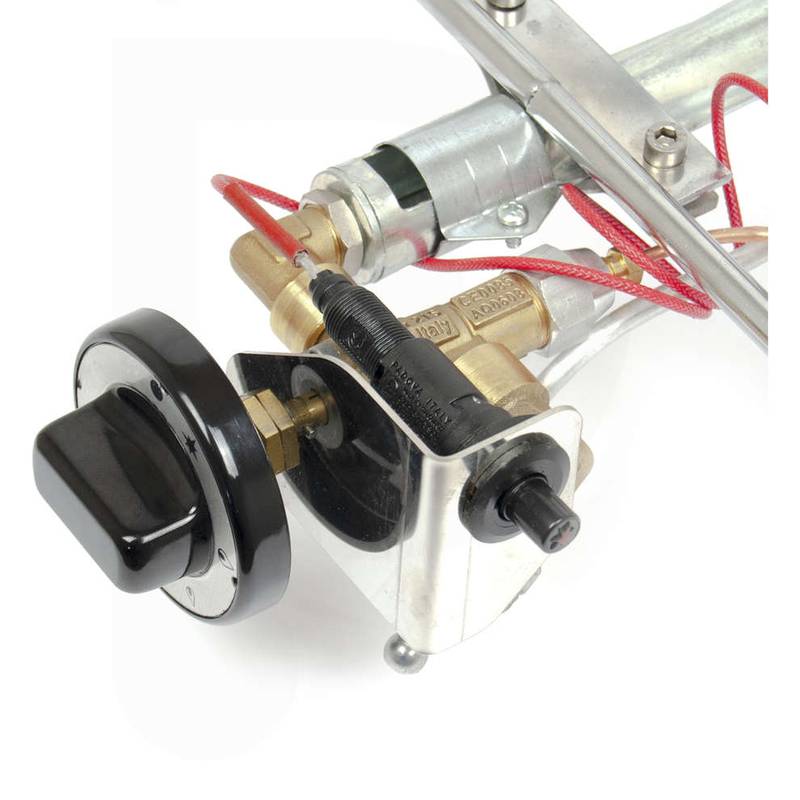

    Chromed steel gas burner with safety valve, pilot flame and piezoelectric ignition.

    • Nominal flow rate: 9 kW
    • Power supply: LPG / CNG
    • LPG consumption: 0.669 kg/hour
    • CNG consumption: 0.892 m³/h
    • LPG gas pressure: 28-30 / 37 mbar
    • CNG Gas Pressure: 20 mbar
    • LPG Gas Pressure GERMANY: 50 mbar
    • Material: chromed steel
    • Dimensions mm L×W×H: 400×400×240

    Features:

    • SAFETY: Automatically stops the gas flow in case of flame shutdown
    • PILOT: The pilot flame facilitates manual/remote temperature control

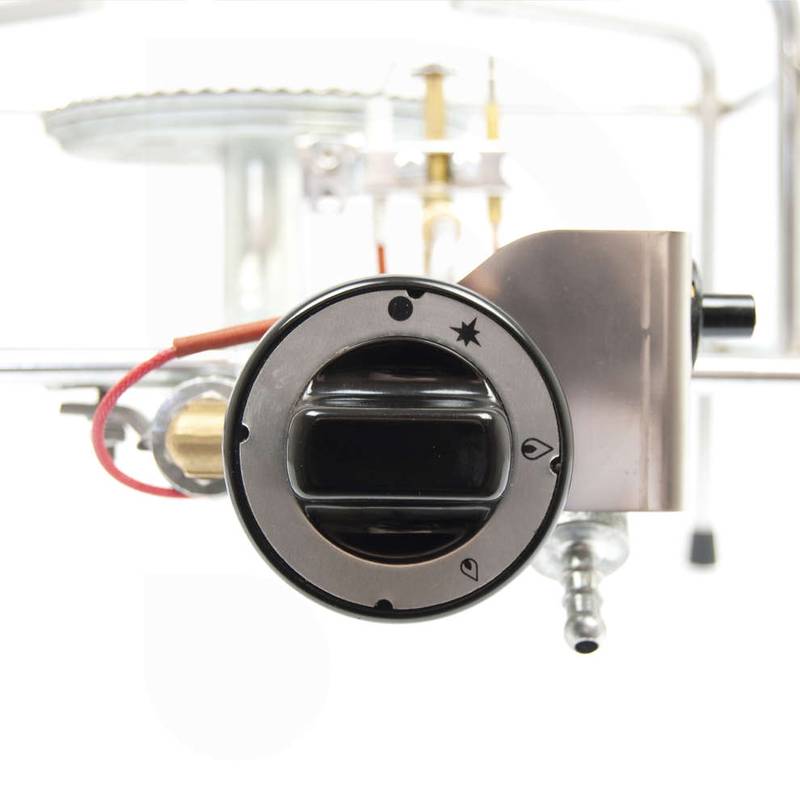

    • PIEZO: Comfortable ignition button

    Technical data:

    Dimensions in millimeters:
    A = 400 × 400
    B = 240
    C = 210
    D = 150

    ? Important: ? Lifting. Weight ~669kg — requires a forklift or 2 persons.

  • Frequently asked questions about FGP0091

    What fuels does this burner use?

    The CROMO 9.2 kW PSP burner works on both LPG (liquefied gas) and CNG (natural gas) power. Gas pressure requirements: LPG 28-30/37 mbar (in Germany 50 mbar) and CNG 20 mbar. For correct operation, make sure that the gas supply corresponds to these parameters.

    How does the security system work?

    The burner has an integrated safety valve that automatically shuts off the gas flow when the flame goes out. The thermocouple-based system prevents unburned gas leakage and ensures safe operation in both supervised and unsupervised installations.

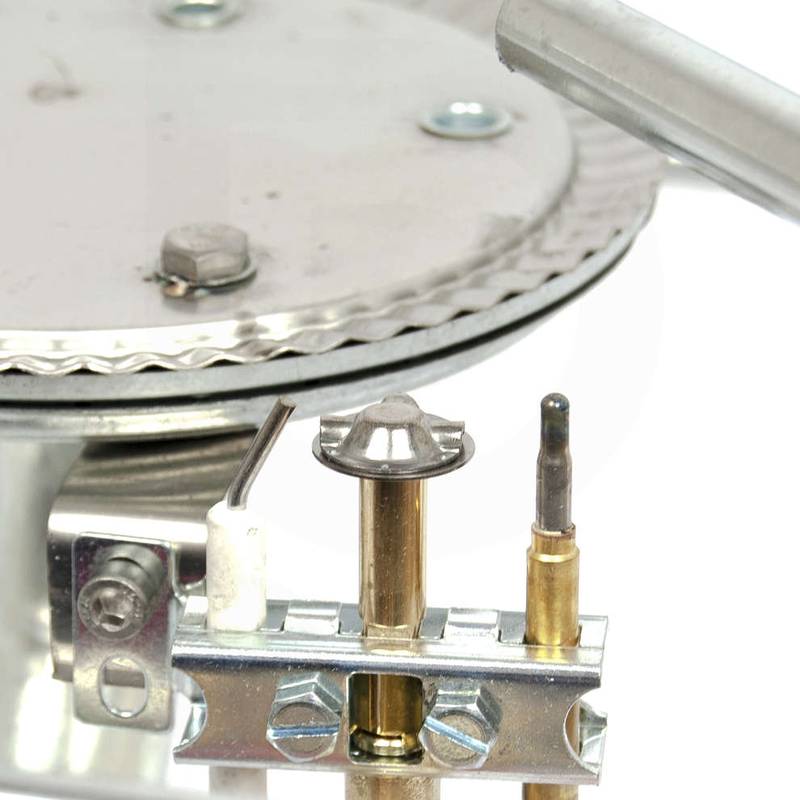

    What is the ignition flame for?

    The pilot flame maintains a small flame continuously, which allows convenient manual or remote control of the main power of the burner without repeated ignition. It also activates the safety thermocouple and ensures smooth flame modulation.

    Is the burner suitable for outdoor use?

    The chrome-plated steel construction offers good corrosion resistance, but the burner should be protected from rain, strong winds and direct exposure to the weather. In outdoor conditions, install it under a shelter or in a protected area to ensure stable operation and long service life.

    What are the overall dimensions?

    The external dimensions are 400×400×240 mm (L×W×H). Reference dimensions: A = 400×400 mm base plan, B = 240 mm total height, C = 210 mm and D = 150 mm. Compact dimensions allow placement under boilers, pots and processing vessels.

  • Specifications

    Length (mm)	400.00
    Width (mm)	400.00
    Height (mm)	240.00
    Weight (kg)	22.00
    Gross Weight (kg)	22.00
    Volume (ml)	10000.00
    Unit	pcs
    Power (W)	9
    Material	Stainless steel
    Certifications	CE
