AlcoEngine Gen2 Distiller - Copper Reflux Column, Quick Disconnects

AlcoEngine Gen2 is a durable and easy-to-use reflux distiller for home distillers who want to produce clean, neutral, high-alcohol spirits. This copper distiller uses innovative flow management technology that makes the distillation process simple and reliable, enabling the production of high-purity spirits.

Product Operating Principle

The reflux distiller works on the basis of evaporation and condensation. After heating, the liquid evaporates in the column, where part of the vapor condenses back and flows down the column, while purified vapor moves on to the condenser. This process repeats multiple times, separating alcohol and water and increasing the purity of the spirit. Flow control inserts regulate the output speed and reflux ratio, determining the purity level of the final product.

Flow Management Technology Advantages

AlcoEngine Gen2 does not require constant adjustment of water flow rate. The device directly controls the spirit flow, which means that as long as there is sufficient coolant in the cooling system, it does not matter how fast it flows through the condenser. This makes the distiller very easy and reliable to use, as you do not have to worry about water pressure fluctuations or pump cycling.

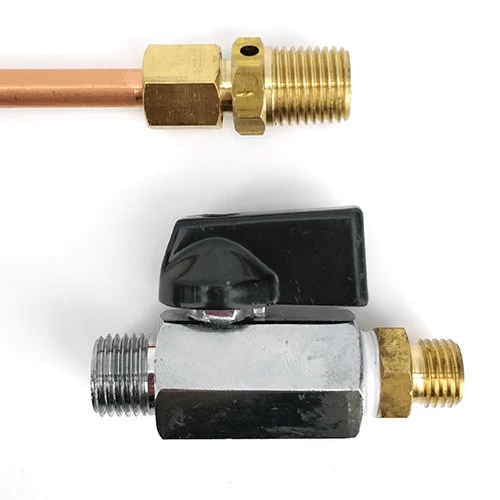

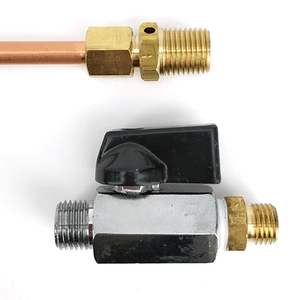

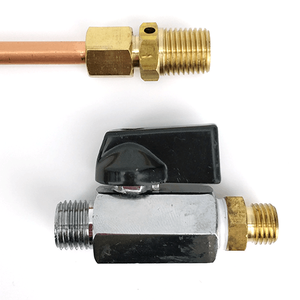

You can control the spirit purity with two included flow control inserts with 1.0 mm and 0.6 mm openings. A smaller opening slows down the spirit output speed and increases the reflux ratio, resulting in a higher purity final product. The 1.0 mm insert is well suited for initial stripping runs, while the 0.6 mm insert is ideal for final purification. You can also use the ball valve for manual adjustment, but this requires more skill, which is why we recommend using the included brass inserts.

Ease of Use

AlcoEngine Gen2 is designed to be a simple and safe distiller for home users. Our guarantee is that you will quickly achieve excellent results if you ensure that sufficient water or coolant flows through the condenser. The device operates reliably and most of the process happens automatically.

Compatibility with Various Boilers

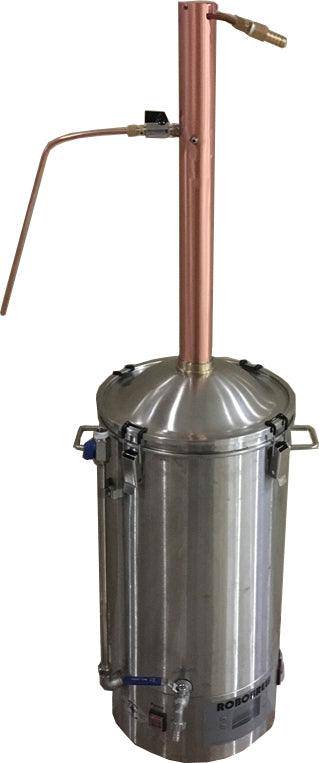

This distiller is compatible with many different boiler types. You can use a regular pot by drilling a 47 mm hole in the center of the lid. AlcoEngine Gen2 is also suitable for most standard distillation boilers. It can also be used on top of stainless steel kegs, creating a simple and durable keg boiler. Using a 50 mm tri-clover clamp, you can attach the distiller to the top of a 50-liter keg.

Pure Copper Advantages

Unlike stainless steel or only copper-plated distillers, AlcoEngine Gen2 is made entirely of pure copper. When hot vaporous spirit comes into contact with copper, the copper acts as a catalyst, removing sulfur compounds. This process reduces unpleasant taste and odor defects and produces a better quality final product. Copper is an expensive material that increases distiller production costs, but serious distillers still prefer it precisely because the results are noticeably better. A copper distiller lasts a lifetime and is an investment that pays off.

Simple Assembly and Setup

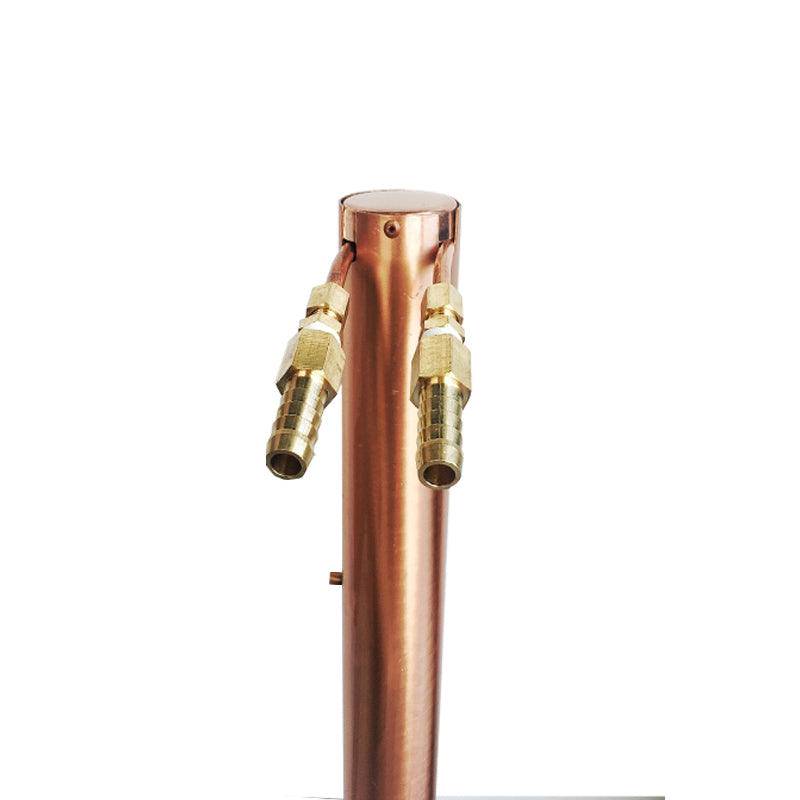

The distiller is mostly pre-assembled, but you need to connect the garden hose and cooling system yourself. You can use a regular garden hose, but it wastes a lot of tap water. We recommend using a tank of at least 500 liters together with a powerful recirculation pump. Suitable options include high-pressure pumps that you purchase separately. Note that the pump must be powerful enough, as pumping through the condenser requires high pressure. Pressure capability is more important than flow rate. When you receive the distiller, you only need Teflon tape to attach the connections as shown in the product images. Make sure all connections are properly secured and check for leaks before starting distillation.

Technical Specifications

• Made of lead-free brass
• Lead-free silver soldering
• Quality manufacturing
• Extremely easy to use
• Produces spirits with up to 96% alcohol content
• Australian design
• Copper reflux column for pure spirits

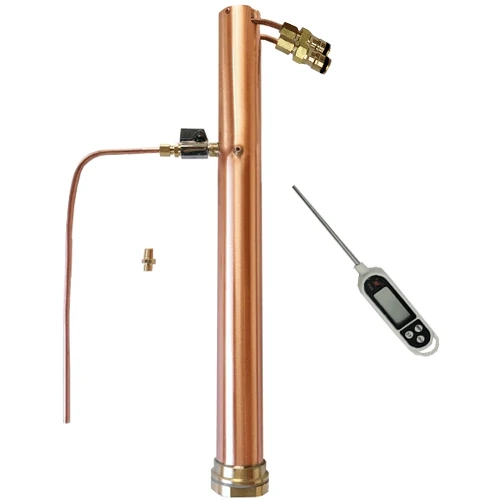

• Included flow control inserts (1.0 mm and 0.6 mm)
• Compatible with most boilers

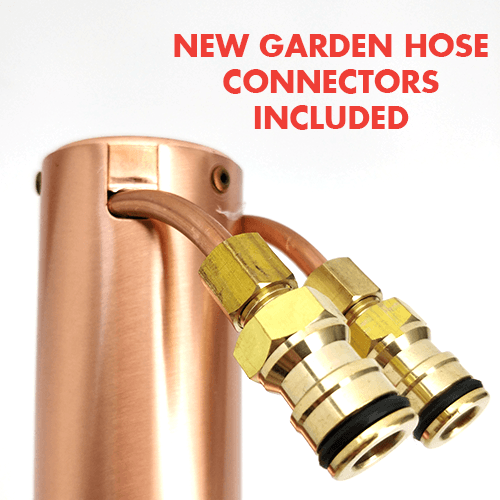

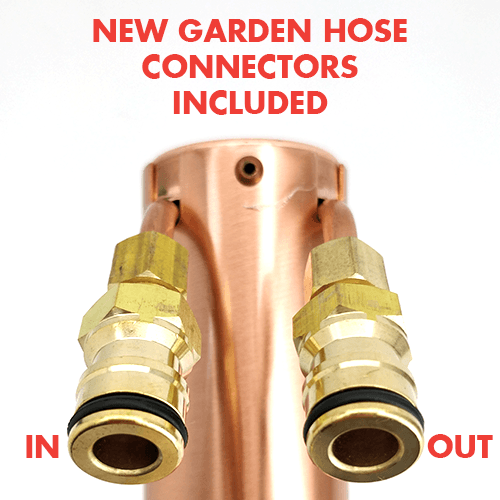

• Quick disconnects for hoses

Additional Equipment

Distillation lids for boilers:

• 35L standard distillation lid (47 mm opening)
• 65L standard distillation lid (47 mm opening)
• Pro 35L Tri-Clover distillation lid (50 mm TC) + 1 pc 50 mm tri-clover clamp
• Pro 65L Tri-Clover distillation lid (100 mm TC) + 1 pc 50 mm clamp + 1 pc 100 mm clamp + 100 mm x 50 mm concentric reducer + 100 mm silicone gasket

Recommendations

Distillation is a long process and if you want to automate it, you can use a temperature controller. This saves considerable time and allows precise temperature control throughout the distillation process.

If you want to distill even purer spirits even faster or want to filter spirits with activated carbon, you might consider purchasing a 50 mm tri-clover extension tube separately. This extension tube can be filled with copper or stainless steel balls. By increasing the reflux column volume, you can produce purer spirits and collect it faster.
