SKU: IPP0449

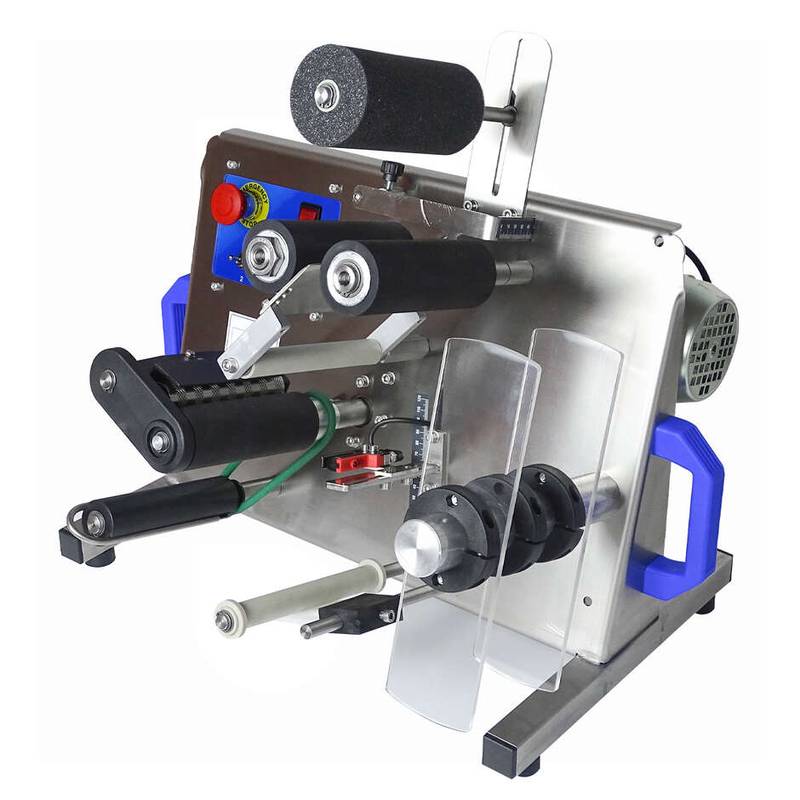

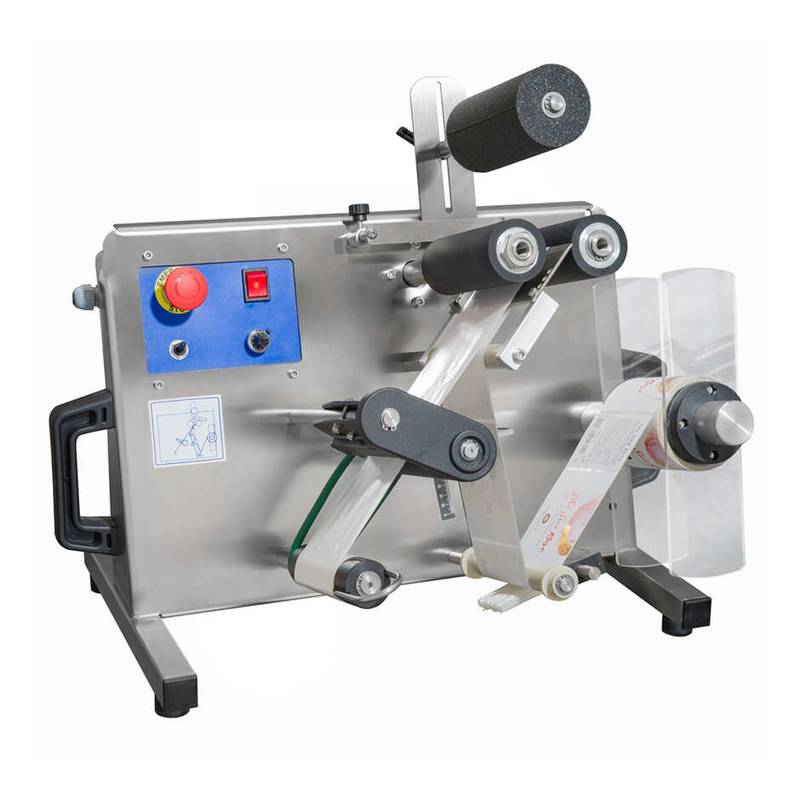

Labeling machine ETI 09 semi-automatic
Usage: The ETI 09 is a tabletop single-station labeling machine ideal for applying self-adhesive labels to cylindrical bottles and jars. Designed for small artisanal or business productions, it works with both glass and plastic containers. Features: Semi-automatic operation via pedal control. Stainless steel structure. Microprocessor.
Installation Installation service: we install the device on site according to the manufacturer's instructions, connect to the line (mechanical connections) and perform initial setup and test run. Price depends on location, access and scope of work. (price by agreement / quote)No Yes2590.00€
Price without VAT2088.71€
To be ordered Delivery time: 21–35 business daysTo be ordered. This product is manufactured to order. The 14-day right of withdrawal does not apply (Law of Obligations Act § 56 (3) 1).0Europe/Tallinnout_of_stock_products0AvailabilityOut of Stock Pärnu 0 pcs To be ordered Out of Stock Supplier warehouse 0 pcs To be ordered Delivery 14-30 Shipping informationLoading…Warranty 24 monthsTo be ordered – right of return does not applyB2B invoice paymentSpare parts from e-shop -
-
Description
Labeling machine ETI 09 semi-automatic
Usage: The ETI 09 is a tabletop single-station labeling machine ideal for applying self-adhesive labels to cylindrical bottles and jars. Designed for small artisanal or business productions, it works with both glass and plastic containers.

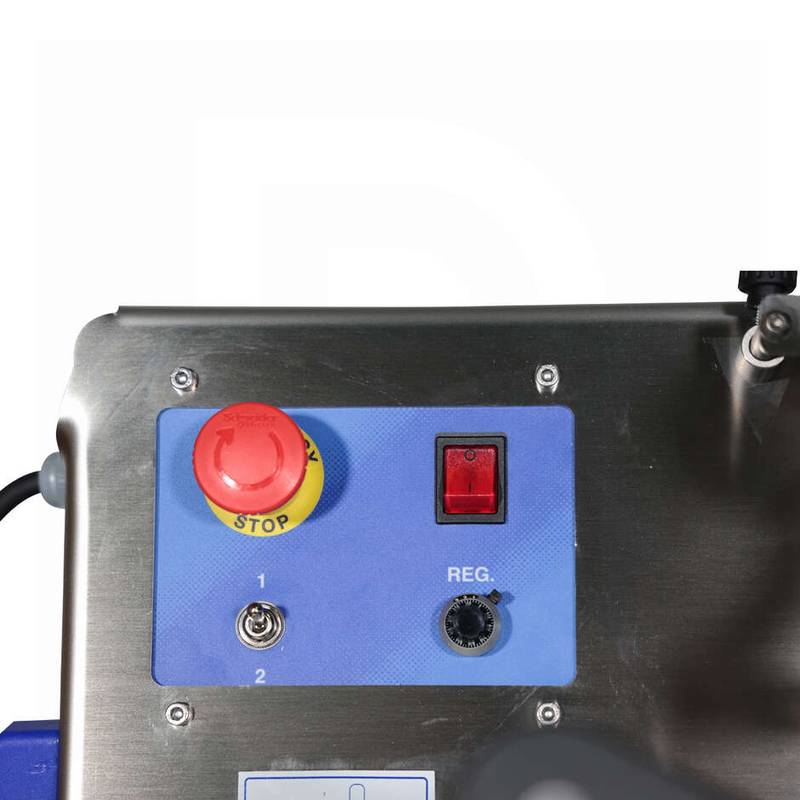

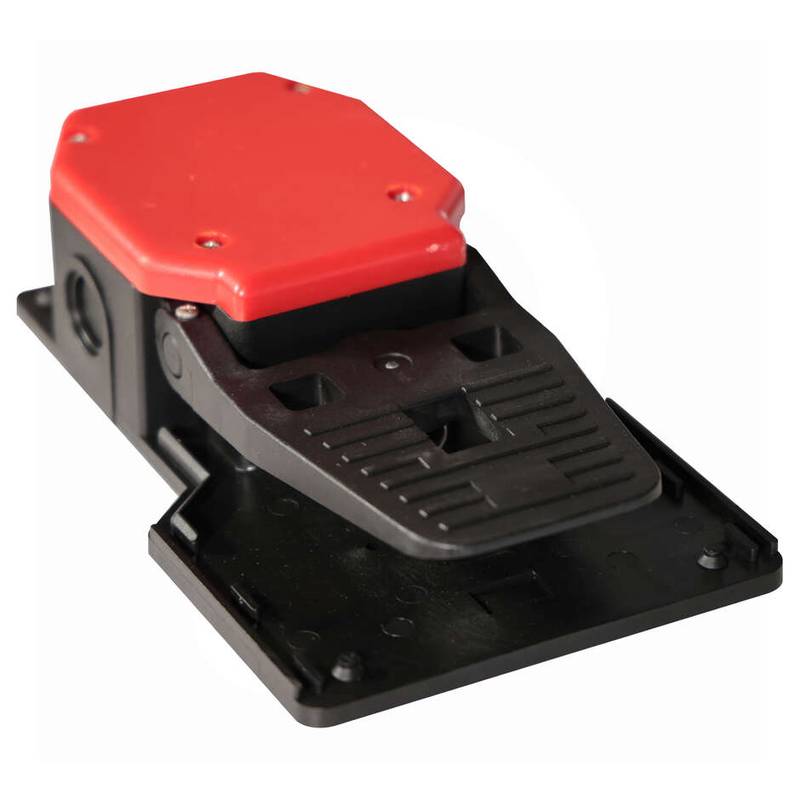

Features: Semi-automatic operation via pedal control. Stainless steel structure. Microprocessor electronic board control panel. Can apply both label and back label in a single cycle if alternately arranged on the same roll. CE safety standards compliant.
Technical data: Dimensions: 530 x 400 x 500(h) mm. Weight: 35 kg. Power supply: 230 V – 50 Hz (single-phase). Installed power: 0.2 kW. Hourly production: 800 bottles/h. Maximum label length without back label: 280 mm. Maximum paper support height for labels: 145 mm. Minimum label height: 15 mm. Bottle diameter (round): Min 60 mm - Max 120 mm. Maximum roll diameter: 270 mm. Maximum core diameter: 76 mm. Noise level: 40 decibels.
Warnings: The machine must be used on a table or wheeled cart. Designed to operate in covered industrial environments without condensation. Avoid temperatures < -10°C and > 40°C. Ambient lighting should be between 200-250 lumens.
-
Specifications
Length (mm) 530.00 Width (mm) 400.00 Height (mm) 500.00 Weight (kg) 35.00 Gross Weight (kg) 40.00 Unit pcs Diameter (mm) 60 Power (W) 0.2 Throughput 800kg/h Voltage 230 Temperature range 40°C – 40°C Certifications CE
PED
Product type Tablets
Weight (kg) 35kg Height (mm) 145mm
-
