  • Gas manifold 5-way 1/4" with 6mm barbs
    Gas manifold 5-way 1/4" with 6mm barbs
    Gas manifold 5-way 1/4" with 6mm barbs
    Gas manifold 5-way 1/4" with 6mm barbs
    Gas manifold 5-way 1/4" with 6mm barbs
    Gas manifold 5-way 1/4" with 6mm barbs
    Gas manifold 5-way 1/4" with 6mm barbs
    Gas manifold 5-way 1/4" with 6mm barbs
    Gas manifold 5-way 1/4" with 6mm barbs
    Gas manifold 5-way 1/4" with 6mm barbs
    Gas manifold 5-way 1/4" with 6mm barbs
    Gas manifold 5-way 1/4" with 6mm barbs

  • SKU: KL02585

    Gas manifold 5-way 1/4" with 6mm barbs

    Brand

    Professional gas manifold for splitting single gas line into 5 outputs. Rated to 100psi, includes ball valves with 1/4inch threads. Aluminium construction. | gas manifold, ball valve, gas distribution, kegging, 100psi, aluminium

    Installation Installation service: we install the device on site according to the manufacturer's instructions, connect to the line (mechanical connections) and perform initial setup and test run. Price depends on location, access and scope of work. (price by agreement / quote)
    No Yes

    39.95€

    Price without VAT

    32.22€

    To be ordered Delivery time: 21–35 business days
    To be ordered. This product is manufactured to order. The 14-day right of withdrawal does not apply (Law of Obligations Act § 56 (3) 1).
    Availability
    Out of Stock Pärnu 0 pcs To be ordered
    Delivery 7-14
    Shipping information
    Loading…
    Warranty 24 months
    To be ordered – right of return does not apply
    B2B invoice payment
    Spare parts from e-shop

    • Description

      Gas manifold 5-way 1/4" with 6mm barbs

      Usage: These gas manifolds provide an easy and convenient way to split a single gas line into multiple gas lines for kegging systems.

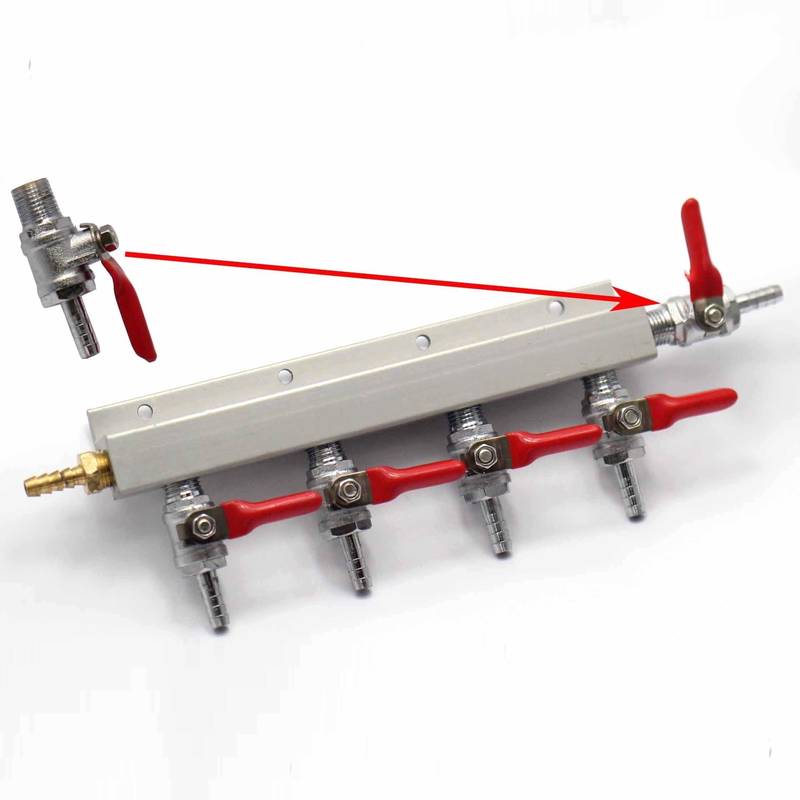

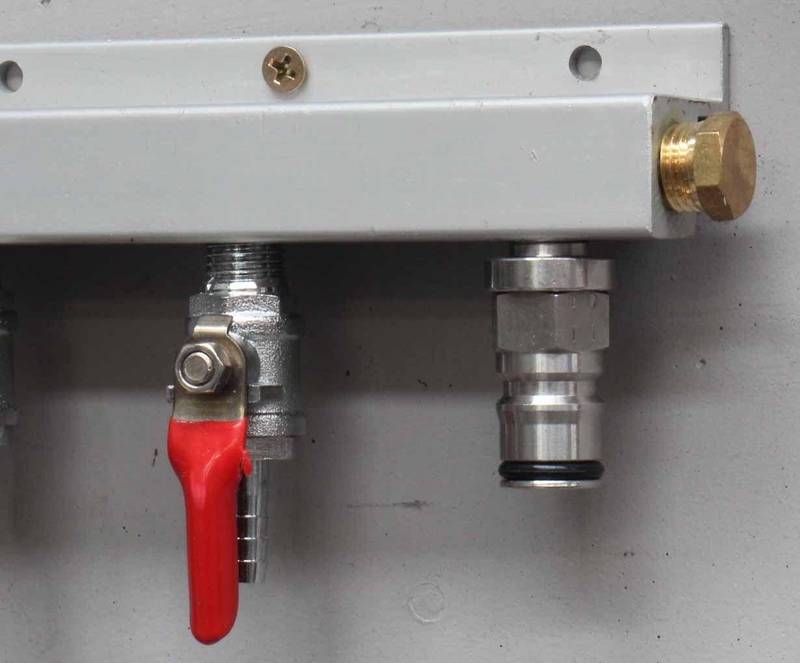

      Features: Rated to 100psi, includes 5 gas line outputs and 5 x 1/4inch ball valves that screw into the aluminium extrusion. Can be expanded to 6-way manifold by adding a 1/4 inch ball valve (part KL05173). Compatible with Gas Ball Lock Post with 1/4 Inch Bulkhead Assembly (part KL03179) for easy disconnect/reconnect capability. Also compatible with Duotight 8mm to 1/4" push-in fittings (KL06897).

      Technical data: Maximum pressure: 100psi (6.9 bar). Thread size: 1/4inch. Number of outputs: 5. Material: Aluminium extrusion. Note: Due to check valve mechanism, there is approximately 2 psi pressure drop across the ball valves.

      ⚠️ Important: This product is designed for gas use only and is not suitable for beer or other beverages. Set regulator pressure approximately 2 psi higher than desired keg pressure to compensate for pressure drop.

      ⚠️ Pressure vessel — pressurized use. Max 100psi (6.9 bar). Exceeding working pressure may cause deformation. Use a pressure gauge.

    • Specifications

      Length (mm)600.00
      Width (mm)400.00
      Height (mm)400.00
      Weight (kg)0.66
      Gross Weight (kg)0.79
      Unitpcs
      Connection size1/4"
      Certifications

      CE

      Material

      Aluminium

      Food compliance

      Acid-resistant

      Lead-free

      Cadmium-free

      Heavy metals compliant

      Compliant EU 1935/2004

      Compliant EU 10/2011

      Food contact certified
