• SKU: KL39031

  Condenser 3" TC PolyPhoenix modular hammerhead/vertical PPSU



  Professional modular distillation condenser made from PPSU (heat-resistant up to 200°C, chemical-resistant, transparent). Kit includes corrugated stainless condenser, extensions, tee piece, clamps, seals, sight glass, and connectors. Suitable for horizontal and vertical configurations. | distillation condenser, PPSU, modular distillation, stainless steel condenser, 3" TC, hammerhead configuration

  Installation Installation service: we install the device on site according to the manufacturer's instructions, connect to the line (mechanical connections) and perform initial setup and test run. Price depends on location, access and scope of work. (price by agreement / quote)

  No Yes

  Kokkuhoid: 0.00€

  219.00€

  219.00€

  Price without VAT

  176.61€

  176.61€

  To be ordered Delivery time: 21–35 business days

  To be ordered. This product is manufactured to order. The 14-day right of withdrawal does not apply (Law of Obligations Act § 56 (3) 1).

  Add to cart

  Request Quote

  Print
  Availability

  Out of Stock Pärnu

  0 pcs To be ordered

  Delivery

  7-14

  Shipping information

  Loading…
  Warranty 24 months

  To be ordered – right of return does not apply

  B2B invoice payment

  Spare parts from e-shop
• • Description
  • FAQ
  • Specifications

  • Description

    Condenser 3" TC PolyPhoenix modular hammerhead/vertical PPSU

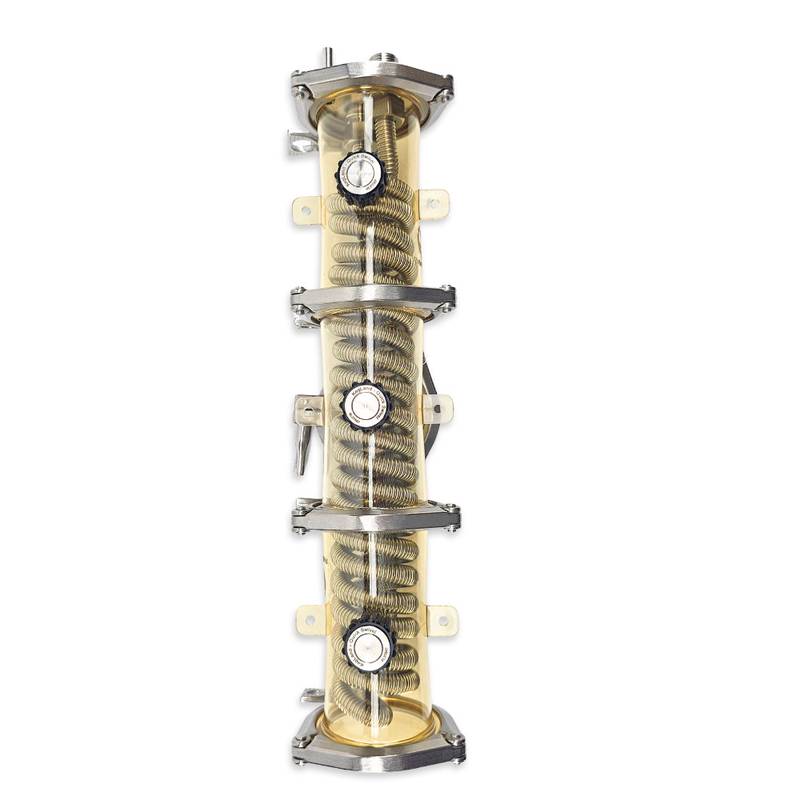

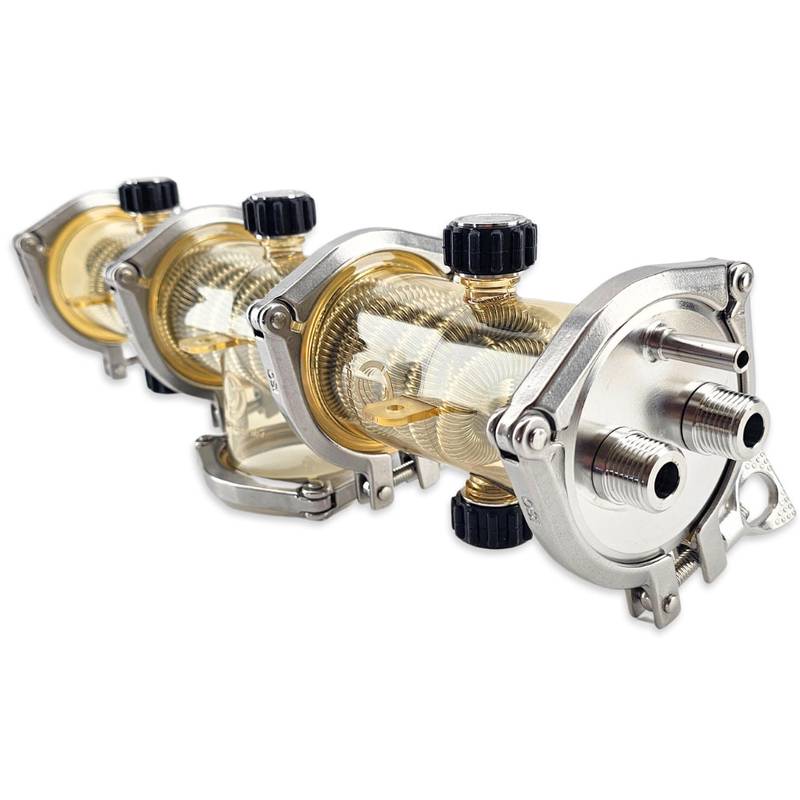

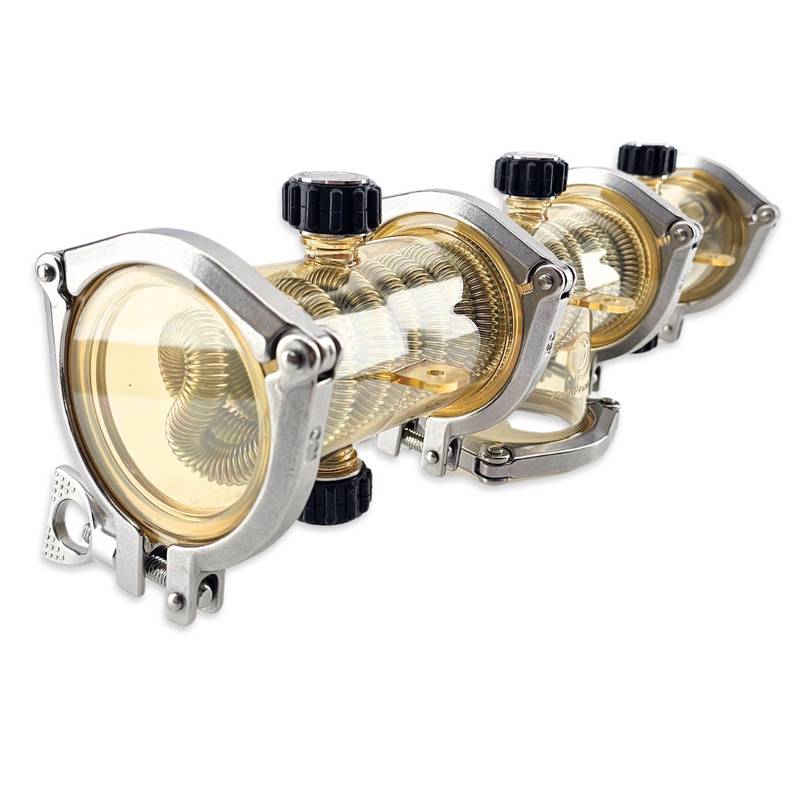

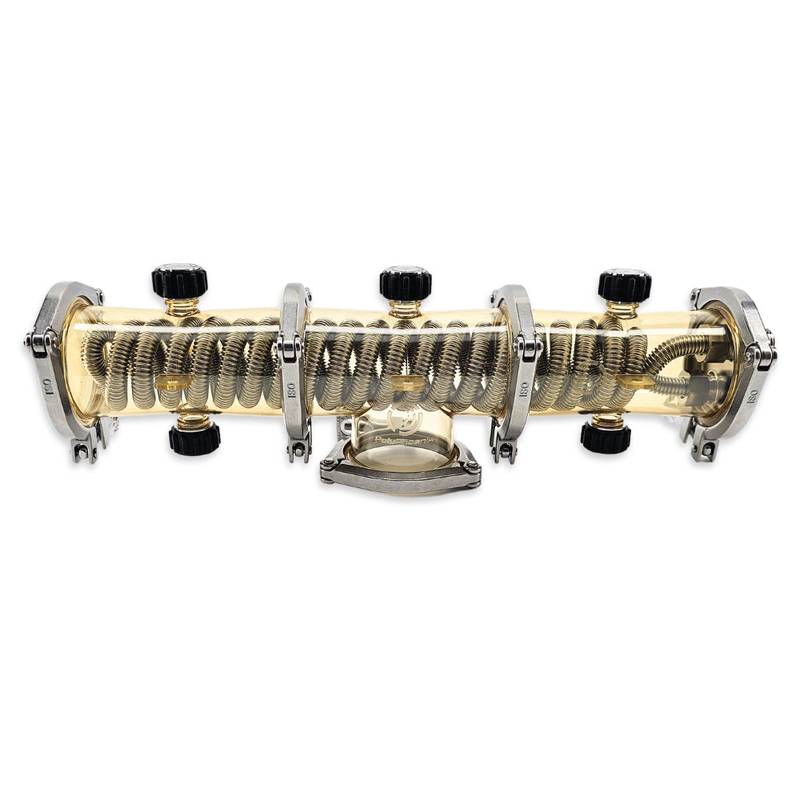

    Usage: The PolyPhoenix Condenser can be used in multiple configurations for your distillation setup. Most commonly it is used in the hammerhead configuration (horizontal), but it can also be used vertically with some quick adjustments to the 3" TC housings.

    Features: Primarily made from PPSU material, which is 100% safe with hot alcohol vapour and will not leech any chemicals into your product. PPSU offers exceptional chemical resistance, withstands temperatures up to 200°C, and is extremely impact resistant. The material is transparent, allowing for intricate injection-molded parts that would be nearly impossible to produce in stainless steel or lab-grade glass.

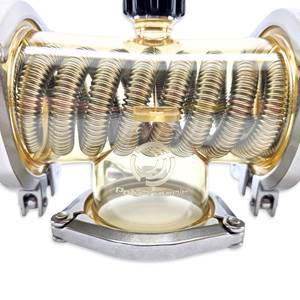

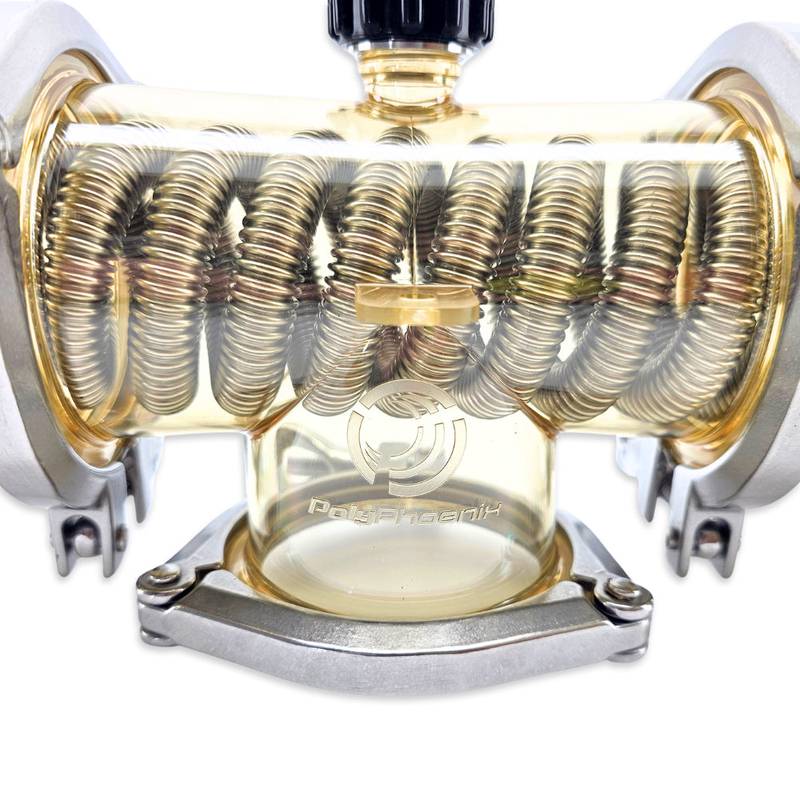

    Technical data: This premade kit contains: 1× Corrugated Stainless Condenser with 3" TC Plate (2× 1/2" holes and 6.35mm breather tube), 2× Straight Extension PPSU 3" TC, 1× Tee Piece PPSU 3" TC, 5× 3" TC Clamp (3 segments), 5× 3" TC Beaded Seal (Silicone), 1× 3" TC PPSU Sight Glass/End Cap, 5× Quick Swivel Connector 1/2" × Stainless Steel End Cap (18mm).

    ⚠️ Important: Different plant extracts, tinctures or liquids may damage plastic with prolonged exposure. Checking the compatibility of the packaging and solution is the responsibility of the filler/manufacturer.

    ⚠️ Safety Information: Use personal protective equipment (gloves, safety glasses). Follow dilution ratios precisely. Do not mix cleaning agents. Rinse surfaces before food contact. Keep out of reach of children.

  • Frequently Asked Questions

    What is a hammerhead condenser?

    A hammerhead condenser is a vertical cooling system with a compact design suitable for modular distillation systems. The PPSU material ensures chemical resistance.

    What is PPSU material?

    PPSU (polyphenylsulfone) is an engineering plastic with high temperature tolerance and chemical resistance, excellent for distillation equipment.

    Is it compatible with the PolyPhoenix system?

    Yes, the condenser features a 3" TC connection and is fully compatible with the PolyPhoenix modular system.

  • Specifications

    Length (mm)	600.00
    Width (mm)	400.00
    Height (mm)	400.00
    Weight (kg)	4.00
    Gross Weight (kg)	5.00
    Unit	pcs
    Temperature range	200°C – 200°C
    Connection size	1/2"
    Certifications	CE
    Product type	Distiller
