    Kit ⌀515 air floating lid stainless steel

    Brand

    Complete air floating lid kit for wine tanks with 525–545 mm internal diameter. Includes stainless steel lid, pump with manometer, air chamber, and all accessories for airtight wine storage.

    Installation Installation service: we install the device on site according to the manufacturer's instructions, connect to the line (mechanical connections) and perform initial setup and test run. Price depends on location, access and scope of work. (price by agreement / quote)
    No Yes

    179.00€

    Price without VAT

    144.35€

    To be ordered Delivery time: 21–35 business days
    To be ordered. This product is manufactured to order. The 14-day right of withdrawal does not apply (Law of Obligations Act § 56 (3) 1).
    Availability
    Out of Stock Pärnu 0 pcs To be ordered
    Delivery 14-30
    Shipping information
    Loading…
    Warranty 24 months
    To be ordered – right of return does not apply
    B2B invoice payment
    Spare parts from e-shop

    • Description

      Kit ⌀515 air floating lid stainless steel

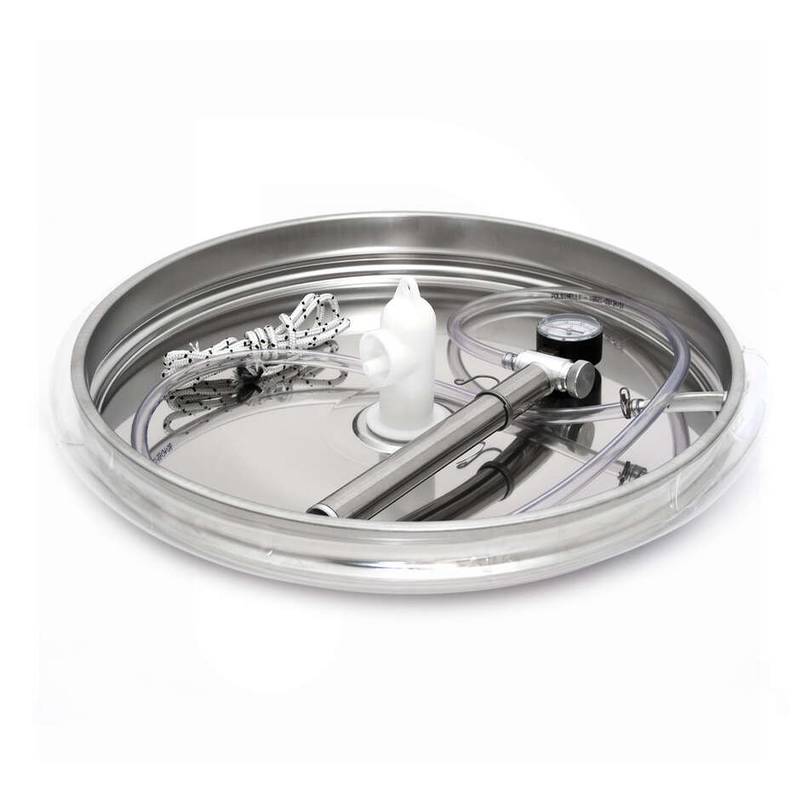

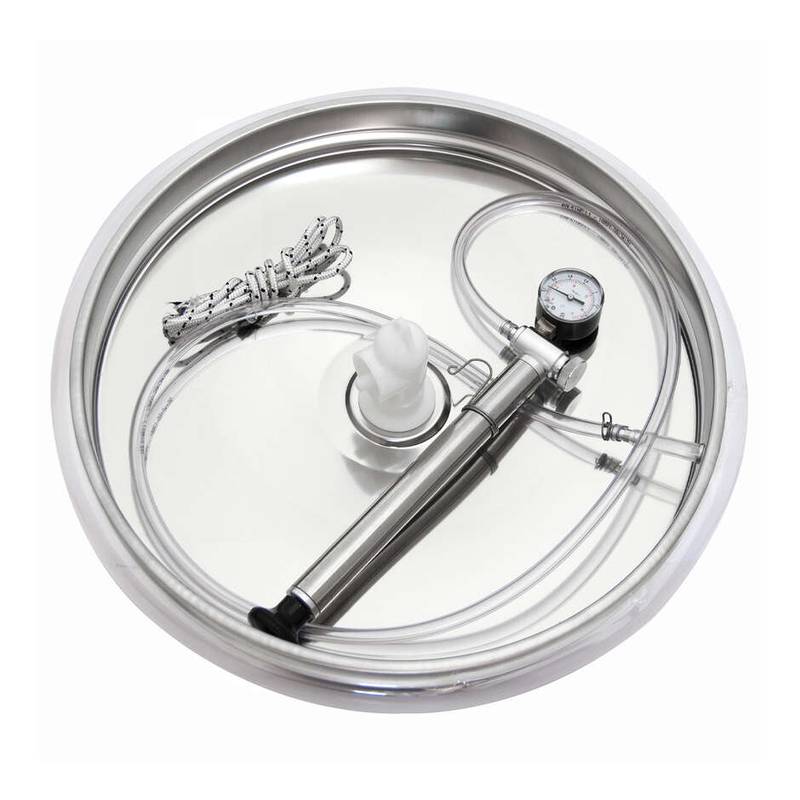

      Air floating lid kit ⌀515 mm for tanks with internal diameters from 525 to 545 mm

      It includes:

      • a stainless steel floating lid ⌀515 mm
      • an air chamber for food use
      • a stainless steel pump with analog manometer
      • clamps
      • recovery rope
      • air tube
      • vent valve with sealings

      Proper use of floating air lids:

      1. always fully fill the tank with wine
      2. place the stainless steel float lid on the surface of the wine
      3. unscrew the valve on the pump to allow inflation
      4. inflate the tube to about 0.7 atm
      5. check that the tube is tight against the inner surface of the tank and close the valve of the pump
      6. you should check the air pressure every 15 days.

      If the tube does not maintain the pressure, please check:

      1. that there are no holes
      2. the attachment between the air chamber and plastic tube
      3. that the air hose clamps are not loose
      4. that the gauge is not broken
      5. if the pump valve is not working

    • Specifications

      Length (mm)515.00
      Width (mm)515.00
      Height (mm)400.00
      Gross Weight (kg)12.00
      Unitpcs
      Diameter (mm)515
      Kogus (tk)1
      Certifications

      CE

      Material

      Stainless steel

      Airtighttrue
