• SKU: SIR0247

  Floating lid kit ⌀480mm air stainless steel

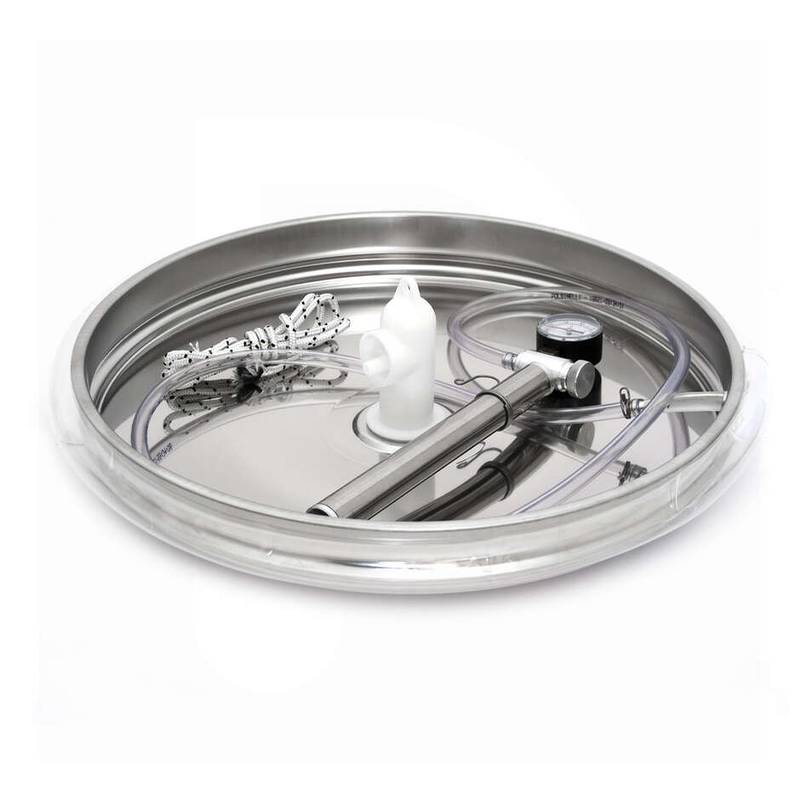

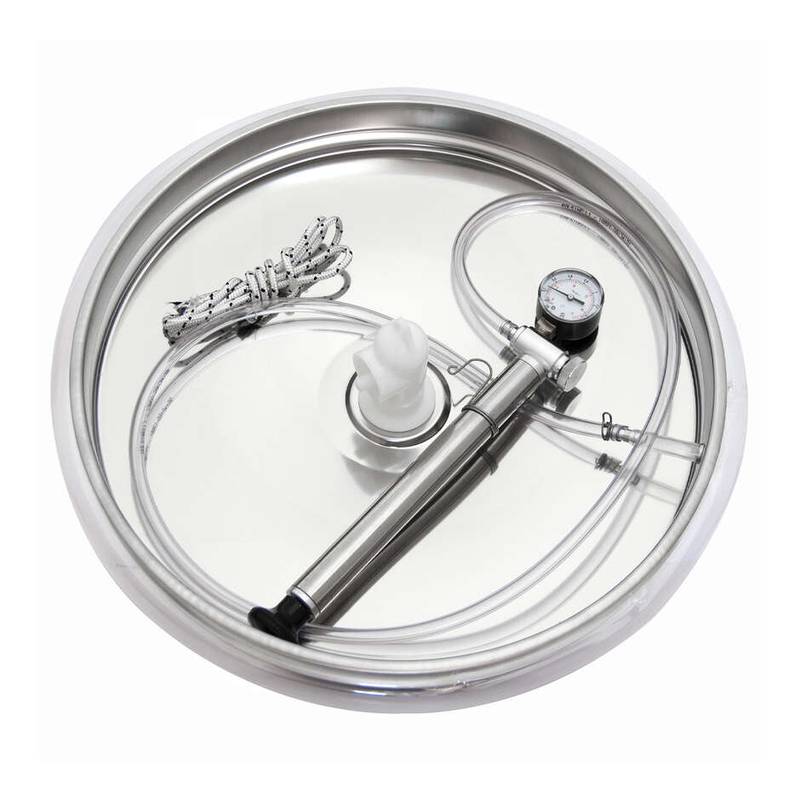

  Complete air floating lid kit ⌀ 480 mm for wine tanks with internal diameters 490–510 mm. Includes stainless steel lid, air chamber, pump with manometer, and all accessories for airtight wine storage.

  Installation Installation service: we install the device on site according to the manufacturer's instructions, connect to the line (mechanical connections) and perform initial setup and test run. Price depends on location, access and scope of work. (price by agreement / quote)

  No Yes

  Kokkuhoid: 0.00€

  179.00€

  179.00€

  Price without VAT

  144.35€

  144.35€

  To be ordered Delivery time: 21–35 business days

  To be ordered. This product is manufactured to order. The 14-day right of withdrawal does not apply (Law of Obligations Act § 56 (3) 1).

  Add to cart

  Request Quote

  Print
  Availability

  Out of Stock Pärnu

  0 pcs To be ordered

  Delivery

  14-30

  Shipping information

  Loading…
  Warranty 24 months

  To be ordered – right of return does not apply

  B2B invoice payment

  Spare parts from e-shop
• • Description
  • Specifications

  • Description

    Floating lid kit ⌀480mm air stainless steel

    Usage: Complete air floating lid kit for wine storage tanks, designed for tanks with internal diameters from 490 to 510 mm. Protects wine from oxidation by creating an airtight seal on the liquid surface.

    Features:

    • Stainless steel floating lid ⌀ 480 mm
    • Food-grade air chamber
    • Stainless steel pump with analog manometer
    • Clamps and recovery rope
    • Air tube
    • Vent valve with sealings

    Proper use of air floating lids:

    • Always fully fill the tank with wine
    • Place the stainless steel floating lid on the surface of the wine
    • Unscrew the valve on the pump to allow inflation
    • Inflate the tube to approximately 0,7 atm
    • Check that the tube is tight against the inner surface of the tank and close the pump valve
    • Check the air pressure every 15 days

    Warnings: If the tube does not maintain pressure, check for holes, verify the attachment between air chamber and plastic tube, ensure air hose clamps are not loose, confirm the gauge is not broken, and check if the pump valve is functioning properly.

  • Specifications

    Length (mm)	480.00
    Width (mm)	480.00
    Height (mm)	400.00
    Gross Weight (kg)	15.00
    Unit	pcs
    Diameter (mm)	480
    Kogus (tk)	1
    Certifications	CE
    Material	Stainless steel
    Airtight	true
