  • Micro Filling Systems 4-Head Bottling System 500pdl/h 5bar
    Micro Filling Systems 4-Head Bottling System 500pdl/h 5bar
    ▶

  • SKU: 9000723

    EAN: 2000000018379

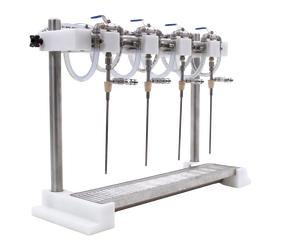

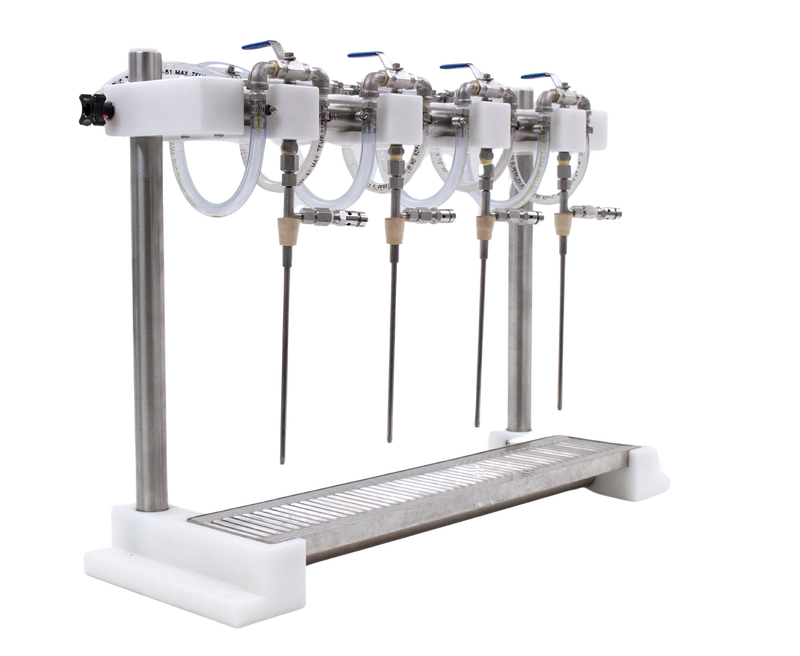

    Micro Filling Systems 4-Head Bottling System 500pdl/h 5bar

    Isobaric Four-Bottle Filling Device - Professional Solution for Beverage Filling Versatile filling device made of stainless steel AISI 304 and food grade PP plastic, ideal for filling sparkling wines, soft drinks, and beer into both glass and PET bottles.

    Installation Installation service: we install the device on site according to the manufacturer's instructions, connect to the line (mechanical connections) and perform initial setup and test run. Price depends on location, access and scope of work. (price by agreement / quote)
    No Yes

    4046.00€

    Price without VAT

    3262.90€

    To be ordered Delivery time: 21–35 business days
    To be ordered. This product is manufactured to order. The 14-day right of withdrawal does not apply (Law of Obligations Act § 56 (3) 1).
    Availability
    Out of Stock Pärnu 0 pcs To be ordered
    Shipping information
    Loading…
    Warranty 24 months
    To be ordered – right of return does not apply
    B2B invoice payment
    Spare parts from e-shop

    • Description

      Isobaric Four-Bottle Filling Device - Professional Solution for Beverage Filling

      Versatile filling device made of stainless steel AISI 304 and food grade PP plastic, ideal for filling sparkling wines, soft drinks, and beer into both glass and PET bottles.

      Technical Specifications:

      • Filling capacity: 300-500 bottles per hour (0.35-0.65l bottles)
      • Optimal filling speed at 2.5 bar: approximately 200 bottles per hour
      • Maximum working pressure: 5.5 bar

      Main Features:

      • Stainless steel filling valves and triple valves
      • Removable stainless steel drip tray with grid
      • HDPE plastic adjustable height setting
      • Food industry standard pipe fittings and hoses
      • Adaptable for different bottle sizes

      Operating Instructions:

      The filling process occurs in two stages:

      1. CO2 filling: turning the valve to one side
      2. Liquid filling: turning the valve to the other side
      3. Completing the process: turning the valve to middle position

      Filling efficiency depends on beverage properties, pressure, bottle sizes, temperature, and user experience. The device is easy to maintain and clean thanks to removable parts.

    • Frequently asked questions about 9000723

      What bottles can be filled with this device?

      The device is designed for both glass and PET bottles with a volume of 0.35-0.65 L. The adjustable height of HDPE allows you to quickly adapt the device to different bottle sizes, suitable for bottling sparkling wines, soft drinks and beer.

      What is the real productivity per hour?

      The nominal capacity is 300-500 bottles per hour. At an optimal pressure of 2.5 bar, the real productivity is approximately 200 bottles per hour. The actual result depends on the characteristics of the drink, pressure, bottle size, temperature and user experience.

      Is the device suitable for the food industry?

      Yes. The device is made of AISI 304 stainless steel and food grade PP plastic. All connections and hoses meet food industry standards, ensuring safe bottling of beverages.

      How does isobaric bottling work?

      Bottling takes place in two stages: first, CO2 is forced into the bottle by turning the valve to one side, then the liquid is introduced into the bottle by turning the valve to the other side. The center position ends the cycle. This method preserves the carbonation of carbonated drinks.

      How easy is the device to clean?

      The drip tray, grate and main components are removable, which greatly simplifies cleaning and daily maintenance. Stainless steel surfaces are hygienic and resistant to cleaning agents used in the beverage industry.

    • Specifications

      Length (mm)600.00
      Width (mm)400.00
      Height (mm)400.00
      Gross Weight (kg)21.00
      Volume (ml)1.00
      Unitpcs
      Pressure (bar)2.5
      Certifications

      CE

      Material

      Stainless steel

      Plastic

      Glass

      Volume (L)0.65
