  • Conical tank 200L with cooling shirt 60°cone base

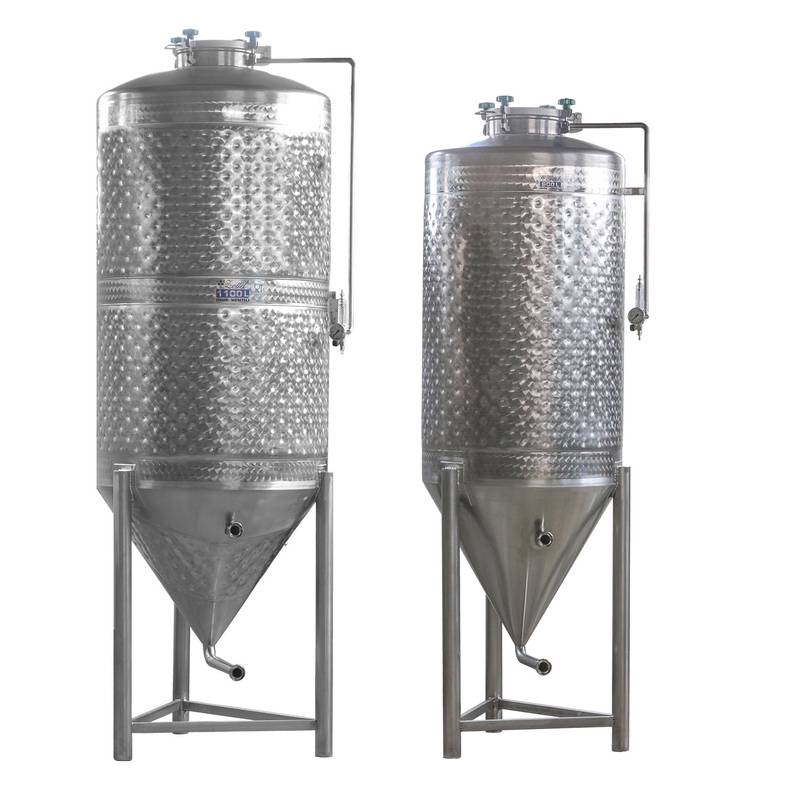

    Conical tank 200L with cooling shirt 60°cone base

  • SKU: 9000917

    EAN: 2000000020549

    Conical tank 200L with cooling shirt 60°cone base

    Brand

    Professional Stainless Steel Conical Tank for Beer Fermentation - Quality Brewing Equipment High-quality stainless steel conical tank ensures optimal beer fermentation process. Made from durable 2mm EN 1.4301 (AISI 304) stainless steel, perfectly meeting food industry requirements.

    Installation Installation service: we install the device on site according to the manufacturer's instructions, connect to the line (mechanical connections) and perform initial setup and test run. Price depends on location, access and scope of work. (price by agreement / quote)
    No Yes

    4200.00€

    Price without VAT

    3387.10€

    To be ordered Delivery time: 21–35 business days
    To be ordered. This product is manufactured to order. The 14-day right of withdrawal does not apply (Law of Obligations Act § 56 (3) 1).
    Availability
    Out of Stock Pärnu 0 pcs To be ordered
    Shipping information
    Loading…
    Warranty 24 months
    To be ordered – right of return does not apply
    B2B invoice payment
    Spare parts from e-shop

    • Description

      Professional Stainless Steel Conical Tank for Beer Fermentation - Quality Brewing Equipment

      High-quality stainless steel conical tank ensures optimal beer fermentation process. Made from durable 2mm EN 1.4301 (AISI 304) stainless steel, perfectly meeting food industry requirements.

      Technical Specifications:

      • Conical bottom at 60° angle
      • Maximum working pressure: 2.5 bar
      • Durable construction for professional use

      Standard Equipment:

      • Precise pressure valve (max 2.5 bar)
      • Integrated thermometer for temperature monitoring
      • Efficient rotating CIP cleaning head
      • Bottom outlet DN40
      • Center outlet DN25 in cone
      • Convenient top hatch (Ø300mm)

      Available Accessories:

      • Precise level sensor for liquid level monitoring
      • Adjustable feet for stable installation
      • Professional outlet valve
      • Reliable drain valve
      • Practical bottom cleaning hatch
      • Efficient insulation layer

      Note: Actual tank size may vary up to 10% due to technological reasons.

    • Frequently asked questions about this product

      Why does the 60° conical bottom help fermentation?

      The steep cone collects yeast and sediment at the lowest point, so you can draw off trub through the cone outlet and harvest yeast cleanly, leaving clearer beer above.

      What do the two outlets do?

      The DN40 bottom outlet is for emptying and racking, while the DN25 centre outlet in the cone lets you dump settled yeast and sediment separately without disturbing the rest of the batch.

      How is it cleaned?

      The integrated rotating CIP head sprays the interior for clean-in-place washing through the top hatch. This reaches surfaces you cannot scrub by hand and is the practical way to sanitize a sealed tank.

      What pressure limit must I respect?

      Its maximum working pressure is 2.5 bar and it carries a pressure valve set to that limit. Never exceed it, and use the integrated thermometer to keep fermentation in the right temperature range.

    • Specifications

      Length (mm)636.00
      Width (mm)636.00
      Height (mm)1750.00
      Weight (kg)65.00
      Gross Weight (kg)86.00
      Volume (ml)200000.00
      Unitpcs
      Pressure (bar)2.5
      Material

      Stainless steel

      Product type

      Conical tank

      Volume (L)200
