  • Electronic linear weigher K1D for frozen berries

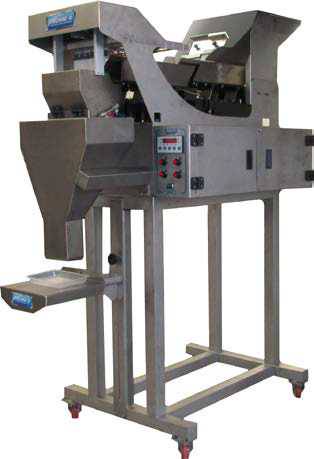

    Electronic linear weigher K1D for frozen berries

  • SKU: 9000993

    EAN: 2000000021300

    Electronic linear weigher K1D for frozen berries

    Precise dosing and weighing system for industrial packaging Advanced stainless steel dosing station for professional production, equipped with 50 pre-programmed weighing modes. Technical features: Integrated dispenser and precision scale 50 pre-programmed weighing programs Stainless steel dosing basket 4 vibration channels: 2 channels for larger particles 2 channels for smaller particles

    Installation Installation service: we install the device on site according to the manufacturer's instructions, connect to the line (mechanical connections) and perform initial setup and test run. Price depends on location, access and scope of work. (price by agreement / quote)
    No Yes

    19204.00€

    Price without VAT

    15487.10€

    To be ordered Delivery time: 21–35 business days
    To be ordered. This product is manufactured to order. The 14-day right of withdrawal does not apply (Law of Obligations Act § 56 (3) 1).
    Availability
    Out of Stock Pärnu 0 pcs To be ordered
    Shipping information
    Loading…
    Warranty 24 months
    To be ordered – right of return does not apply
    B2B invoice payment
    Spare parts from e-shop

    • Description

      Precise dosing and weighing system for industrial packaging

      Advanced stainless steel dosing station for professional production, equipped with 50 pre-programmed weighing modes.

      Technical features:

      • Integrated dispenser and precision scale
      • 50 pre-programmed weighing programs
      • Stainless steel dosing basket
      • 4 vibration channels:
        • 2 channels for larger particles
        • 2 channels for smaller particles
      • Stainless steel container for raw materials
      • Automatic anti-sticking protection with 2 photocells
      • Stainless steel discharge pipe (Ø110mm)
      • Adjustable raw material dosing valve

      User-friendly features:

      • Dosing pedal with yellow PVC safety strap
      • Robust construction (50x50x2 piping)
      • 4 rotating wheels with brakes
      • Manually adjustable package height and depth
      • Professional CEE control center with technical drawings

      Total equipment weight: 190 kg

    • Frequently asked questions about this product

      Why does the K1D have four vibration channels?

      Two channels are tuned for larger particles and two for smaller ones, so mixed berry sizes feed evenly toward the target weight. This improves dosing accuracy on irregular frozen fruit.

      How does it stop frozen berries from sticking?

      It uses automatic anti-sticking protection with two photocells that monitor flow and clear blockages. This keeps clumping frozen berries moving for consistent weights.

      Can it store recipes for different pack weights?

      Yes, it holds 50 pre-programmed weighing modes that you can recall per product. Switching between pack sizes is therefore quick.

      What discharge and dosing control does it have?

      It has a stainless steel discharge pipe of Ø110 mm and an adjustable raw-material dosing valve. Together they let you tune flow to the product.

      Is the station easy to position and operate?

      It runs from a dosing pedal with a yellow PVC safety strap and rolls on four braked wheels. Pack height and depth adjust manually to your container.

    • Specifications

      Length (mm)600.00
      Width (mm)400.00
      Height (mm)400.00
      Weight (kg)190.00
      Gross Weight (kg)216.00
      Unitpcs
      Material

      Stainless steel

      Plastic
