  • Conical tank 200L conic 60°

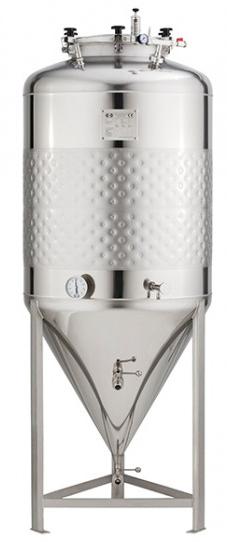

    Conical tank 200L conic 60°

  • SKU: 9001091

    EAN: 2000000022284

    Conical tank 200L conic 60°

    Brand

    Stainless Steel Conical Tank for Wine and Juice Fermentation 2.5bar High-quality stainless steel conical tank ideal for pressure fermentation and storage of wine and juice. Made from 2mm EN 1.4301 (AISI 304) stainless steel, ensuring durability and hygiene.

    Installation Installation service: we install the device on site according to the manufacturer's instructions, connect to the line (mechanical connections) and perform initial setup and test run. Price depends on location, access and scope of work. (price by agreement / quote)
    No Yes

    3310.00€

    Price without VAT

    2669.35€

    To be ordered Delivery time: 21–35 business days
    To be ordered. This product is manufactured to order. The 14-day right of withdrawal does not apply (Law of Obligations Act § 56 (3) 1).
    Availability
    Out of Stock Pärnu 0 pcs To be ordered
    Shipping information
    Loading…
    Warranty 24 months
    To be ordered – right of return does not apply
    B2B invoice payment
    Spare parts from e-shop

    • Description

      Stainless Steel Conical Tank for Wine and Juice Fermentation 2.5bar

      High-quality stainless steel conical tank ideal for pressure fermentation and storage of wine and juice. Made from 2mm EN 1.4301 (AISI 304) stainless steel, ensuring durability and hygiene.

      Main Tank Specifications:

      • Diameter: 565 mm
      • Total height: 2220 mm
      • Conical bottom: 60°
      • Maximum working pressure: 2.5 bar

      Standard Equipment:

      • Precise pressure valve (2.5-3 bar)
      • Built-in thermometer
      • Efficient rotating CIP cleaning head
      • DN40 bottom outlet
      • DN25 cone center outlet
      • Top hatch (Ø300mm)

      Available Accessories:

      • Precise level sensor
      • Adjustable support legs
      • Output valve
      • Drain valve
      • Bottom cleaning hatch
      • Thermal insulation

      Note: Actual tank size may vary up to 10% due to technical specifications.

    • Frequently asked questions about this product

      What does the pressure rating let me do that an open tank cannot?

      The pressure-rated construction allows closed pressure fermentation, which retains naturally produced CO2 in the liquid; this is useful for making sparkling or carbonated products and for fermenting under controlled counter-pressure.

      What is the rotating CIP head for?

      The clean-in-place head sprays cleaning solution across the tank interior so it can be cleaned without disassembly or manual scrubbing, which matters for a sealed pressure vessel where interior access is limited.

      Why is the cone angled steeply?

      A steep cone helps yeast and sediment slide down and concentrate at the bottom outlet for easy removal, leaving clearer liquid above; steeper cones shed sediment more completely than shallow ones.

      Why does it have both a pressure valve and a built-in thermometer?

      The pressure valve keeps internal pressure within the safe working range while the thermometer lets you monitor fermentation temperature, so you can manage a sealed fermentation safely without opening the tank.

    • Specifications

      Length (mm)636.00
      Width (mm)636.00
      Height (mm)1750.00
      Weight (kg)60.00
      Gross Weight (kg)84.00
      Volume (ml)200000.00
      Unitpcs
      Pressure (bar)2.5
      Material

      Stainless steel

      Product type

      Conical tank

      Volume (L)200
