• SKU: 9001208

  EAN: 2000000023458

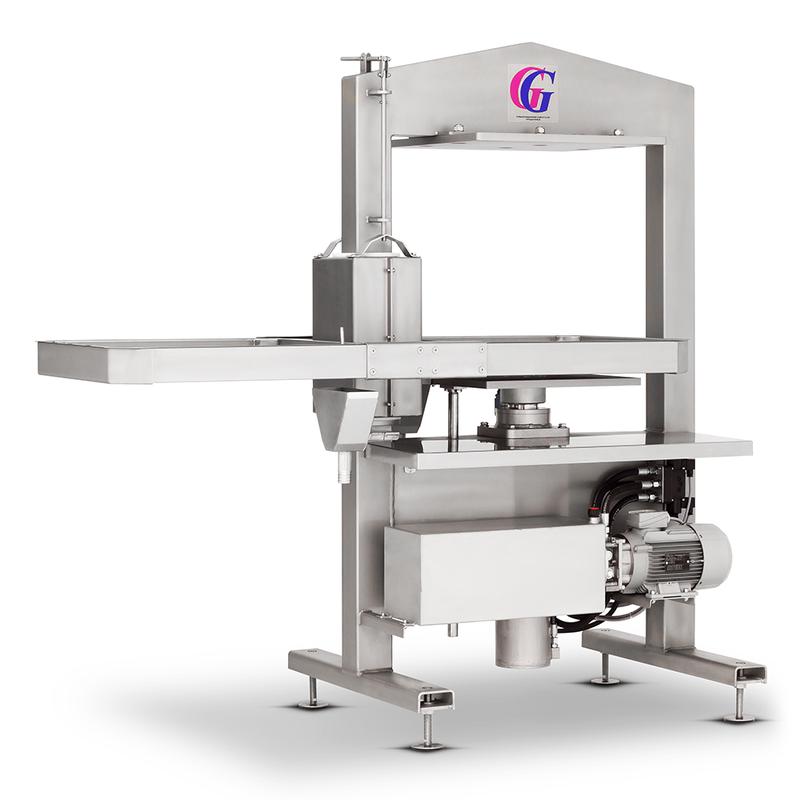

  Packing press GG PP80 500-700kg/h automatic stainless steel



  Industrial Stainless Steel Pack Press for Juice Production - High Efficiency Professional stainless steel pack press ensures maximum juice yield, offering 70-80% juice extraction. Equipped with a fully automatic pressing system that makes work efficient and convenient.

  Installation Installation service: we install the device on site according to the manufacturer's instructions, connect to the line (mechanical connections) and perform initial setup and test run. Price depends on location, access and scope of work. (price by agreement / quote)

  No Yes

  Kokkuhoid: 0.00€

  15450.00€

  15450.00€

  Price without VAT

  12459.68€

  12459.68€

  To be ordered Delivery time: 21–35 business days

  To be ordered. This product is manufactured to order. The 14-day right of withdrawal does not apply (Law of Obligations Act § 56 (3) 1).

  Add to cart

  Request Quote

  Print
  Availability

  Out of Stock Pärnu

  0 pcs To be ordered

  Shipping information

  Loading…
  Warranty 24 months

  To be ordered – right of return does not apply

  B2B invoice payment

  Spare parts from e-shop
• • Description
  • FAQ
  • Specifications

  • Description

    Industrial Stainless Steel Pack Press for Juice Production - High Efficiency

    Professional stainless steel pack press ensures maximum juice yield, offering 70-80% juice extraction. Equipped with a fully automatic pressing system that makes work efficient and convenient.

    Technical specifications:

    • Pressing capacity: 100 liters of crushed mass per cycle
    • Output: 7-8 full loads per hour
    • Motor: 2.2 kW
    • Cylinder diameter: 500 mm
    • Press cloths: 14 pcs, dimensions 900 x 900 mm
    • Acacia wood pressing racks: 16 pcs, dimensions 500 x 500 mm
    • Frame dimensions: 450 x 450 x 70 mm

    Equipment dimensions and weight:

    • Length: 1750 mm
    • Width: 850 mm
    • Height: 1750 mm
    • Total weight: 450 kg

    This durable pack press is ideal for both small producers and larger juice industries, ensuring consistent and quality production.

  • Frequently Asked Questions

    What kind of juice yield can be achieved with this baler?

    GG PP80 provides 70-80% juice yield depending on the type of fruit, degree of ripeness and pre-treatment. Apples and pears usually reach the upper end of this range, berries and stone fruits may give slightly less. Proper crushing before pressing greatly improves efficiency.

    What fruits and vegetables can be processed?

    The press is suitable for apples, pears, grapes, berries, stone fruits (after removing stones) and vegetables such as carrots and beets. The raw material must first be crushed or ground to the optimum particle size to ensure maximum juice yield.

    How many pressing cycles per hour can the machine do?

    The GG PP80 performs 7-8 full cycles per hour with 100 L crushed mass per cycle, giving a theoretical throughput of 500-700 kg/h depending on the material. The fully automatic system minimizes operator intervention between cycles.

    How to clean and maintain pressed fabrics?

    Pressed fabrics should be rinsed with cold water immediately after use, then washed with warm water and food grade detergent. Acacia wood frames should be cleaned with a brush and thoroughly dried. Regular maintenance extends the life of both fabrics and wooden frames.

    Is the device suitable for contact with food?

    Yes, all food contact parts are made of food-grade stainless steel, and acacia wood frames are a traditional approved material for juicing. The device meets hygiene requirements in both small-scale production and industrial juice production.

  • Specifications

    Length (mm)	1750.00
    Width (mm)	850.00
    Height (mm)	1750.00
    Weight (kg)	450.00
    Gross Weight (kg)	486.00
    Volume (ml)	100000.00
    Unit	pcs
    Power (W)	2200
    Throughput	700kg/h
    Material	Stainless steel Wood
    Product type	Extract
    Volume (L)	100
