  • Micro Filling Systems 2-Head Bottling System 250pdl/h 5bar
    Micro Filling Systems 2-Head Bottling System 250pdl/h 5bar

  • SKU: 9001287

    EAN: 2000000024240

    Micro Filling Systems 2-Head Bottling System 250pdl/h 5bar

    Isobaric Filling Device for Two Bottles Professional filling device made of AISI 304 stainless steel and food grade PP plastic. Perfect solution for bottling sparkling wines, soft drinks, and beer into glass or PET bottles.

    Installation Installation service: we install the device on site according to the manufacturer's instructions, connect to the line (mechanical connections) and perform initial setup and test run. Price depends on location, access and scope of work. (price by agreement / quote)
    No Yes

    2872.00€

    Price without VAT

    2316.13€

    To be ordered Delivery time: 21–35 business days
    To be ordered. This product is manufactured to order. The 14-day right of withdrawal does not apply (Law of Obligations Act § 56 (3) 1).
    Availability
    Out of Stock Pärnu 0 pcs To be ordered
    Shipping information
    Loading…
    Warranty 24 months
    To be ordered – right of return does not apply
    B2B invoice payment
    Spare parts from e-shop

    • Description

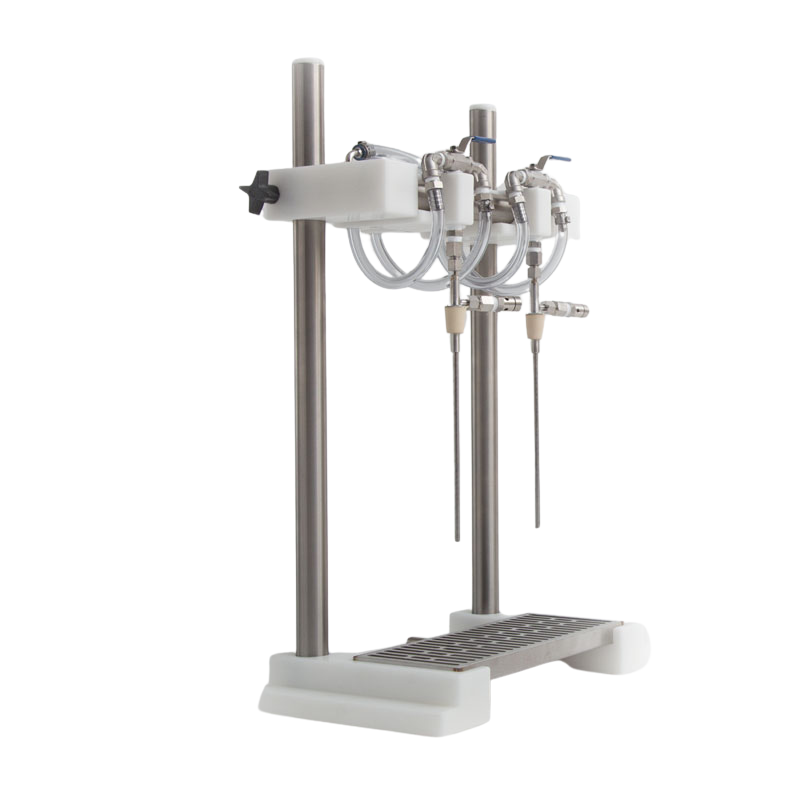

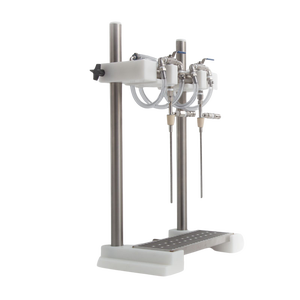

      Isobaric Filling Device for Two Bottles

      Professional filling device made of AISI 304 stainless steel and food grade PP plastic. Perfect solution for bottling sparkling wines, soft drinks, and beer into glass or PET bottles.

      Technical Specifications

      • Filling capacity: 100-250 bottles per hour (0.35-0.65l)
      • Maximum working pressure: 5.5 bar
      • Stainless steel filling valves
      • Triple valves for CO2 input, filling, and shutdown

      Construction and Design

      • Removable stainless steel drip tray with grid
      • HDPE plastic adjustable height setting
      • Food grade pipe fittings and hoses
      • Adaptable for different bottle sizes

      Operation

      Simple two-stage filling process:

      1. Turning valve to one side: filling container with CO2
      2. Turning valve to other side: filling with liquid
      3. Valve center position: closing when desired level is reached

      Factors affecting productivity: beverage quality and pressure, bottle size, air temperature, beverage temperature, CO2 pressure, and operator experience.

    • Frequently asked questions about 9001287

      What beverages can be bottled with this device?

      The device is designed for carbonated drinks such as sparkling wines, beer, cider and soft drinks. It fits both glass and PET bottles from 0.35 to 0.65 L, making it an ideal solution for small-scale production.

      What is the actual bottling capacity?

      The system bottles 100-250 bottles per hour depending on bottle size, beverage temperature, CO2 pressure and operator experience. Optimum productivity is achieved with cold drinks (4-8 °C) and a stable CO2 pressure of 2-3 bar.

      How does the principle of isobaric bottling work?

      Isobaric bottling equalizes the pressure of the container and bottle using CO2 before the liquid enters. This prevents foaming and CO2 loss, maintaining carbonation and product quality. A triple valve system controls CO2 injection, liquid bottling and closure in one turn.

      Is the device food safe?

      Yes. All parts in contact with the liquid are made of AISI 304 stainless steel and PP and HDPE plastic suitable for the food industry. Hoses and fittings comply with food contact regulations, ensuring safe use in wine, beer and beverage production.

      Does the device fit bottles of different sizes?

      Yes. The HDPE height adjustment system allows the device to be quickly adapted to bottles of different heights and neck diameters. This flexibility is ideal for manufacturers who bottle multiple product lines in different glass or PET formats.

    • Specifications

      Length (mm)600.00
      Width (mm)400.00
      Height (mm)400.00
      Gross Weight (kg)21.00
      Volume (ml)1.00
      Unitpcs
      Pressure (bar)5.5
      Certifications

      CE

      Material

      Stainless steel

      Plastic

      Glass

      Volume (L)0.003
