• SKU: 9001329

  EAN: 2000000024660

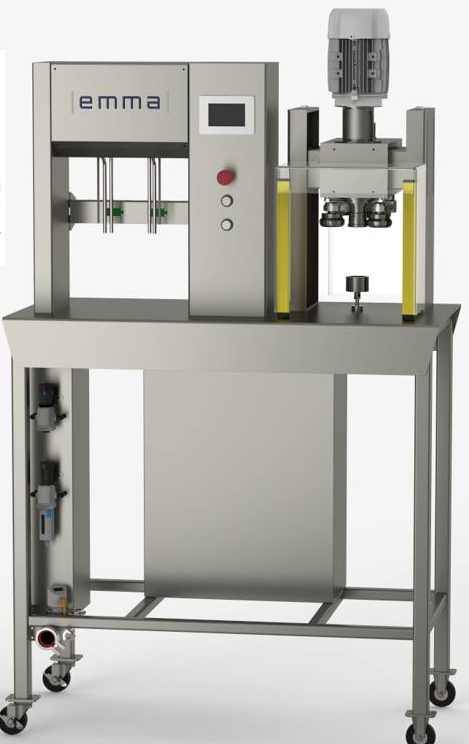

  Monoblock filling jar capping 600pc/h

  Automatic Jar Filling and Sealing Machine for Beverage Bottling Professional stainless steel filling equipment and capper that perfectly matches your beverage industry needs. Technical Capabilities Suitable for jars with diameter 63-66 mm Accommodates jars with heights from 33cl to 50cl Production capacity: up to 600 jars per hour Operating Conditions

  Installation Installation service: we install the device on site according to the manufacturer's instructions, connect to the line (mechanical connections) and perform initial setup and test run. Price depends on location, access and scope of work. (price by agreement / quote)

  No Yes

  Kokkuhoid: 0.00€

  35217.00€

  35217.00€

  Price without VAT

  28400.81€

  28400.81€

  To be ordered Delivery time: 21–35 business days

  To be ordered. This product is manufactured to order. The 14-day right of withdrawal does not apply (Law of Obligations Act § 56 (3) 1).

  Add to cart

  Request Quote

  Print
  Availability

  Out of Stock Pärnu

  0 pcs To be ordered

  Shipping information

  Loading…
  Warranty 24 months

  To be ordered – right of return does not apply

  B2B invoice payment

  Spare parts from e-shop
• • Description
  • FAQ
  • Specifications

  • Description

    Automatic Jar Filling and Sealing Machine for Beverage Bottling

    Professional stainless steel filling equipment and capper that perfectly matches your beverage industry needs.

    Technical Capabilities

    • Suitable for jars with diameter 63-66 mm
    • Accommodates jars with heights from 33cl to 50cl
    • Production capacity: up to 600 jars per hour

    Operating Conditions

    • Optimal filling temperature: 0°C to +2°C
    • Working room temperature range: +2°C to +40°C
    • Carbonation level: 4.6 g/l
    • Filling from isobaric tank with precise measurement control

    Technical Specifications

    • Electric power: 0.5 kW
    • Power supply: 220V/24V
    • Required compressed air: 6 bar
    • Stainless steel construction
    • Mechanical jar sealing system

  • Frequently asked questions about this product

    What jar sizes does this monoblock handle?

    It fills jars with a diameter of 63-66 mm and heights covering 33 cl to 50 cl formats. So it suits standard beverage jars across that size range. You match the jar to these limits for correct filling and sealing.

    What output does it reach?

    It fills and seals up to 600 jars per hour in one monoblock pass. Filling and mechanical sealing happen on the same frame, so jars do not transfer between machines. Actual rate depends on jar size and fill volume.

    Can it fill carbonated drinks without losing fizz?

    Yes, it fills from an isobaric tank with precise measurement control, holding pressure so the carbonation stays in the drink. It is set for a carbonation level of 4,6 g/l and an optimal filling temperature of 0 to +2 C. Cold isobaric filling is what limits foaming and gas loss.

    What utilities does the machine need?

    It draws only 0,5 kW on a 220 V / 24 V supply and needs compressed air at 6 bar. The working room should stay between +2 and +40 C. Confirm the air supply and power before installation.

    How are the jars sealed?

    The monoblock uses a mechanical jar sealing system right after filling. This closes each jar on the same machine in line with the fill. The stainless steel construction suits beverage hygiene and washdown.

  • Specifications

    Length (mm)	600.00
    Width (mm)	400.00
    Height (mm)	400.00
    Weight (kg)	0.01
    Gross Weight (kg)	62.00
    Unit	pcs
    Power (W)	500
    Voltage	230V, 24V
    Temperature range	0°C — 40°C
    Pressure (bar)	6
    Material	Stainless steel
    Product type	Labeling machine
