  • Self-cleaning semi-automatic filter FUC10 3.5m3/h 35-3000μm
    Self-cleaning semi-automatic filter FUC10 3.5m3/h 35-3000μm
    Self-cleaning semi-automatic filter FUC10 3.5m3/h 35-3000μm
    Self-cleaning semi-automatic filter FUC10 3.5m3/h 35-3000μm

  • SKU: 9001412

    EAN: 2000000025490

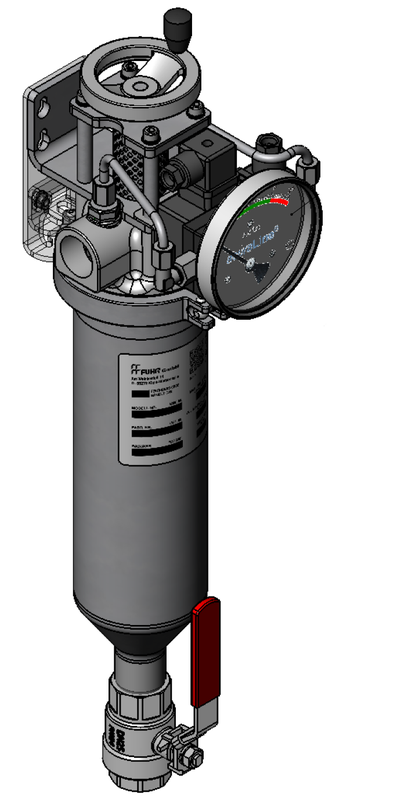

    Self-cleaning semi-automatic filter FUC10 3.5m3/h 35-3000μm

    Professional Self-Cleaning Juice Filter 3500L/H - German Quality High-quality stainless steel semi-automatic filter ensures effective filtration of juices, oils, and wines with productivity up to 3500 liters per hour. Made in Germany, this device is perfect for industrial and small-scale production filtration processes.

    Installation Installation service: we install the device on site according to the manufacturer's instructions, connect to the line (mechanical connections) and perform initial setup and test run. Price depends on location, access and scope of work. (price by agreement / quote)
    No Yes

    2765.00€

    Price without VAT

    2229.84€

    To be ordered Delivery time: 21–35 business days
    To be ordered. This product is manufactured to order. The 14-day right of withdrawal does not apply (Law of Obligations Act § 56 (3) 1).
    Availability
    Out of Stock Pärnu 0 pcs To be ordered
    Shipping information
    Loading…
    Warranty 24 months
    To be ordered – right of return does not apply
    B2B invoice payment
    Spare parts from e-shop

    • Description

      Professional Self-Cleaning Juice Filter 3500L/H - German Quality

      High-quality stainless steel semi-automatic filter ensures effective filtration of juices, oils, and wines with productivity up to 3500 liters per hour. Made in Germany, this device is perfect for industrial and small-scale production filtration processes.

      Main Filter Features:

      • Durable stainless steel construction
      • Productivity: up to 3500 l/h
      • Filter elements: 35-3000μm
      • Input, output and cleaning valves: 25mm

      Filter Advantages:

      • Quick self-cleaning system with manual crank
      • Removable V-profile filter element
      • Two-part housing with quick clamp
      • Low maintenance cost
      • Energy-efficient operation

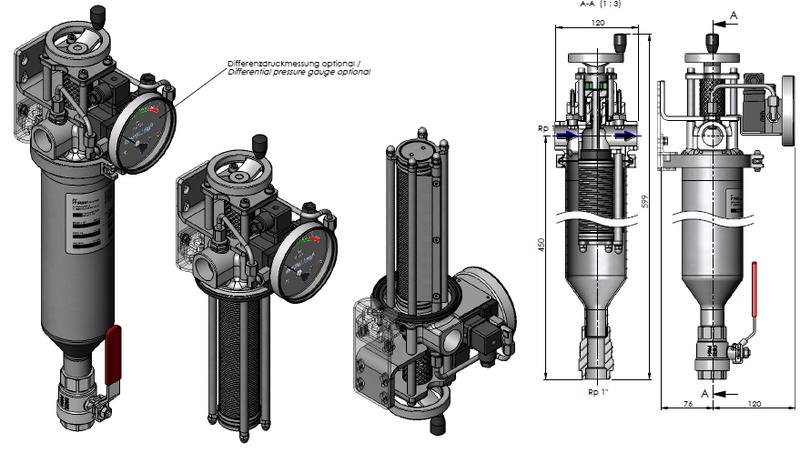

      The filter design allows easy maintenance thanks to the quick-release clamp and removable filter element. The V-profile filter element ensures consistent cleaning results and long service life.

      100 or 300 micron filter elements are available as standard equipment.

      The automatic cleaning system collects sediments at the bottom of the filter, which are easily discharged through the bottom valve. The device is ideal for the food industry, thanks to its stainless steel construction and efficient filtration process.

    • Frequently asked questions about 9001412

      What liquids is this filter suitable for?

      The FUC10 is designed for the filtration of juices, oils and wines. Thanks to its stainless steel construction, it meets the hygiene requirements of the food industry and is suitable for processing fruit juices, various cooking oils and wines. The filter is equally suitable for both industrial processes and small production.

      How does the self-cleaning system work?

      The filter uses a semi-automatic self-cleaning system operated by a hand crank. When the crank is turned, the V-profile filter element rotates and the sediments accumulated on the surface are scraped off. Sediment accumulates at the bottom of the filter housing and is discharged through the 25mm cleaning valve — it is not necessary to disassemble the filter for normal cleaning.

      What filter element sizes are available?

      The filter supports elements from 35 to 3000 microns. 100 or 300 micron cells are standard. For finer filtration (35-50 microns), an additional fee applies. The choice of element depends on the liquid and the clarity of the desired end product.

      What are the dimensions of the connections?

      All three valves — inlet, outlet and purge — are 25mm. This standard size simplifies the integration of the filter into existing production lines and the selection of suitable fittings, hoses and pumps.

      How demanding is the filter in maintenance?

      Maintenance is very simple. The two-piece body with a quick-release clip opens in seconds, the V-profile element is removable for thorough cleaning, and the self-cleaning system reduces the need for manual work during operation. Operating costs are low and energy consumption is minimal.

    • Specifications

      Length (mm)120.00
      Width (mm)120.00
      Height (mm)600.00
      Gross Weight (kg)21.00
      Volume (ml)3500.00
      Unitpcs
      Throughput3500 L/h
      Material

      Stainless steel

      Certifications

      NSF

      Volume (L)3500
