SKU: MFP0032
EAN: 2000000030661

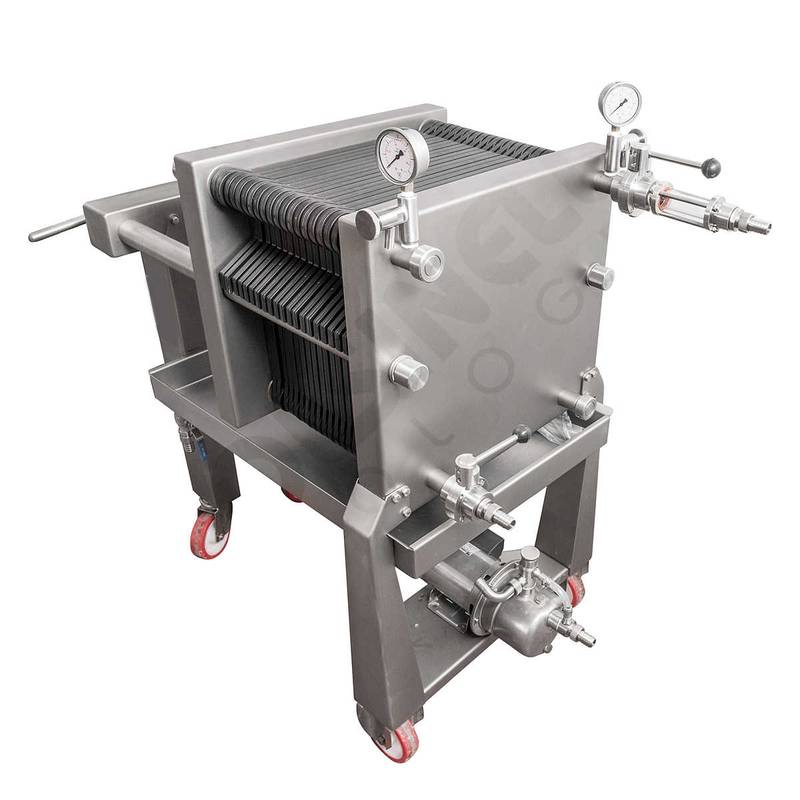

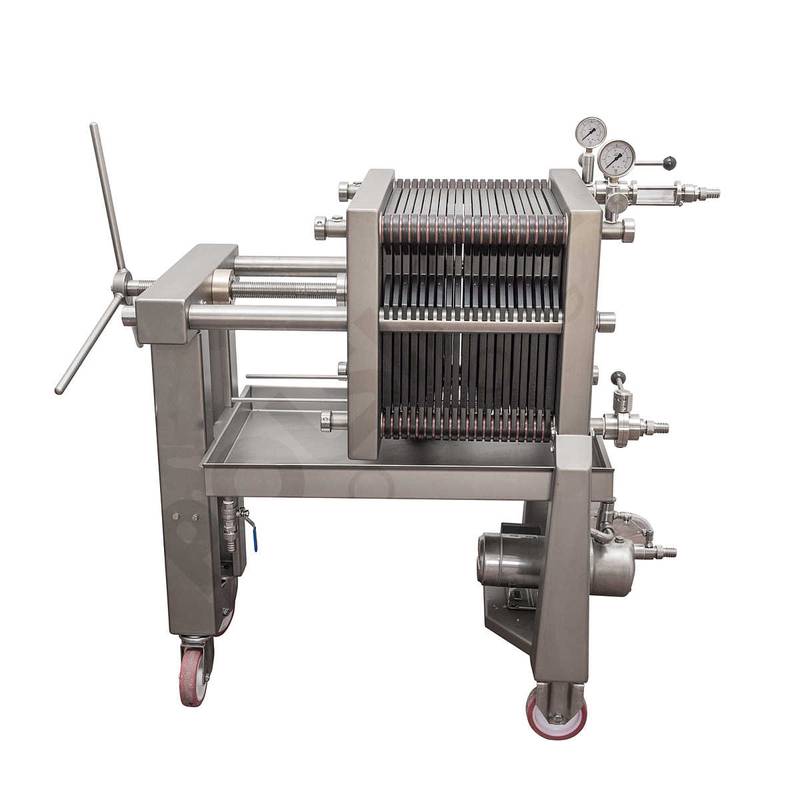

Filter unit EUR-40 40x40 with pump
Industrial Filter System with 40 Filter Plates - Liquid Filtration Solution Powerful industrial filter system equipped with 40 filter plates (40x40cm), ensures professional filtration results for various liquids.
Installation Installation service: we install the device on site according to the manufacturer's instructions, connect to the line (mechanical connections) and perform initial setup and test run. Price depends on location, access and scope of work. (price by agreement / quote)No Yes8529.00€
Price without VAT6878.23€
To be ordered Delivery time: 21–35 business daysTo be ordered. This product is manufactured to order. The 14-day right of withdrawal does not apply (Law of Obligations Act § 56 (3) 1).0Europe/Tallinnout_of_stock_products0AvailabilityOut of Stock Pärnu 0 pcs To be ordered Out of Stock Supplier warehouse 0 pcs To be ordered Delivery 30-90 Shipping informationLoading…Warranty 24 monthsTo be ordered – right of return does not applyB2B invoice paymentSpare parts from e-shop -
-
Description
Industrial Filter System with 40 Filter Plates - Liquid Filtration Solution
Powerful industrial filter system equipped with 40 filter plates (40x40cm), ensures professional filtration results for various liquids.
Applications
- Wine filtration (capacity 4000l/h)
- Sparkling wine processing
- Oil filtration (capacity 400l/h)
- Purification of low-alcohol liqueurs
- Filtration of herbal extracts
Device Features

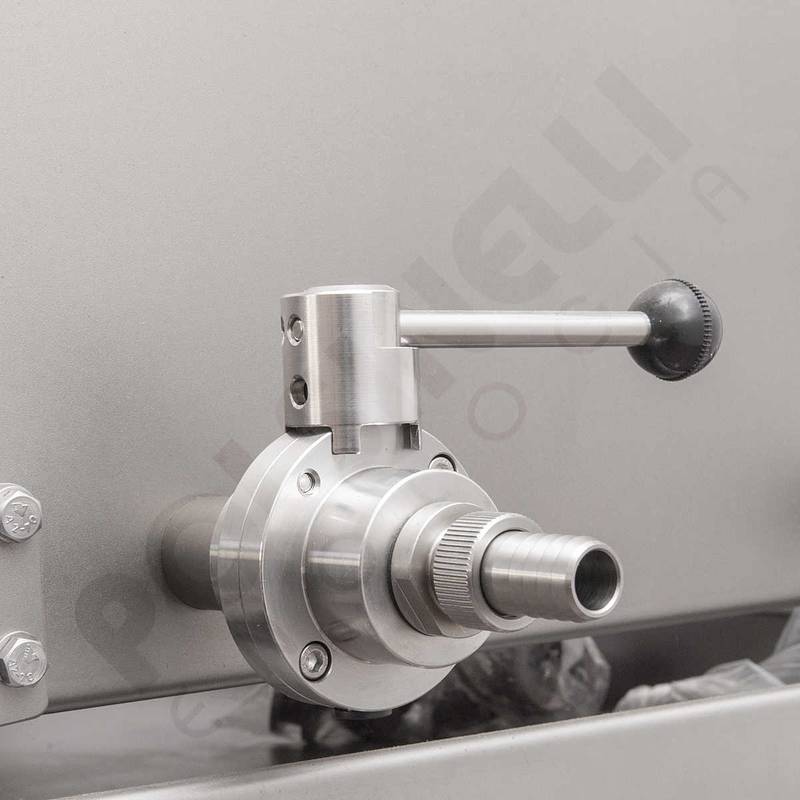

- Adjustable inlet and outlet valves

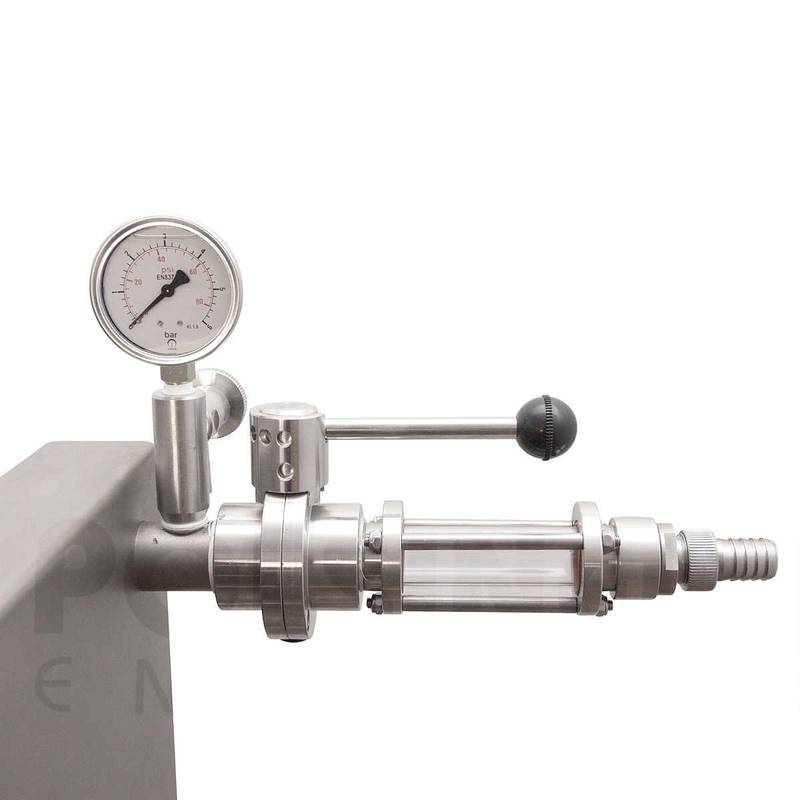

- Visual control piece for output product monitoring
- Air release valves for system ventilation
- Sampling capability of processed product
- Maximum working pressure 3 bar
Technical Specifications
- Dimensions: 175x63x122cm
- Weight: 370 kg
- Filter plate size: 40x40cm
- Number of plates: 40 pcs
-
Frequently Asked Questions
What liquids can be filtered with the EUR-40?
The EUR-40 is designed to filter a wide range of beverages and liquids, including still and sparkling wine, low-alcohol liqueurs, cooking oil, vinegar and plant extracts. The design of the plate filter allows the use of filter sheets of different densities, from coarse clarification to fine sterile filtration, depending on the product and the desired transparency.
What is the filtration performance of the device?
Productivity depends on the fluid and the type of filter sheets installed. For wine, the EUR-40 reaches around 4000 l/h, for more viscous products such as oil, the throughput is around 400 l/h. The maximum operating pressure is 3 bar, which must not be exceeded to protect the plates and filter sheets.
How many filter plates does the EUR-40 have?
The device is equipped with 40 filter plates measuring 40x40 cm, which ensures a large effective filtering surface. This allows for longer continuous operation between filter sheet changes and high flow rates without overloading individual plates, making the unit well suited for small and medium-sized wineries and distillers.
Can samples be taken during work?
Yes. The unit has a visual inspection piece on the output side to monitor filtrate clarity and a special sampling valve that allows the operator to sample the processed product during filtration without stopping the process. Air bleed valves are also installed to vent the system before and during startup.
What are the overall dimensions and weight?
The dimensions of the EUR-40 are 175x63x122 cm and the weight is 370 kg. A solid floor and sufficient space for operating the device, changing filter sheets and cleaning must be provided. A built-in pump allows the unit to take product from floor-level tanks and transfer the clarified liquid to the next processing or bottling step.
-
Specifications
Length (mm) 1750.00 Width (mm) 630.00 Height (mm) 1220.00 Weight (kg) 370.00 Gross Weight (kg) 396.00 Volume (ml) 4000.00 Unit pcs Throughput 4000kg/h Power (W) 220 Filter area (m²) 6,4 Mq Pressure rating (bar) 3 Pressure (bar) 3 Certifications CE
PED
NSF
Product type Extract
Volume (L) 4000
-
