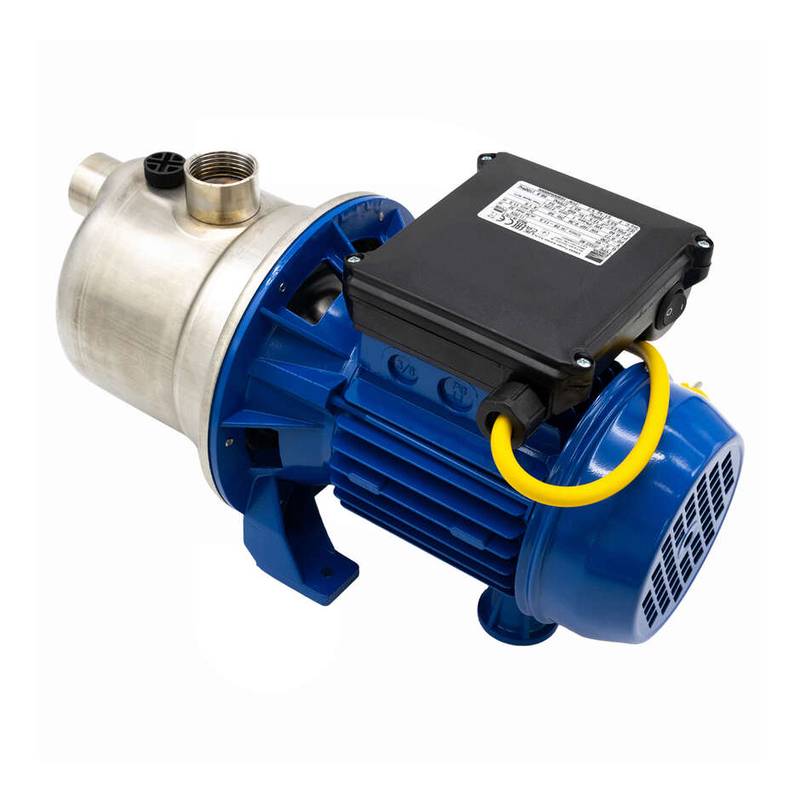

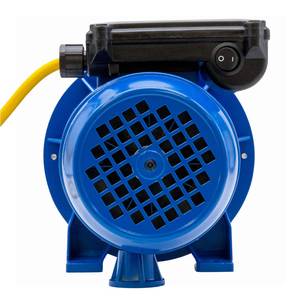

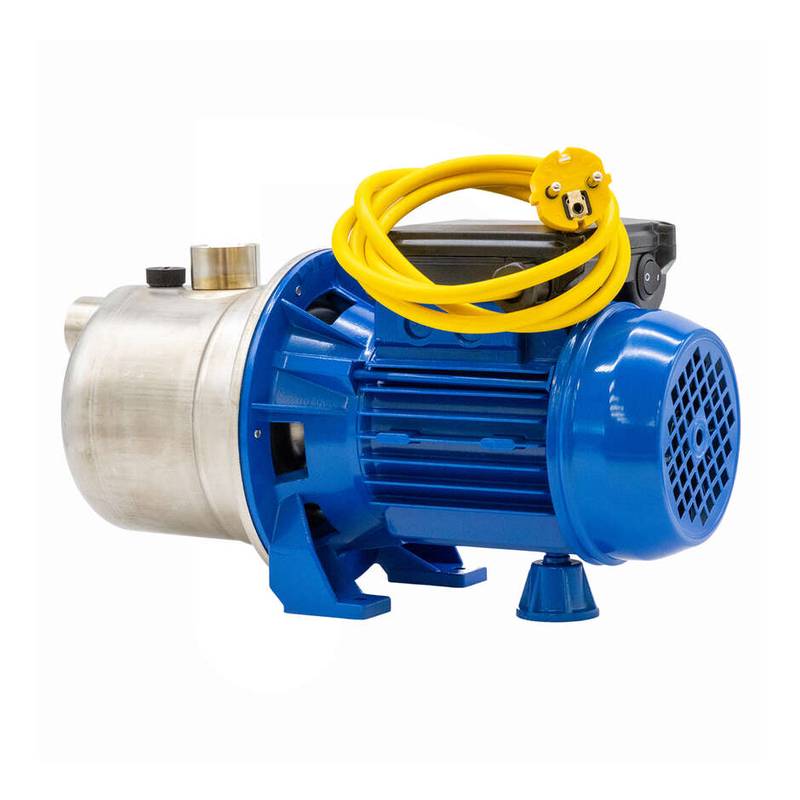

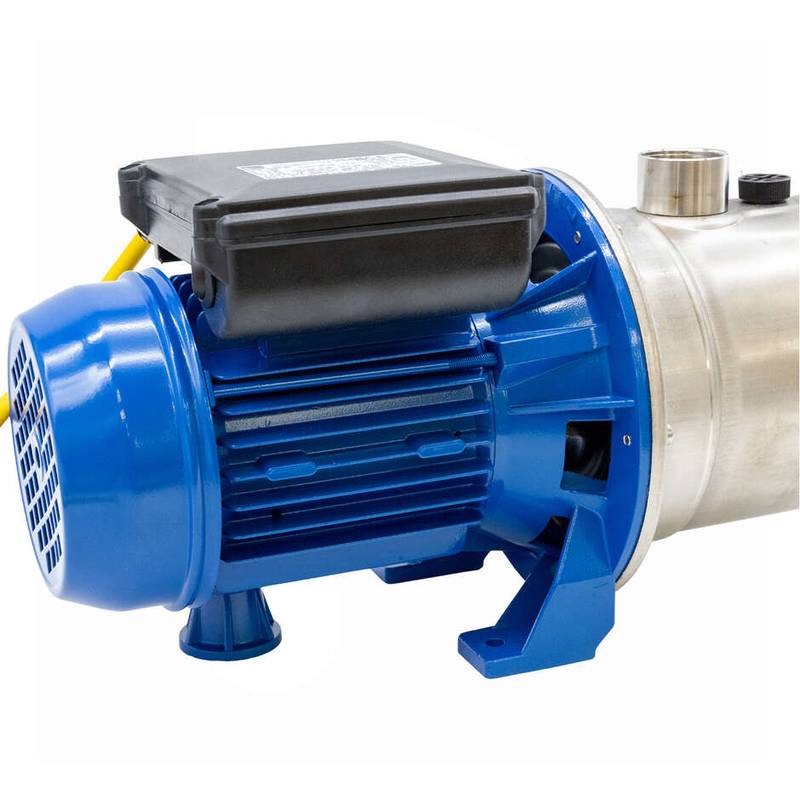

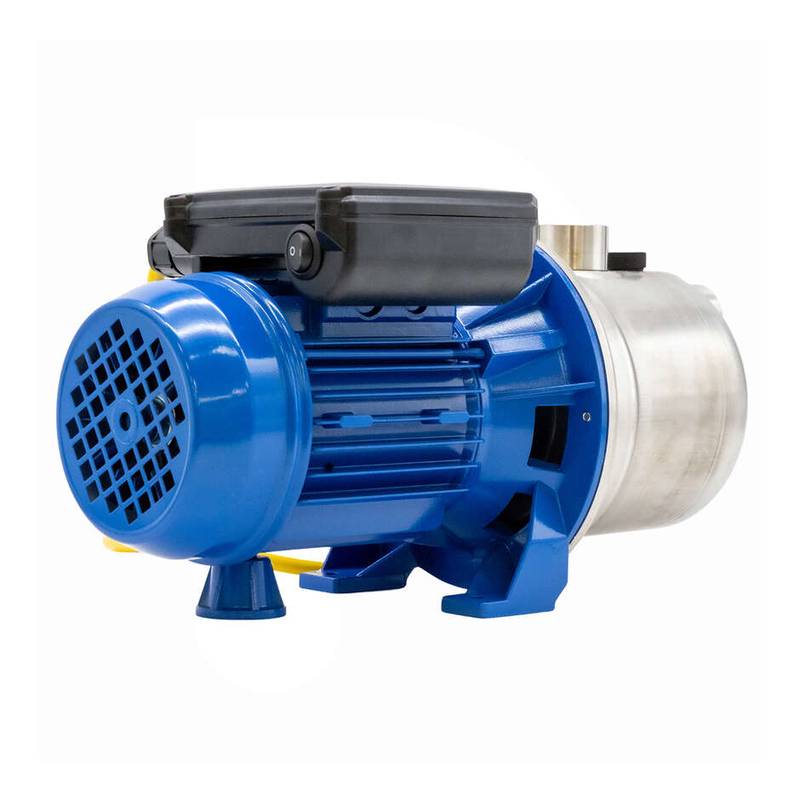

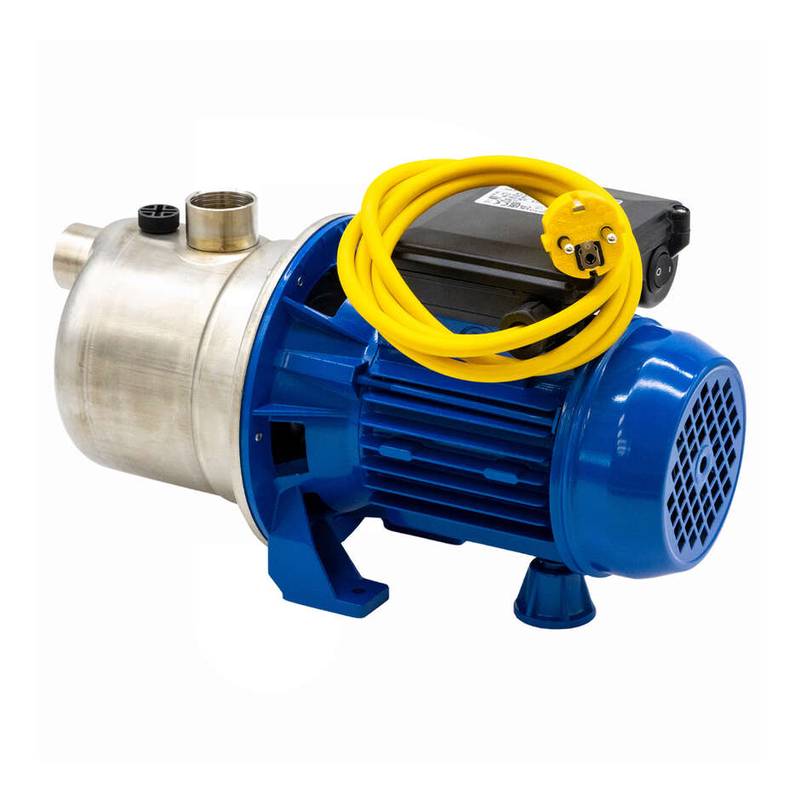

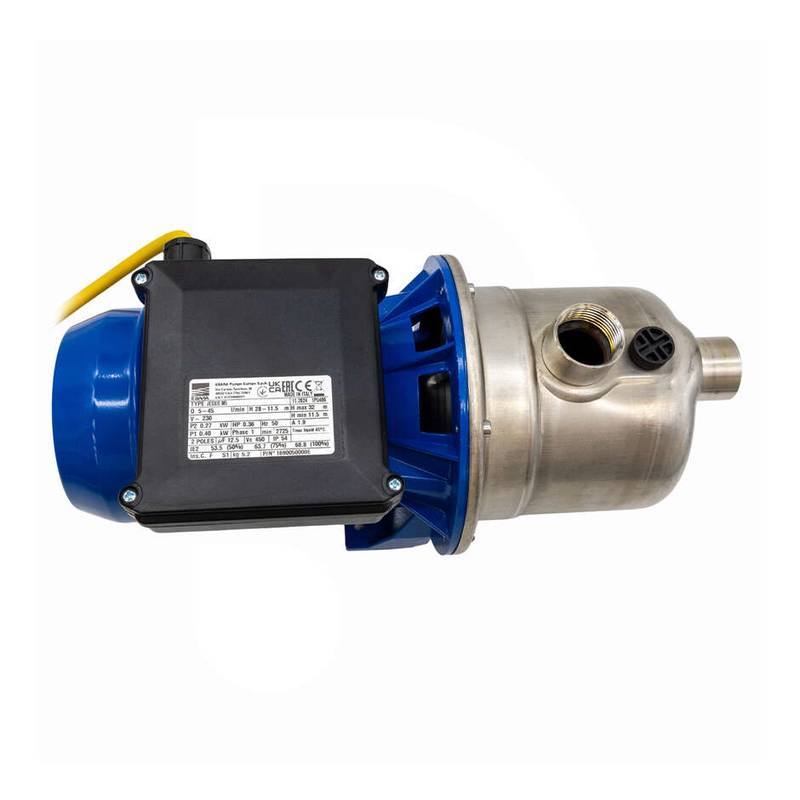

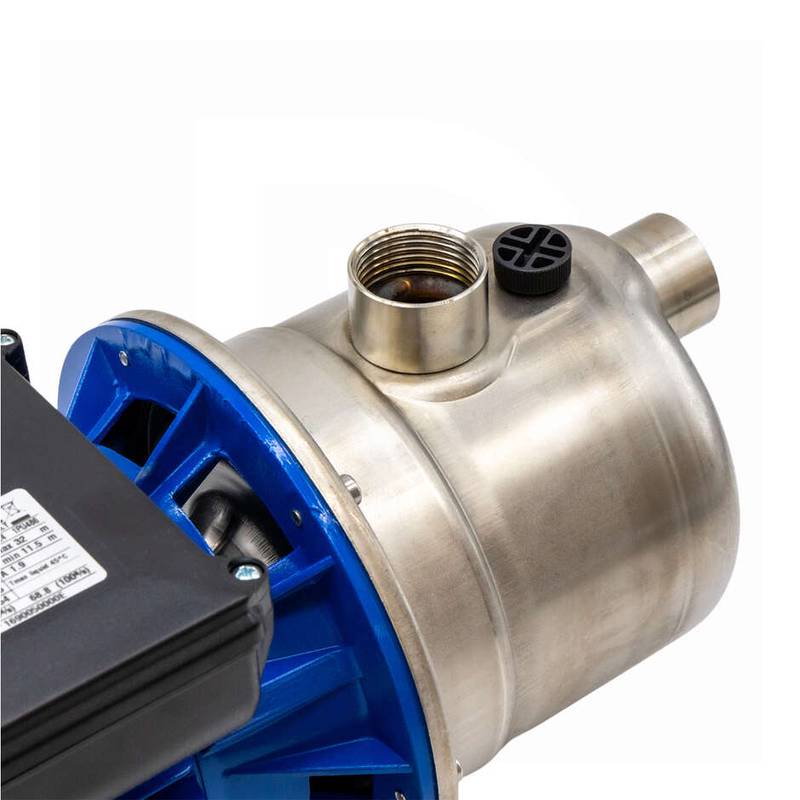

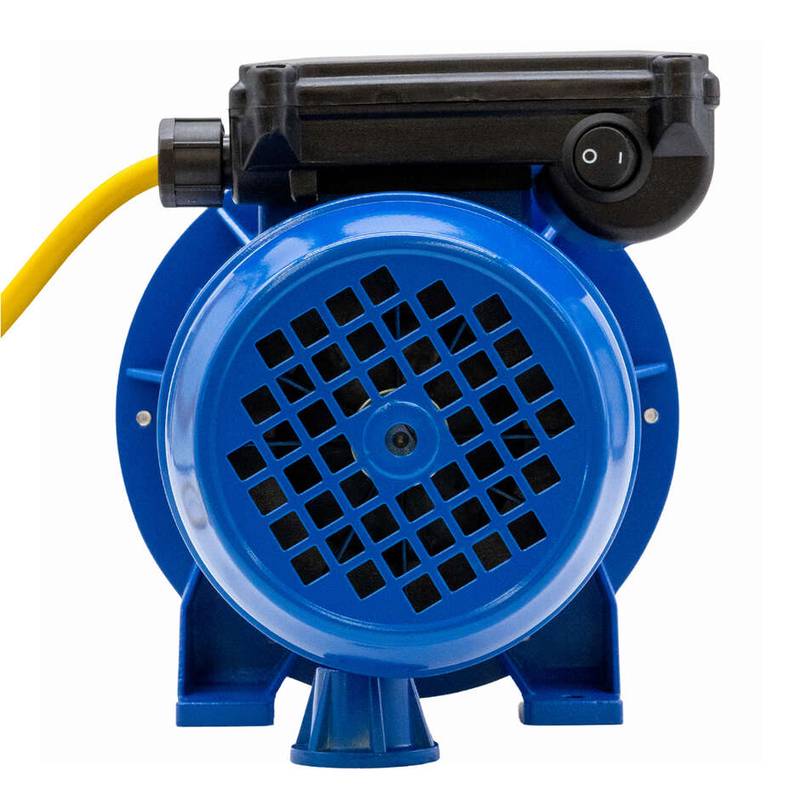

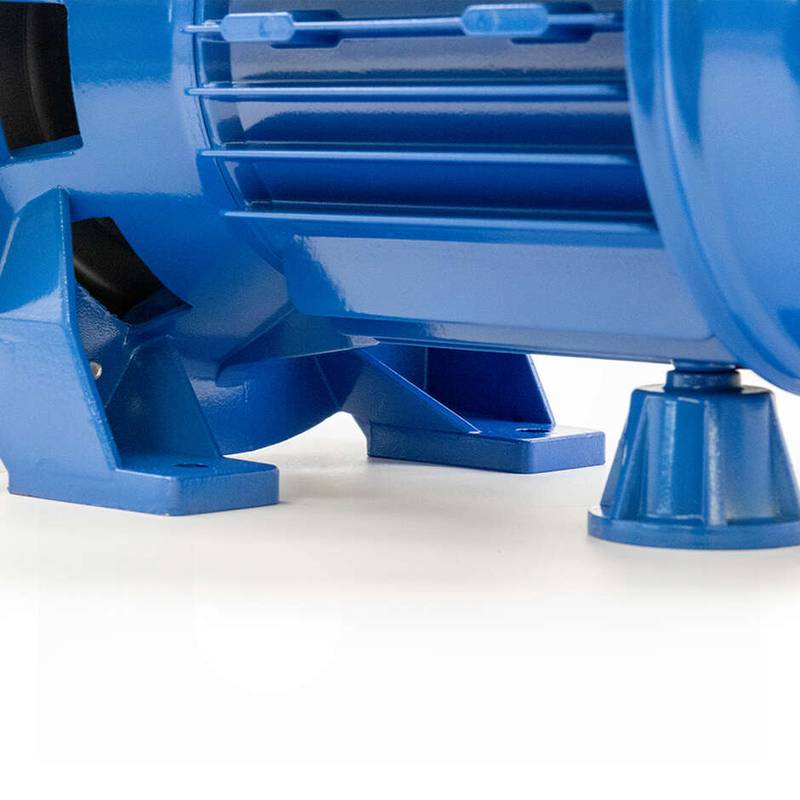

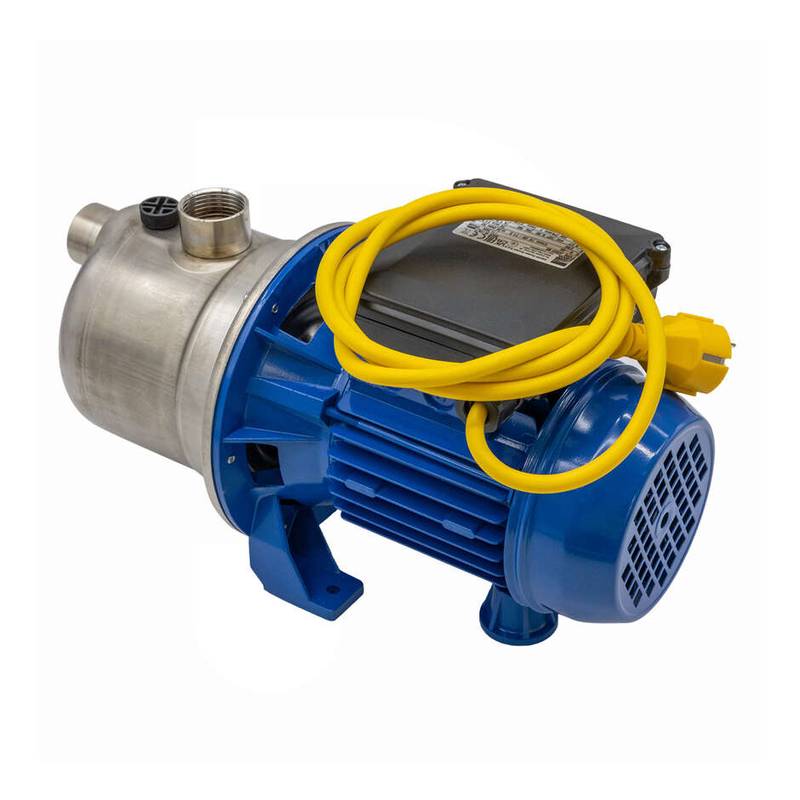

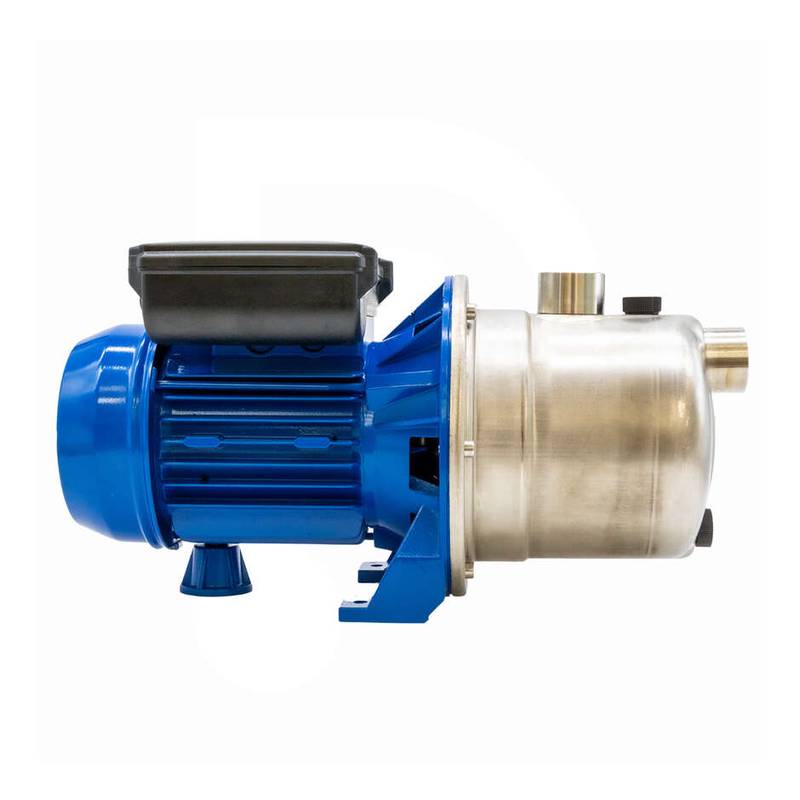

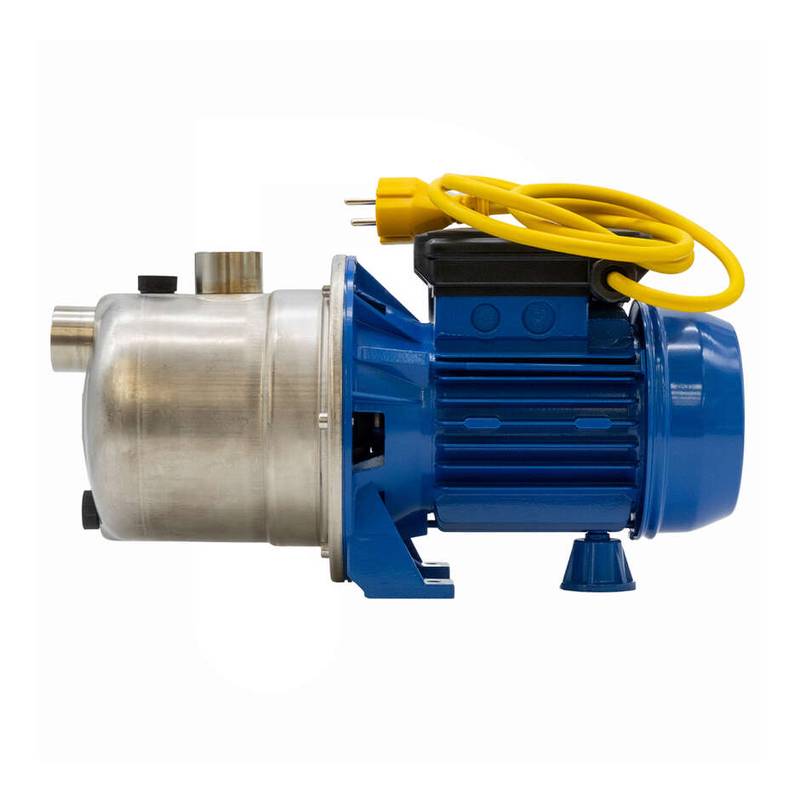

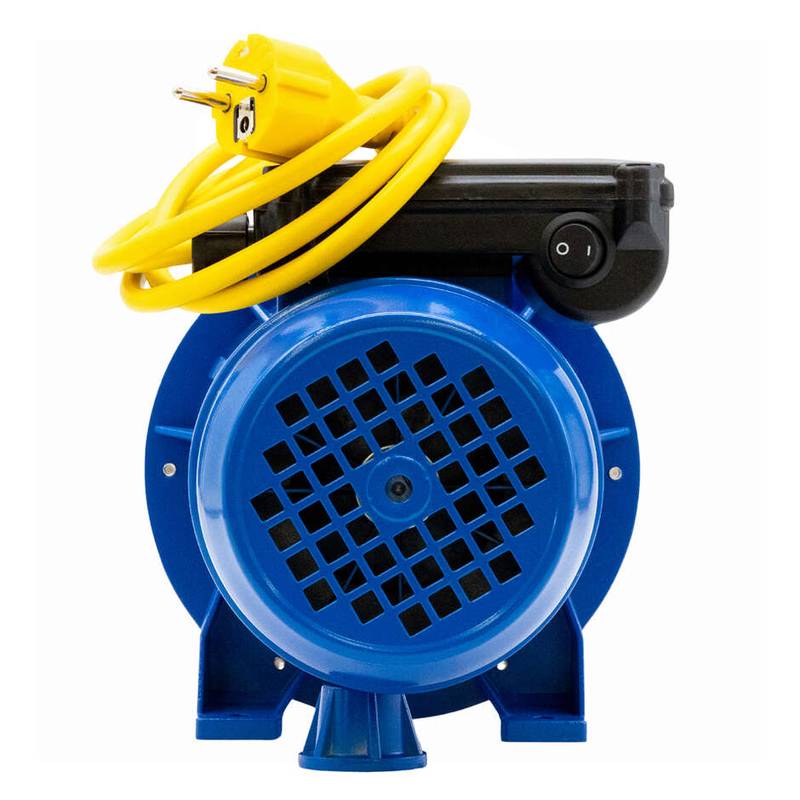

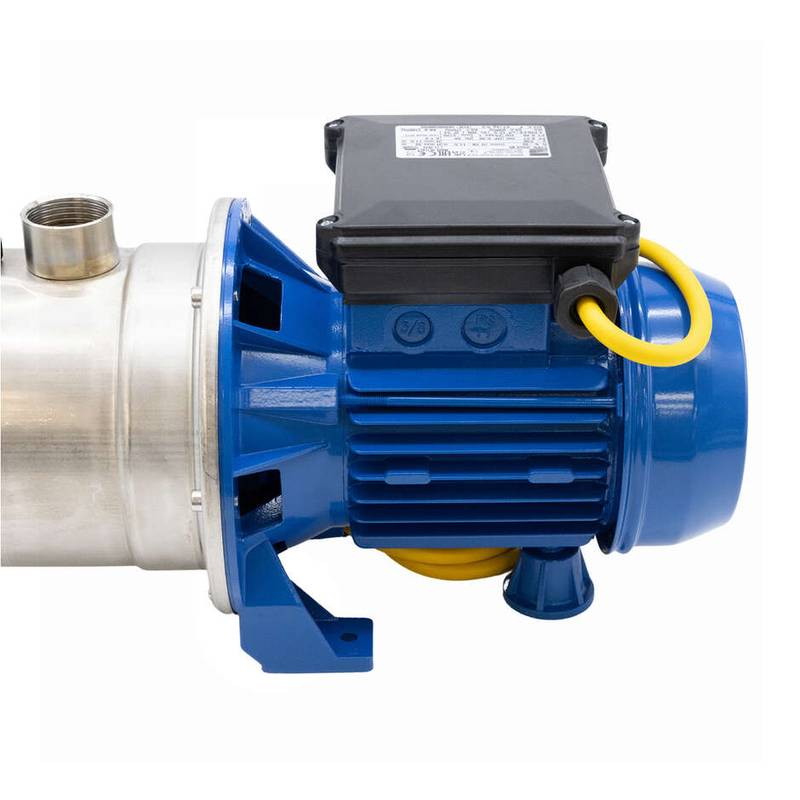

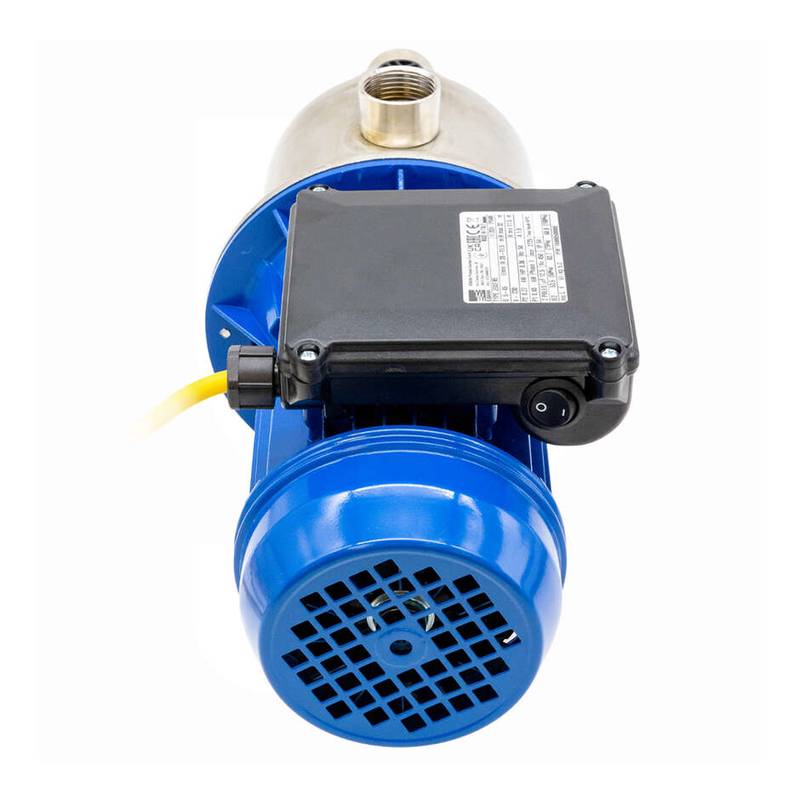

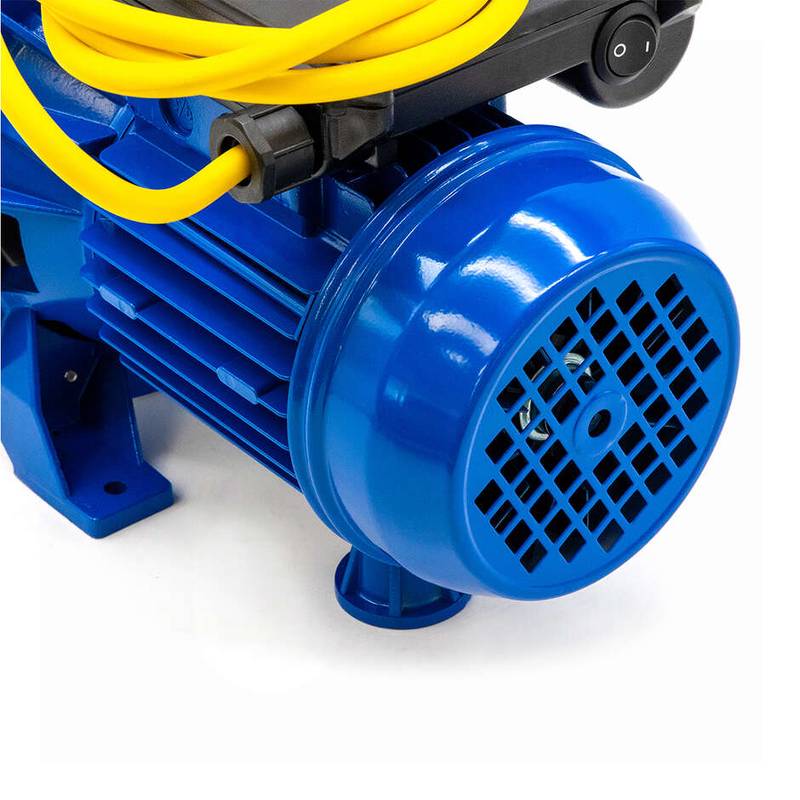

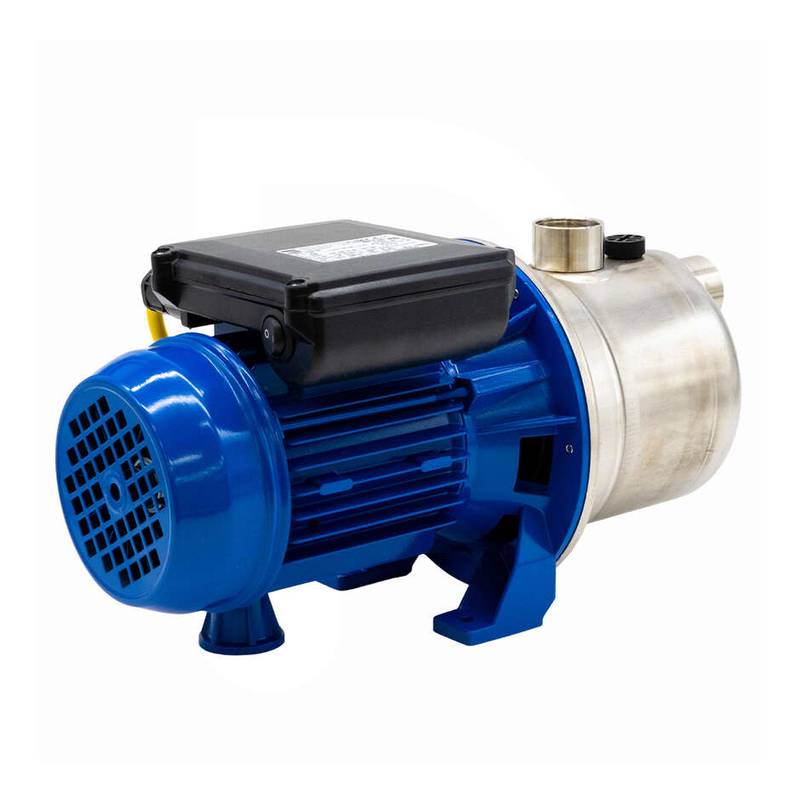

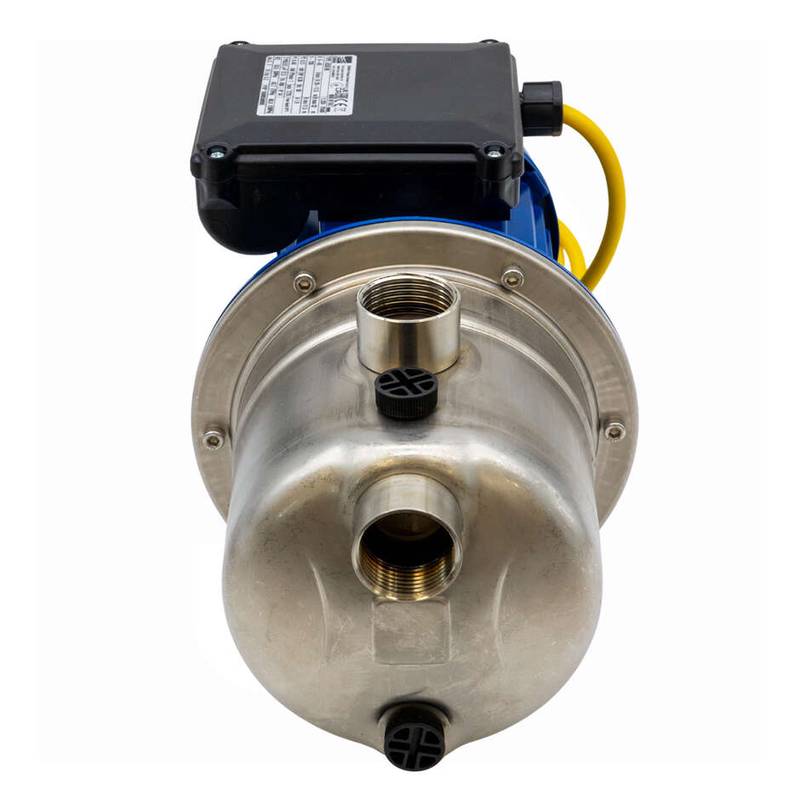

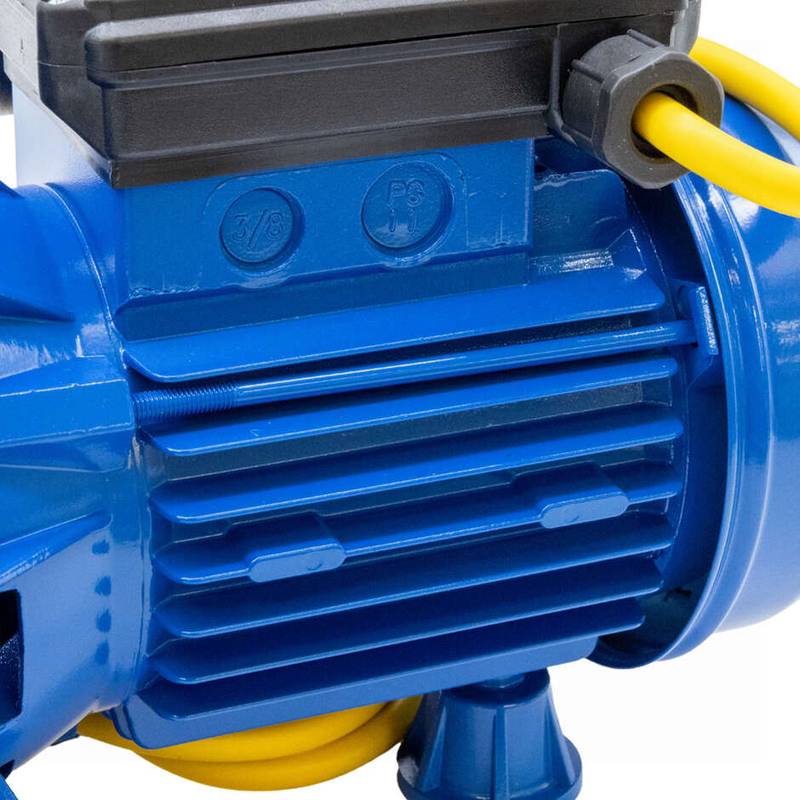

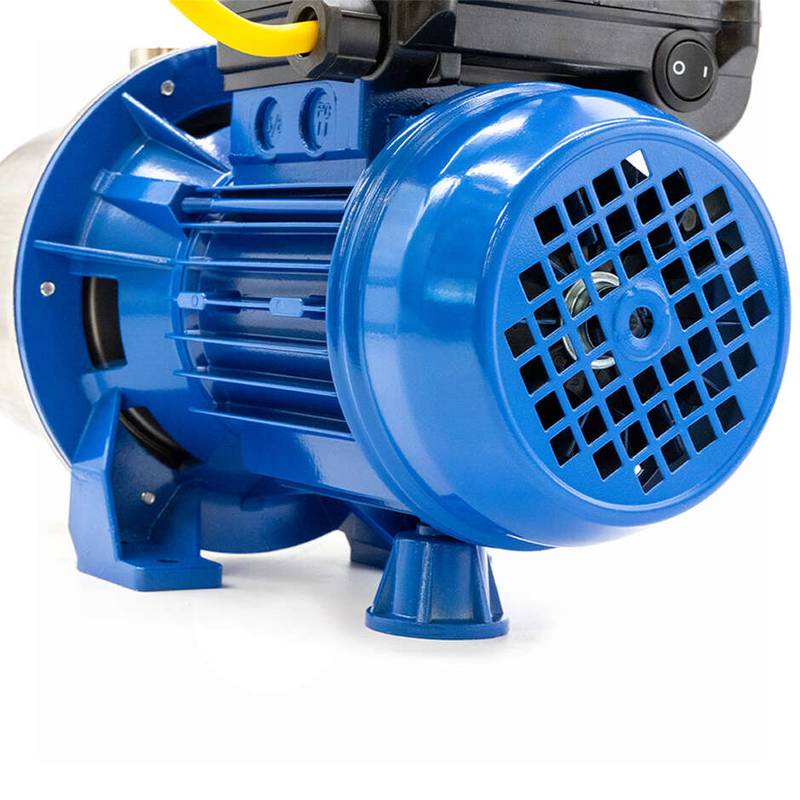

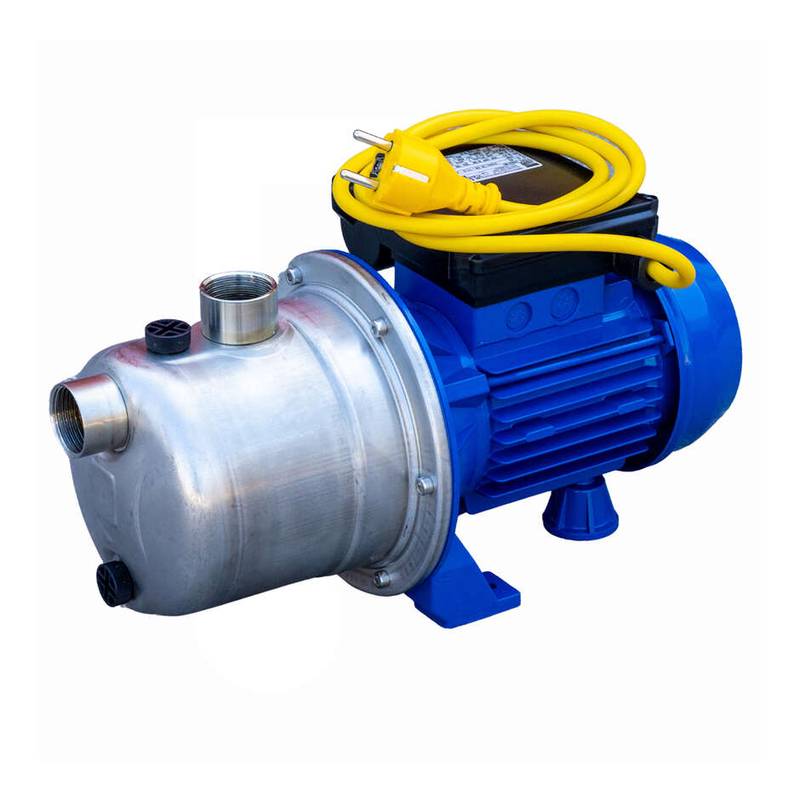

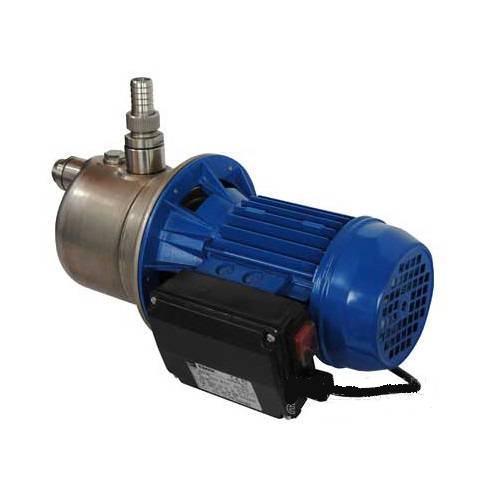

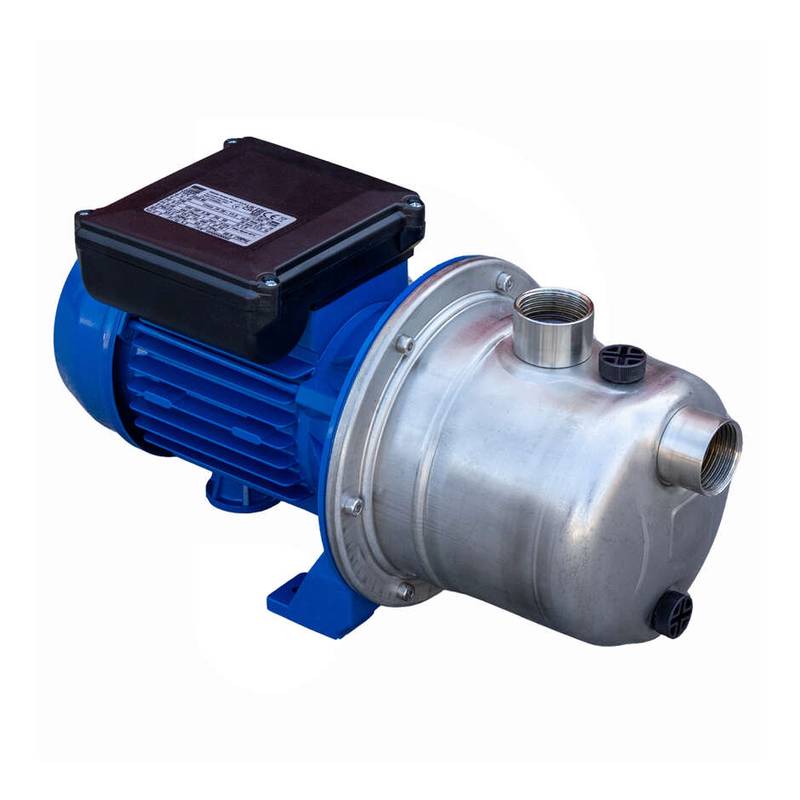

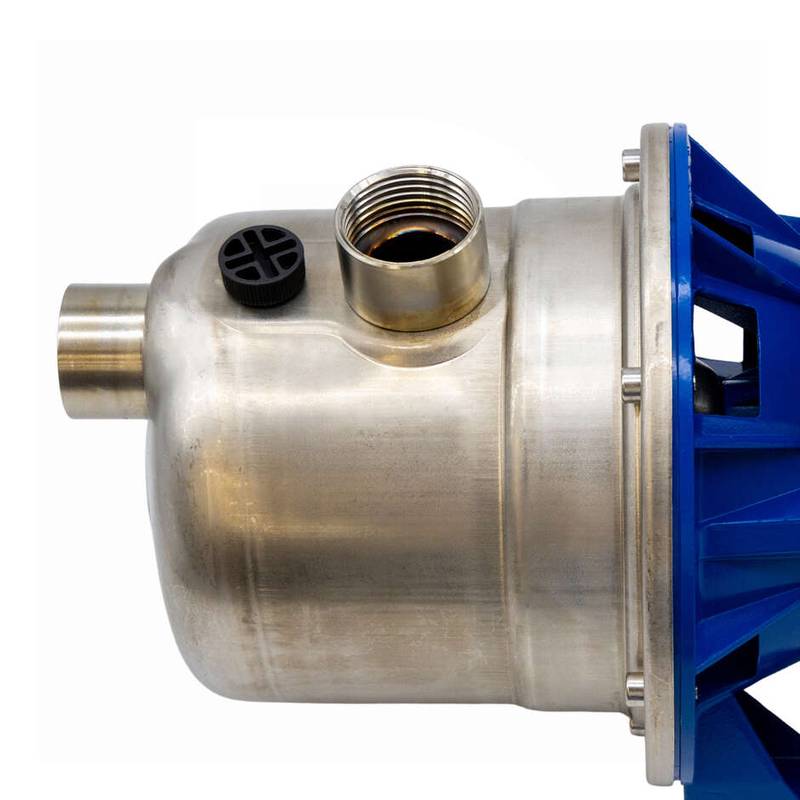

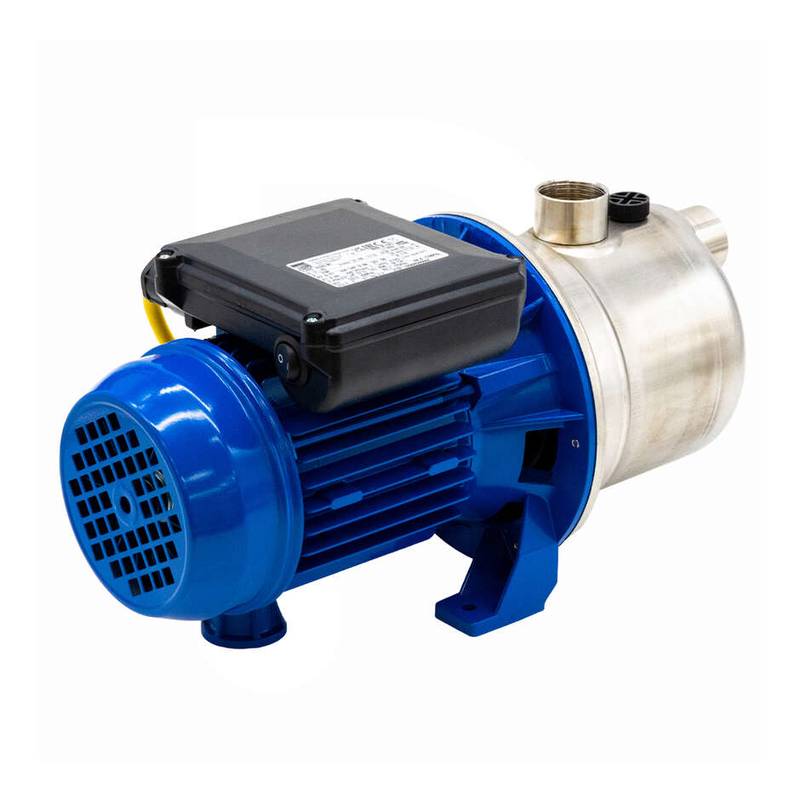

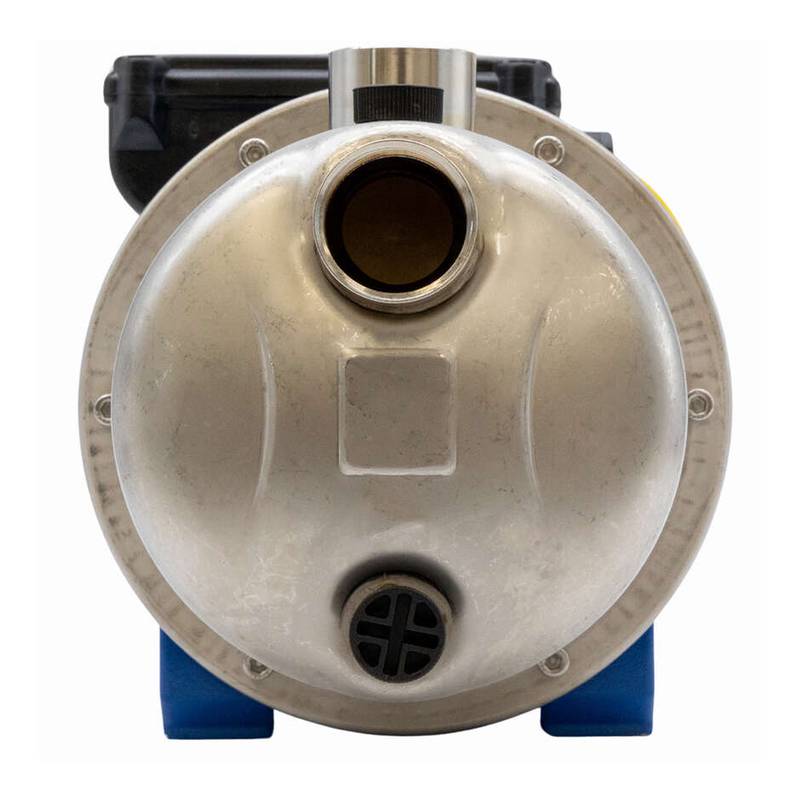

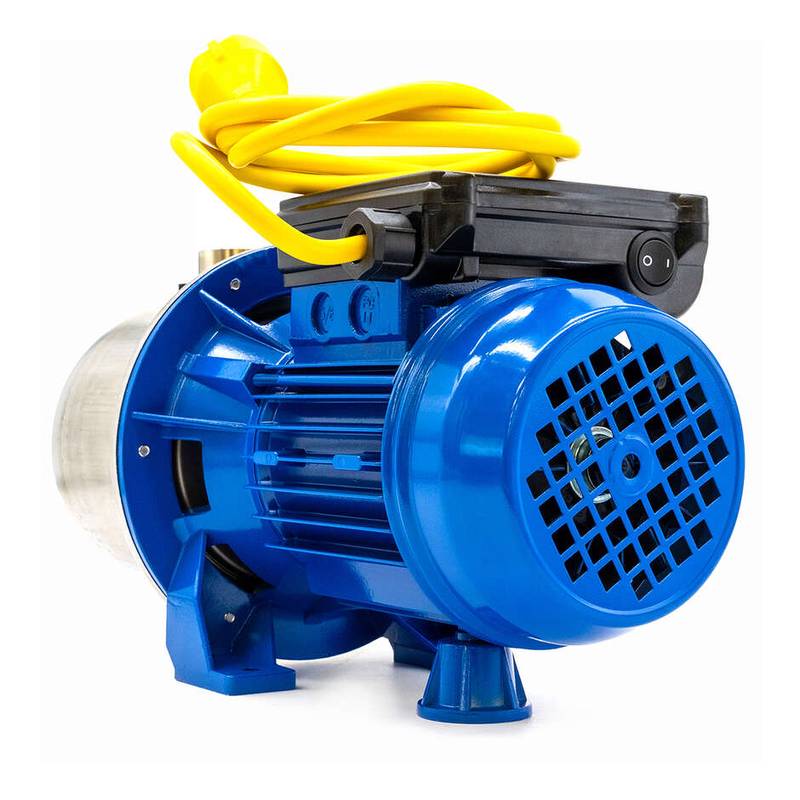

  Self-priming electric pump Ebara JESX 05 300-2700L/h



  Stainless Steel Food Industry Pump for Liquid Transfer High-quality self-priming pump meeting food industry standards, specifically designed for pumping wine, beer, and cider. The pump's working element is made of durable AISI 304 stainless steel.

  Installation Installation service: we install the device on site according to the manufacturer's instructions, connect to the line (mechanical connections) and perform initial setup and test run. Price depends on location, access and scope of work. (price by agreement / quote)

  No Yes

  Kokkuhoid: 0.00€

  399.00€

  399.00€

  Price without VAT

  321.77€

  321.77€

  Add to cart

  Request Quote

  Print
  Availability

  In Stock Pärnu

  3 pcs In Stock

  Shipping information

  Loading…
  Warranty 24 months

  B2B invoice payment

  Spare parts from e-shop
• • Description
  • FAQ
  • Specifications

  • Description

    Stainless Steel Food Industry Pump for Liquid Transfer

    High-quality self-priming pump meeting food industry standards, specifically designed for pumping wine, beer, and cider. The pump's working element is made of durable AISI 304 stainless steel.

    Technical Specifications:

    • Power: 0.37kW
    • Power Supply: 230V/50Hz
    • Protection Class: IP54
    • Insulation Class: F
    • Flow Rate: 5-45 l/min
    • Maximum Head Height: 6 meters
    • Maximum Suction Depth: 8 meters
    • Connection: 25mm
    • Maximum Liquid Temperature: +45°C

    Applications:

    • Wine pumping
    • Beer transfer
    • Cider handling
    • Pumping other non-spirit beverages

    Hose connections included. The pump requires filling with the pumped liquid before startup.

  • Frequently asked questions about this product

    Why must the pump be filled with liquid before starting?

    It is a self-priming pump, so its housing must be filled with the liquid first to create the suction that draws the rest through. Running it dry can damage the working element, so always prime it before switching on.

    Which liquids is it intended for and which should be avoided?

    It is designed for food-grade non-spirit beverages such as wine, beer and cider. The maximum liquid temperature is +45 °C, so it should not be used for hot liquids or for high-proof spirits.

    How do the suction depth and head height affect where I install it?

    The pump can draw from a depth of up to 8 metres and lift the liquid up to a head of 6 metres. Position the pump and plan the hose runs so the source and destination stay within these limits.

    How should the pump be kept food-safe?

    The wetted working element is AISI 304 stainless steel. Flush and clean the pump after each use and store it dry to keep it hygienic for the next food-grade transfer.

  • Specifications

    Length (mm)	370.00
    Width (mm)	190.00
    Height (mm)	200.00
    Weight (kg)	7.00
    Gross Weight (kg)	7.00
    Volume (ml)	2700.00
    Unit	pcs
    Power (W)	370
    Voltage	230V
    Throughput	2700L/h
    Connection size	G1
    Temperature range	45°C – 45°C
    Pressure (bar)	6
    Certifications	CE PED NSF FDA
    Volume (L)	from 300 to 2700 lt/h
    Pump work element	Centrifugal
    Max temperature	45°C
