  Injecting Type Carbonation Machine (Carbonator) 1000L/h

  Three-Tank Industrial Carbonator for Carbonated Beverage Production The fully automatic carbonator is equipped with three special tanks ensuring an efficient production process: Syrup tank for concentrate Mixing tank for component homogenization Final product tank for carbonated beverage Precise dosing is performed by an automatic pump that adds syrup directly into

  Installation Installation service: we install the device on site according to the manufacturer's instructions, connect to the line (mechanical connections) and perform initial setup and test run. Price depends on location, access and scope of work. (price by agreement / quote)

  No Yes

  Kokkuhoid: 0.00€

  15290.00€

  15290.00€

  Price without VAT

  12330.65€

  12330.65€

  To be ordered Delivery time: 21–35 business days

  To be ordered. This product is manufactured to order. The 14-day right of withdrawal does not apply (Law of Obligations Act § 56 (3) 1).

  Add to cart

  Request Quote

  Print
  Availability

  Out of Stock Pärnu

  0 pcs To be ordered

  Shipping information

  Loading…
  Warranty 24 months

  To be ordered – right of return does not apply

  B2B invoice payment

  Spare parts from e-shop
• • Description
  • FAQ
  • Specifications

  • Description

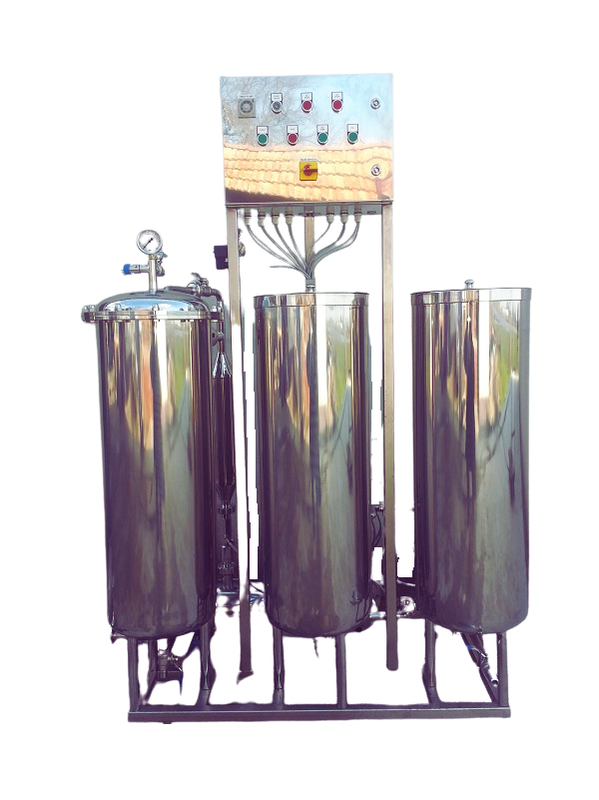

    Three-Tank Industrial Carbonator for Carbonated Beverage Production

    The fully automatic carbonator is equipped with three special tanks ensuring an efficient production process:

    • Syrup tank for concentrate
    • Mixing tank for component homogenization
    • Final product tank for carbonated beverage

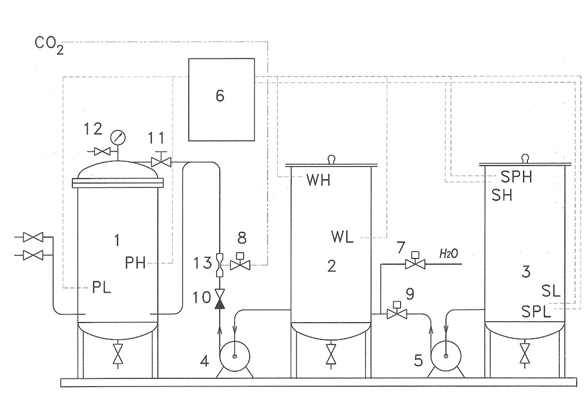

    Precise dosing is performed by an automatic pump that adds syrup directly into the water flow. The mixture then passes through the carbonator where carbon dioxide (CO2) is added. The finished product moves through a closed system directly to the filling machine.

    Technical Specifications

    • Production capacity: 1000 liters per hour
    • Maximum closed tank pressure: 10 bar
    • Operating cycle pressure: 2-4 bar
    • Electrical system: 400V, 50Hz, 3kW
    • Water connection: ½-inch, 1500 l/h, 3-6 bar
    • Device dimensions: 1500x500x1690 mm
    • Weight: approximately 150 kg

    Usage Instructions

    • Water used must be pre-cooled
    • System needs syrup addition only periodically
    • Mixing ratio is determined upon ordering

  • Frequently asked questions about 47942

    What is the productivity of this carbonator?

    The device produces up to 1000 liters of carbonated drink per hour. It is suitable for small and medium volume beverage manufacturers who make lemonade, flavored water or other carbonated beverages. A continuous closed system ensures a stable output without interruptions if the pre-cooled water and syrup are adequately stocked.

    Why does water need to be pre-chilled before carbonation?

    Cold water absorbs CO2 much more efficiently than warm water. Pre-cooling to around 2-4°C maximizes the degree of carbonation, improves beverage stability and reduces foaming during bottling. Without pre-cooling, the finished product has weak carbonation and a shorter shelf life.

    How is the ratio of syrup to water determined?

    The mixing ratio is configured at the factory based on your recipe and specified when ordering. Typical ratios are 1:4 to 1:6 depending on syrup concentration. An automatic pump maintains precise proportions during production, ensuring consistent taste and quality in every bottle.

    What power supply is required?

    The carbonator works with a three-phase 400V, 50Hz power supply and consumes 3kW. A stable electrical connection with an appropriate circuit breaker is recommended. The water supply must provide 1500 l/h at a pressure of 3-6 bar through a ½ inch connection.

    Can the system be connected directly to the bottling machine?

    Yes, the finished product goes directly to the bottling plant through a closed system. This maintains CO2 levels and prevents pollution. The closed design also allows for a continuous production line from syrup dosing to bottling without manual intermediate steps.

  • Specifications

    Length (mm)	1500.00
    Width (mm)	500.00
    Height (mm)	1690.00
    Weight (kg)	150.00
    Gross Weight (kg)	178.00
    Volume (ml)	1000.00
    Unit	pcs
    Power (W)	3000
    Voltage	400V
    Throughput	1000 L/h
    Volume (L)	1000
