  • Plug 8mm Duotight blind

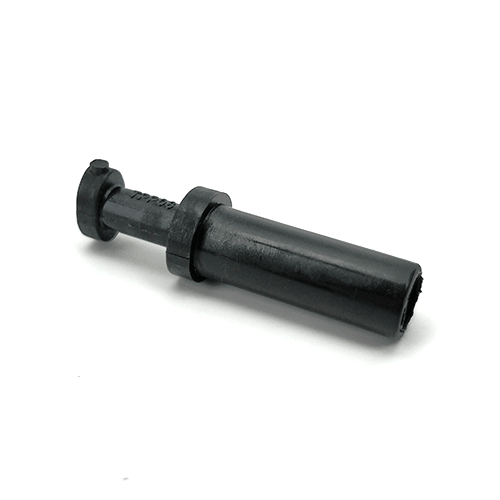

    Plug 8mm Duotight blind
    Plug 8mm Duotight blind
    Plug 8mm Duotight blind
    Plug 8mm Duotight blind
    Plug 8mm Duotight blind

  • SKU: 48794

    EAN: 8809801973153

    Plug 8mm Duotight blind

    Brand

    Professional push-in fitting (plug) for 8mm (5/16") hose with double EPDM o-ring sealing system. Superior leak protection, no clamps required, suitable for gas and liquid up to 100 psi. | push-in fitting, duotight, plug, EPDM, o-ring, 8mm, 5/16", gas fitting, brewing

    Installation Installation service: we install the device on site according to the manufacturer's instructions, connect to the line (mechanical connections) and perform initial setup and test run. Price depends on location, access and scope of work. (price by agreement / quote)
    No Yes

    1.65€

    Price without VAT

    1.33€

    Availability
    In Stock Pärnu 54 pcs In Stock
    Shipping information
    Loading…
    Warranty 24 months
    B2B invoice payment
    Spare parts from e-shop

    • Description

      Plug 8mm Duotight blind

      Usage: Professional push-in fittings for gas and liquid applications in brewing and beverage systems. Duotight fittings are designed for 8mm (5/16") hose connections with superior sealing capacity thanks to double EPDM o-ring design. Suitable for blocking unused ports on tees, elbows or fittings during gas leak testing or to plug unused sections.

      Features: Double o-ring sealing system provides twice the sealing surface compared to standard push-in fittings, significantly reducing leak risk. Allows tighter hose bending radius without leaking. No clamps required - simply push hose in until it stops. To remove, push collet and pull hose out. Cut hose straight (not angled) for optimal seal. Two food-grade EPDM o-rings per connection.

      Technical data: Maximum working pressure: 100 psi. Hose size: 8mm (5/16"). Material: EPDM (Ethylene Propylene Rubber) o-rings. EPDM properties: excellent chemical resistance (ozone, oils, alkaline/acid compounds, water, alcohol, ketones, beverages), superior aging/weather resistance, better gas transmission rates than silicone/vinyl, excellent wear resistance, BPA-free, food-grade approved.

    • Frequently asked questions about this product

      How do I install and remove this push-in plug correctly?

      Push the plug or hose in until it stops so the o-rings seal, and to remove it press the collet inward while pulling out. Cutting any mating hose straight rather than at an angle is important for an optimal seal.

      What is the double o-ring design for?

      The two food-grade EPDM o-rings provide twice the sealing surface of a standard push-in fitting, significantly reducing leak risk in gas and liquid systems. This makes the plug well suited to sealing unused ports during gas leak testing.

      Where is a blind plug like this typically used?

      It is used to block unused ports on tees, elbows or fittings, or to plug unused sections of a brewing or beverage system. This lets you pressure-test or run a line without fluid or gas escaping from open connections.

      What pressure and hose size is it rated for?

      It is designed for 8 mm connections with a maximum working pressure of 100 psi, using EPDM o-rings suited to gas and liquid beverage applications. Staying within the rated pressure and hose size preserves the seal integrity.

    • Specifications

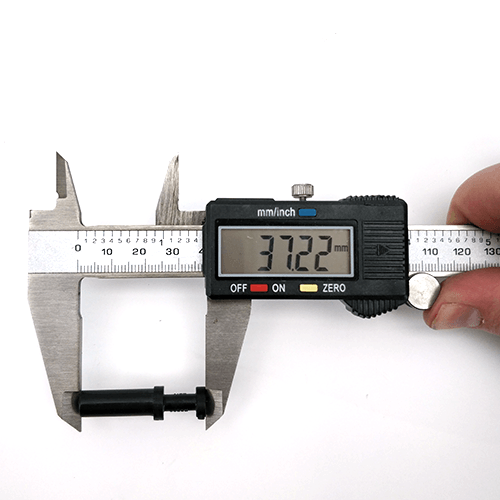

      Length (mm)19.00
      Width (mm)19.00
      Height (mm)29.00
      Weight (kg)0.00
      Gross Weight (kg)0.20
      Unitpcs
      Certifications

      CE

      Material

      Plastic

      Silicone

      Food compliance

      Compliant EU 1935/2004

      Compliant EU 10/2011

      Food contact certified

      Food contact test protocolEU 10/2011 + EU 1935/2004 · üldmigratsioon 10/20% etanool + 3% äädikhape 70°C/2h (EN 1186) · metallid + arom. amiinid + ftalaadid (EN 13130) N.D. · ftalaadid 95% etanool 40°C/2h · materjal EVA/POK · BORY B2504TR90110S01 (2025) — vastav

    • Files

      PDF
      CE-declaration
      917.36 KB · EVA-DUOTIGHT-OK-10.pdf
      PDF
      kegs-EU-food-contact-testing-report-41.pdf
      804.86 KB · kegs-EU-food-contact-testing-report-41.pdf
      PDF
      FOOD · 48794 · (EN)
      917.36 KB · duotight-food-cert-9.pdf
