  • Reduction DIN-25 thread x BSP 1/2 F

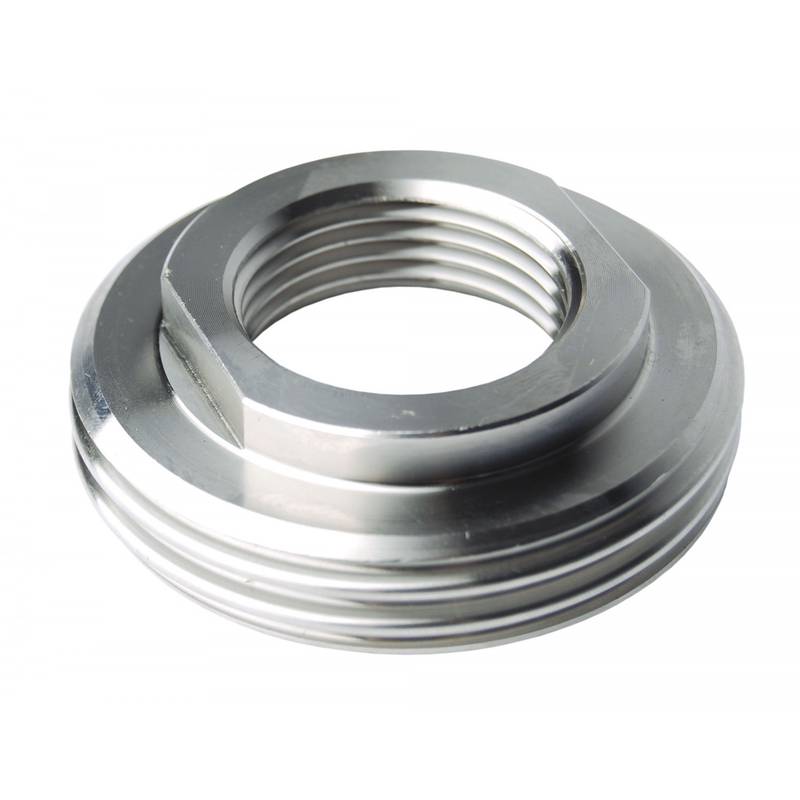

    Reduction DIN-25 thread x BSP 1/2 F

  • SKU: 018.227.25BSP12

    EAN: 20000000536985

    Reduction DIN-25 thread x BSP 1/2 F

    Brand

    DIN 25 to BSP 1/2 Female Thread Adapter for Juice Presses High-quality metal adapter that allows connecting a DIN 25 standard fitting to a BSP 1/2 inch female thread. This adapter is ideal for connecting juice presses, juice production equipment, and liquid pumps. Adapter

    Installation Installation service: we install the device on site according to the manufacturer's instructions, connect to the line (mechanical connections) and perform initial setup and test run. Price depends on location, access and scope of work. (price by agreement / quote)
    No Yes

    64.90€

    Price without VAT

    52.34€

    To be ordered Delivery time: 21–35 business days
    To be ordered. This product is manufactured to order. The 14-day right of withdrawal does not apply (Law of Obligations Act § 56 (3) 1).
    Availability
    Out of Stock Pärnu 0 pcs To be ordered
    Shipping information
    Loading…
    Warranty 24 months
    To be ordered – right of return does not apply
    B2B invoice payment
    Spare parts from e-shop

    • Description

      DIN 25 to BSP 1/2 Female Thread Adapter for Juice Presses

      High-quality metal adapter that allows connecting a DIN 25 standard fitting to a BSP 1/2 inch female thread. This adapter is ideal for connecting juice presses, juice production equipment, and liquid pumps.

      Adapter Technical Specifications:

      • Input: DIN 25 fitting
      • Output: BSP 1/2" female thread
      • Material: 304 stainless steel
      • Food industry compliant
      • Maximum working pressure: 10 bar

      Durable adapter suitable for use in both juice pressing and other liquid pumping applications. Ensures secure and leak-proof connection between equipment. Easy to install and maintain.

      Suitable for use in apple, berry, and fruit juice equipment and food industry production lines.

    • Frequently asked questions about this product

      What does this adapter let me connect?

      It converts a DIN 25 standard fitting to a BSP 1/2" female thread, useful for joining juice presses, juice-production equipment and liquid pumps that use different connection standards.

      What is the maximum working pressure?

      It is rated for up to 10 bar working pressure, so keep system pressure within that limit for safe, leak-free operation.

      How do I seal the BSP thread properly?

      BSP parallel threads seal best with PTFE tape or a suitable thread sealant; hand-tighten and then snug it with a wrench without overstressing the thread.

      Is it appropriate for food liquids?

      Yes, it is 304 stainless steel and food-industry compliant, suitable for pumping juice and other food liquids; rinse and dry after use to prevent residue build-up.

    • Specifications

      Length (mm)50.00
      Width (mm)50.00
      Height (mm)20.00
      Weight (kg)0.40
      Gross Weight (kg)0.50
      Unitpcs
      Pressure (bar)10
      Connection sizeBSP 1/2
      Material

      Stainless steel
