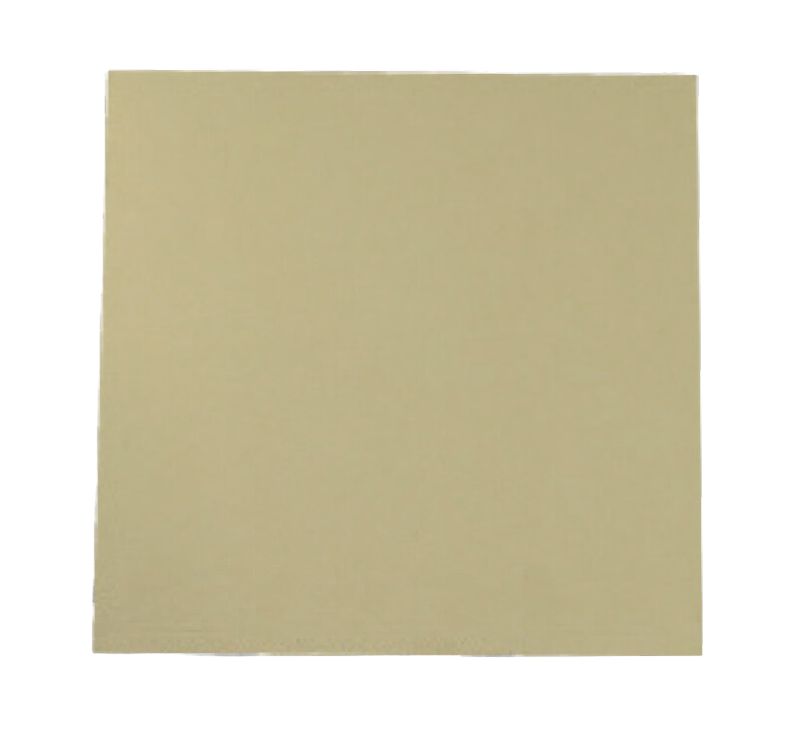

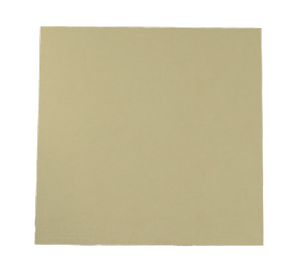

  Filter plate 40x40cm S30N (V.14) 4µ 25pcs



  Filter Plates 40x40cm for Liquids - Professional Solution High-quality filter plates for efficient liquid filtration, measuring 40x40 centimeters. The set includes 25 plates equipped with a 4-micron filtration structure.

  Installation Installation service: we install the device on site according to the manufacturer's instructions, connect to the line (mechanical connections) and perform initial setup and test run. Price depends on location, access and scope of work. (price by agreement / quote)

  No Yes

  Kokkuhoid: 0.00€

  49.00€

  49.00€

  Price without VAT

  39.52€

  39.52€

  Add to cart

  Request Quote

  Print
  Availability

  In Stock Pärnu

  19 pcs In Stock

  Shipping information

  Loading…
  Warranty 24 months

  B2B invoice payment

  Spare parts from e-shop
• • Description
  • FAQ
  • Specifications
  • Files

  • Description

    Filter Plates 40x40cm for Liquids - Professional Solution

    High-quality filter plates for efficient liquid filtration, measuring 40x40 centimeters. The set includes 25 plates equipped with a 4-micron filtration structure.

    Technical Specifications:

    • Dimensions: 40 x 40 cm
    • Pore size: 4 microns
    • Plate thickness: 3.6 mm
    • Quantity per package: 25 pcs
    • Maximum allowable pressure difference: 3 bar

    These durable filter plates are ideal for filtering wines, juices, and other liquids. The plates ensure uniform and efficient filtration results, effectively removing suspended particles and ensuring a clear end result.

    The filter plates are easy and safe to use, following the maximum allowable pressure difference of 3 bar. A professional solution for industrial and small-scale filtration processes.

  • Frequently asked questions about 1276

    What are these filter plates used for?

    40x40cm S30N plates with 4-micron pore size are designed for fine filtration of wines, juices, vinegars and other beverages. They effectively remove suspended particles, yeast residues and turbidity, giving a clear final product suitable for bottling.

    What is the maximum allowable pressure difference?

    The maximum permissible pressure difference between the plates is 3 bar. Exceeding this value can damage the plates and reduce the filtration quality. We recommend monitoring the pressure during operation and replacing the plates when approaching the limit.

    How many tiles are in one package?

    Each package contains 25 filter plates measuring 40 x 40 cm and 3.6 mm thick. This quantity is suitable for fully loading standard 40x40 plate filters used in small and medium-sized wine and juice production.

    Are the plates suitable for food grade use?

    Yes, these filter plates are made of food grade cellulose materials and are suitable for contact with beverages and other food liquids. They are widely used in wine cellars, cider houses and juice production.

    Can the tiles be recycled?

    The filter plates are intended for single use. After filtration, they become saturated with trapped particles and cannot maintain their original performance. Changing the plates after each filtration cycle ensures consistent clarity and hygienic results.

  • Specifications

    Length (mm)	400.00
    Width (mm)	400.00
    Height (mm)	100.00
    Weight (kg)	5.15
    Gross Weight (kg)	5.50
    Unit	pcs
    Pressure (bar)	3
    Certifications	CE PED
    Material	Other material

  • Files

    PDF

    FOOD · 1276 · (EN)

    260.62 KB · POLS-FILTER-SHEETS.pdf
