• SKU: 1286

  EAN: 20000000538484

  Dispenser with pump ENOS 20 Inox autom.



  Automatic system studied for installations in shop of bulk products (eg vinerie).. | Dispenser, pump, ENOS, Inox, autom, Enoitalia, stainless steel

  Installation Installation service: we install the device on site according to the manufacturer's instructions, connect to the line (mechanical connections) and perform initial setup and test run. Price depends on location, access and scope of work. (price by agreement / quote)

  No Yes

  Kokkuhoid: 0.00€

  1390.00€

  1390.00€

  Price without VAT

  1120.97€

  1120.97€

  To be ordered Delivery time: 21–35 business days

  To be ordered. This product is manufactured to order. The 14-day right of withdrawal does not apply (Law of Obligations Act § 56 (3) 1).

  Add to cart

  Request Quote

  Print
  Availability

  Out of Stock Pärnu

  0 pcs To be ordered

  Shipping information

  Loading…
  Warranty 24 months

  To be ordered – right of return does not apply

  B2B invoice payment

  Spare parts from e-shop
• • Description
  • FAQ
  • Specifications

  • Description

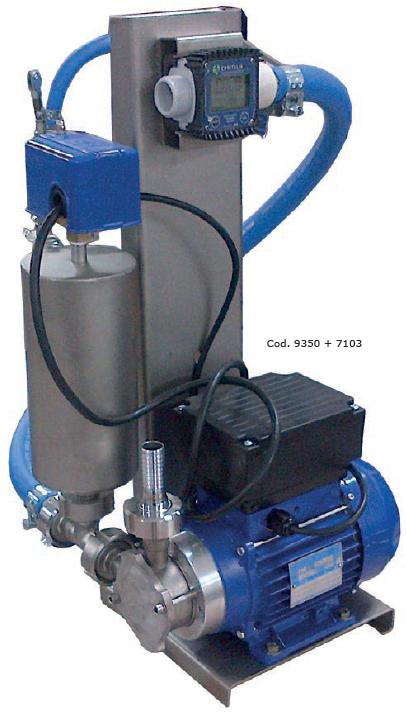

    Dispenser with pump ENOS 20 Inox autom.

    Usage: Automatic system studied for installations in shop of bulk products (eg vinerie).. The system include a volumetric pump EURO 20 , a non-return valve in stainless steel, an accumulation tank in stainless steel, an automatic pressure switch.. This machine is connected directly to the drain valve of the tank (installed on the tank itself, or on a stainless steel trolley), and allows to reach constant pressure, maximum distances of 20 meters and a height difference of 10 meters..

    Features:

    • Volumetric pump EURO 20 with rubber impeller
    • Fitting DIN 20/25
    • Cable for electricity 220V 50hz singlephase
    • Stainless steel support without wheels
    • Stainless steel pressure tank, with no-foam valve
    • Automatic pressure switch
    • One way inox valve
    • Rubber pipe

    Technical data:

    • 9350: Single-phase
    • 220V
    • Capacity: 1000L/h
    • Dim: 240x300x430mm
    • Weight: 20kg

    ⚡ Important: Motor requires a grounded 220V socket (Schuko). Connection must comply with local electrical regulations.

  • Frequently Asked Questions

    What is the maximum dosing distance?

    The system allows a maximum horizontal distance of 20 meters and a vertical height difference of up to 10 meters, maintaining constant pressure thanks to the EURO 20 volume pump and stainless steel collection vessel with automatic pressure switch.

    What materials are the parts in contact with the liquid made of?

    All parts in contact with the liquid — check valve, pressure vessel and one-way valve — are made of stainless steel, making the system food-safe and suitable for wine, oil and other bulk beverages.

    How does the device get power?

    The dispenser works with 220V 50Hz single-phase power and requires a grounded Schuko socket. Installation must comply with local electrical requirements. The total productivity of the system reaches 1000 L/h.

    How does the system connect to the vessel?

    The connection is made directly to the outlet valve of the vessel with a DIN 20/25 connection. The system can be installed either on the vessel itself or with a stainless steel trolley for mobile use.

    What is a foam prevention valve?

    An antifoam valve installed in the stainless steel pressure vessel prevents foaming during dosing, which is especially important when handling wine and other carbonated or aerated liquids, ensuring a clean and accurate pour.

  • Specifications

    Length (mm)	240.00
    Width (mm)	300.00
    Height (mm)	430.00
    Weight (kg)	20.00
    Gross Weight (kg)	21.00
    Unit	pcs
    Power (W)	370
    Voltage	230V
    Throughput	1000 L/h
    Material	Stainless steel
