  • Sensor Carbo 5100 set for CO2 measurement Anton Paar

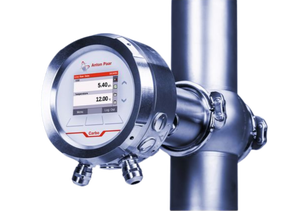

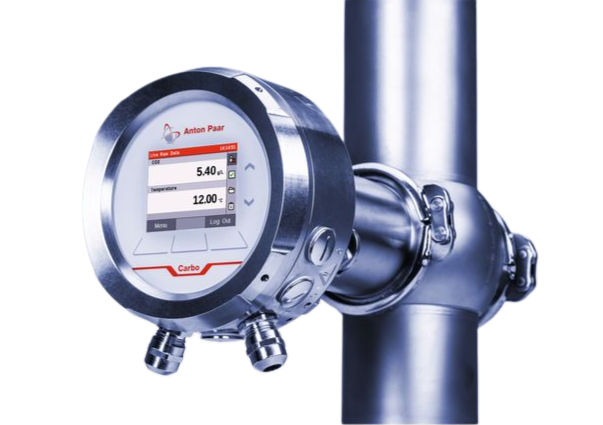

    Sensor Carbo 5100 set for CO2 measurement Anton Paar

  • SKU: 1405

    EAN: 20000000539528

    Sensor Carbo 5100 set for CO2 measurement Anton Paar

    Brand

    Anton Paar Carbo 5100 - Precise CO2 Analyzer for Beverage Industry Anton Paar Carbo 5100 is a fourth-generation inline CO2 analyzer specifically designed for quality control in the beverage industry. This modern device uses an innovative pressure-temperature-impeller method, ensuring continuous and accurate carbon dioxide content measurement during the production process.

    Installation Installation service: we install the device on site according to the manufacturer's instructions, connect to the line (mechanical connections) and perform initial setup and test run. Price depends on location, access and scope of work. (price by agreement / quote)
    No Yes

    18600.00€

    Price without VAT

    15000.00€

    To be ordered Delivery time: 21–35 business days
    To be ordered. This product is manufactured to order. The 14-day right of withdrawal does not apply (Law of Obligations Act § 56 (3) 1).
    Availability
    Out of Stock Pärnu 0 pcs To be ordered
    Shipping information
    Loading…
    Warranty 24 months
    To be ordered – right of return does not apply
    B2B invoice payment
    Spare parts from e-shop

    • Description

      Anton Paar Carbo 5100 - Precise CO2 Analyzer for Beverage Industry

      Anton Paar Carbo 5100 is a fourth-generation inline CO2 analyzer specifically designed for quality control in the beverage industry. This modern device uses an innovative pressure-temperature-impeller method, ensuring continuous and accurate carbon dioxide content measurement during the production process.

      Accurate Measurement Results and Durable Design

      Carbo 5100 provides exceptionally accurate measurement results:

      • Fast measurement interval: only 15 seconds
      • Wide measurement range: 0-20 g/L (0-10 volume percent)
      • High accuracy: ±0.05 g/L
      • Excellent repeatability: 0.025 g/L

      Reliability in All Conditions

      The device is designed to operate in challenging production conditions:

      • Operating temperature: -5 to +40 °C
      • Freeze-proof construction
      • SIP capability: withstands up to 121 °C for 30 minutes
      • EHEDG certified safety
      • Industrial Tuchenhagen Varivent® N connection

      Operating Principle and Usage

      Carbo 5100 uses an innovative measurement method, combining pressure and temperature measurement with impeller technology. This enables real-time quality control in beverage production processes and ensures consistent production quality.

      Applications

      The device is ideal for:

      • Soft drink production
      • Beer industry
      • Cider and wine bottling lines
      • Mineral water production

    • Frequently asked questions about this product

      How does the Carbo 5100 measure CO2?

      It uses a pressure-temperature-impeller method to measure dissolved CO2 inline during production. This gives real-time readings without taking samples to a lab.

      How fast and accurate are its readings?

      It measures every 15 seconds with an accuracy of ±0.05 g/L and repeatability of 0.025 g/L across a 0–20 g/L range. That supports tight carbonation control on the line.

      Can it be cleaned in place and handle harsh conditions?

      It is SIP-capable up to 121 °C for 30 minutes and has a freeze-proof construction, operating from -5 to +40 °C. So it survives sterilisation and cold production areas.

      How does it connect to the process line?

      It uses an industrial Tuchenhagen Varivent N connection. This mounts directly into hygienic piping common in beverage plants.

      Is it hygienic-certified and which drinks suit it?

      It is EHEDG certified for hygienic design and fits soft drinks, beer, cider, wine bottling and mineral water. That covers most carbonated beverage lines.

    • Specifications

      Length (mm)600.00
      Width (mm)400.00
      Height (mm)400.00
      Weight (kg)0.02
      Gross Weight (kg)0.10
      Unitpcs
      Temperature range40°C — 121°C
      Voltage10
      Measurement range0-10 bar
      Measurement accuracy±2,5%
      Material

      Stainless steel
