  • Filler DANA API MATIC 2000+ adjustable with rotary table + 10L funnel

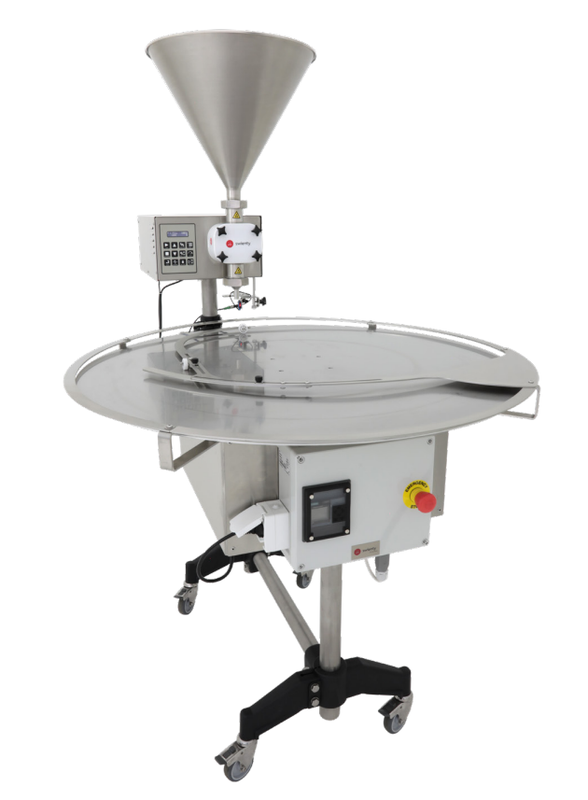

    Filler DANA API MATIC 2000+ adjustable with rotary table + 10L funnel
    ▶

  • SKU: 1410

    EAN: 20000000539573

    Filler DANA API MATIC 2000+ adjustable with rotary table + 10L funnel

    Swienty DANA api MATIC 2000+ Industrial Automatic Filling Station Swienty DANA api MATIC 2000+ filling station is an industrial filling device that enables efficient and precise liquid dosing. The heart of the device is a powerful gear pump that ensures accurate filling and easy setup through a modern control panel.

    Installation Installation service: we install the device on site according to the manufacturer's instructions, connect to the line (mechanical connections) and perform initial setup and test run. Price depends on location, access and scope of work. (price by agreement / quote)
    No Yes

    13600.00€

    Price without VAT

    10967.74€

    To be ordered Delivery time: 21–35 business days
    To be ordered. This product is manufactured to order. The 14-day right of withdrawal does not apply (Law of Obligations Act § 56 (3) 1).
    Availability
    Out of Stock Pärnu 0 pcs To be ordered
    Shipping information
    Loading…
    Warranty 24 months
    To be ordered – right of return does not apply
    B2B invoice payment
    Spare parts from e-shop

    • Description

      Swienty DANA api MATIC 2000+ Industrial Automatic Filling Station

      Swienty DANA api MATIC 2000+ filling station is an industrial filling device that enables efficient and precise liquid dosing. The heart of the device is a powerful gear pump that ensures accurate filling and easy setup through a modern control panel. All parts in contact with food are made of high-quality food grade materials and are easy to clean.

      Filling Process and Functions

      The innovative turntable automatically transports empty jars to the filling unit. The filling process starts automatically when the sensor detects the correct position of the jar. Filled jars then move to the central collection area, enabling a smooth and continuous work process.

      Application

      DANA api MATIC 2000+ is specially designed for professional industrial use, ideal for precise filling of honey, liquid foods, and other liquids. The device ensures uniform and continuous filling process at high production volumes.

      Technical Specifications

      • Power consumption: 575W
      • Power supply: 90-264VAC 50/60Hz
      • Dosing accuracy: +/- 1g
      • Pump capacity: 400 l/h
      • Noise level: below 70 dB(A)
      • Normal filling temperature: up to 40°C
      • Hot filling temperature: up to 95°C
      • Storable programs: over 20

      Capacity and Connections

      • Jar diameter: 30-115 mm
      • Jar height: 30-190 mm
      • Hose connections: 1½" BS on both sides of the pump

    • Frequently asked questions about this product

      How does the DANA api MATIC 2000+ handle jars automatically?

      An innovative turntable automatically transports empty jars to the filling unit. A sensor detects the correct jar position and starts the fill automatically. Filled jars then move to the central collection area for continuous work.

      How accurate is the honey dosing?

      The gear pump doses to an accuracy of +/-1 g per jar. Accurate dosing matters for high-value products like honey sold by weight. Over 20 programs can be stored for different jars and fills.

      Can it fill warm or hot honey and liquids?

      It handles normal filling up to 40°C and hot filling up to 95°C. That range covers cold-packed honey through to hot-filled liquid foods. The gear pump moves both thin and thicker liquids.

      What jar sizes does the station accept?

      It takes jars from 30-115 mm in diameter and 30-190 mm in height. This covers small honey jars up to tall containers. Hose connections are 1½" BS on both sides of the pump.

      What power and noise levels should I expect?

      It draws 575 W from a 90-264 VAC, 50/60 Hz supply, so it suits most mains. The noise level stays below 70 dB(A) during operation. Food-contact parts are food-grade and easy to clean.

    • Specifications

      Length (mm)300.00
      Width (mm)200.00
      Height (mm)150.00
      Weight (kg)5.00
      Gross Weight (kg)161.00
      Volume (ml)10000.00
      Unitpcs
      Power (W)575
      Throughput400 L/h
      Noise level (dB)70
      Voltage264
      Volume (L)10
