  • Isobaric filler RLV2-iSo + rinser + CO2 pre
    Isobaric filler RLV2-iSo + rinser + CO2 pre

  • SKU: 8999487

    EAN: 2000000005966

    Isobaric filler RLV2-iSo + rinser + CO2 pre

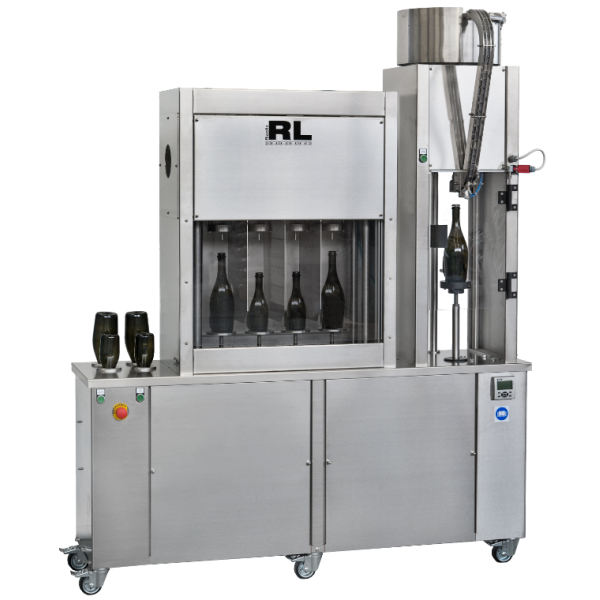

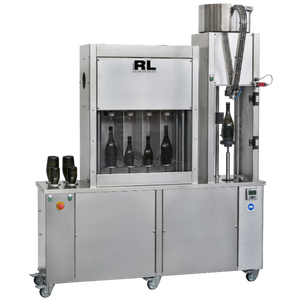

    Semi-Automatic Filling Line for Carbonated Beverages - Washer, Filler, and Capper High-quality Italian manufactured semi-automatic filling set including container washing unit, 4-head isobaric filler, and crown cap applicator. The unit is adaptable with 2 or 6 filling heads and suitable for both crown caps and screw caps.

    Installation Installation service: we install the device on site according to the manufacturer's instructions, connect to the line (mechanical connections) and perform initial setup and test run. Price depends on location, access and scope of work. (price by agreement / quote)
    No Yes

    22407.00€

    Price without VAT

    18070.16€

    To be ordered Delivery time: 21–35 business days
    To be ordered. This product is manufactured to order. The 14-day right of withdrawal does not apply (Law of Obligations Act § 56 (3) 1).
    Availability
    Out of Stock Pärnu 0 pcs To be ordered
    Shipping information
    Loading…
    Warranty 24 months
    To be ordered – right of return does not apply
    B2B invoice payment
    Spare parts from e-shop

    • Description

      Semi-Automatic Filling Line for Carbonated Beverages - Washer, Filler, and Capper

      High-quality Italian manufactured semi-automatic filling set including container washing unit, 4-head isobaric filler, and crown cap applicator. The unit is adaptable with 2 or 6 filling heads and suitable for both crown caps and screw caps.

      Application and Technical Specifications

      • Suitable for carbonated beverages: beer, cider, sparkling wine, carbonated water
      • Maximum filling pressure: 5 bar
      • Power consumption: 0.37kW/220V
      • Compressed air requirement: 120l/min/6bar, 24V
      • Machine dimensions: 1.92m x 0.8m x 0.40m
      • Maximum bottle dimensions: height 350mm, diameter 120mm

      Machine Benefits and Additional Features

      • Automatic filling process control
      • Pneumatic pump for liquid transfer
      • CO2 pre-insertion for foam-free filling
      • Transparent automatic safety door
      • Washing liquid recycling system
      • Automatic cap feeder with vibration system
      • Enhanced oxygen removal through water spraying

      Included Accessories

      • Integrated pressure washer
      • 1" connection valve seal kit
      • Adjustable filling level tubes
      • Cleaning dummies for valve maintenance
      • Non-return valve

    • Frequently asked questions about this product

      What does this filling set include?

      It is a complete semi-automatic line with a container washing unit, a 4-head isobaric filler and a crown-cap applicator. So washing, filling and capping run as one set rather than three separate purchases. It suits small producers building a first bottling line.

      Can the heads and cap types be adapted?

      Yes, the filler is adaptable with 2 or 6 filling heads and works with both crown caps and screw caps. So you can size it to your output and bottle type. That flexibility covers beer, cider and sparkling-wine bottles.

      How does it fill foam-free and limit oxygen?

      CO2 pre-insertion equalises pressure for foam-free filling of carbonated drinks, and enhanced oxygen removal sprays water during the process. Together these protect carbonation and flavour on beer or cider. The isobaric design keeps the gas in the bottle.

      Which drinks and what pressure does it handle?

      It is built for carbonated beverages including beer, cider, sparkling wine and carbonated water, at a maximum filling pressure of 5 bar. The integrated pressure washer cleans containers before filling. That makes it a self-contained carbonated line.

      What utilities and bottle sizes apply?

      It draws 0.37 kW on 220 V, needs compressed air at 120 l/min and 6 bar, and the frame measures 1.92 x 0.8 x 0.40 m. Bottles up to 350 mm tall and 120 mm in diameter fit. Confirm air and power before installation.

    • Specifications

      Length (mm)1920.00
      Width (mm)800.00
      Height (mm)400.00
      Weight (kg)55.00
      Gross Weight (kg)62.00
      Unitpcs
      Power (W)370
      Voltage230V, 24V
      Pressure (bar)5
      Volume (L)120
