  • Conical tank 1100L insulated with cooling jacket

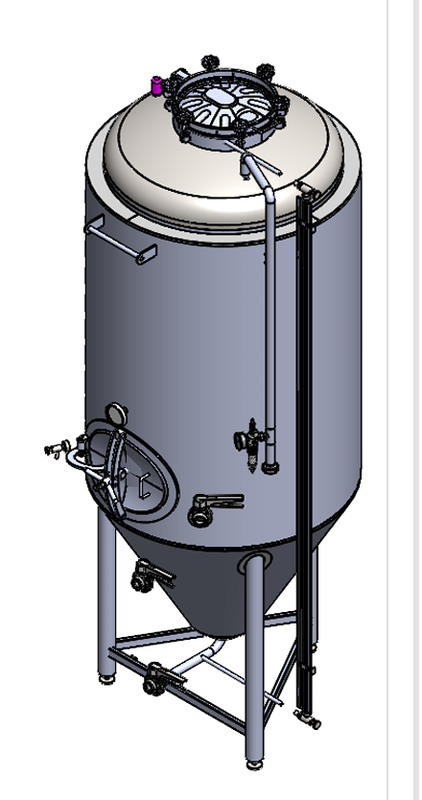

    Conical tank 1100L insulated with cooling jacket

  • SKU: 1583

    EAN: 20000000541231

    Conical tank 1100L insulated with cooling jacket

    Brand

    Conical tank 1100l insulated, with cooling jacket The conical tank is designed for storing and processing various liquids. The tank is equipped with a cooling jacket that allows temperature regulation of the contents. The 60° conical bottom ensures effective liquid separation and easy cleaning.

    Installation Installation service: we install the device on site according to the manufacturer's instructions, connect to the line (mechanical connections) and perform initial setup and test run. Price depends on location, access and scope of work. (price by agreement / quote)
    No Yes

    11490.00€

    Price without VAT

    9266.13€

    To be ordered Delivery time: 21–35 business days
    To be ordered. This product is manufactured to order. The 14-day right of withdrawal does not apply (Law of Obligations Act § 56 (3) 1).
    Availability
    Out of Stock Pärnu 0 pcs To be ordered
    Delivery 5-10
    Shipping information
    Loading…
    Warranty 24 months
    To be ordered – right of return does not apply
    B2B invoice payment
    Spare parts from e-shop

    • Description

      Conical tank 1100L insulated with cooling jacket

      Conical tank 1100l insulated, with cooling jacket

      The conical tank is designed for storing and processing various liquids. The tank is equipped with a cooling jacket that allows temperature regulation of the contents. The 60° conical bottom ensures effective liquid separation and easy cleaning. The 50 mm thick polyurethane foam insulation helps maintain a stable temperature, reducing energy consumption. The tank can be used in the production process of beverages and other liquids where temperature control and hygiene are important.

      Standard equipment:
      - 60° cone
      - Pressure valve, set up to 5 bar
      - Cooling jacket on trunk and cone
      - 4 × fitting for cooling/heating ½''
      - Insulation PU foam 50 mm
      - Bottom outlet DN40
      - Upper outlet DN40
      - Thermometer
      - Sample tap DN15
      - Spray ball with tube DN25 and blind nut
      - Manhole Ø400 mm

      The tank allows efficient temperature regulation, which is essential for producing quality beverages. The cooling jacket throughout the cone ensures even temperature distribution. The sample tap allows convenient quality control of the contents during the production process.

    • Frequently asked questions about 1583

      What is the total capacity of the tank?

      The nominal working volume is 1100 L. The 60° conical bottom and cylindrical body are designed to efficiently accommodate this volume, leaving extra space for foaming in fermentation processes.

      How does a cooling shirt work?

      The cooling jacket covers both the body and the cone, ensuring even temperature distribution throughout the liquid. It is connected via 4× ½'' fittings and can circulate glycol or chilled water for precise temperature control.

      What material is the container made of?

      The container is made of AISI 304 stainless steel, which offers excellent corrosion resistance and is fully food grade. All welds are sanitary and the inner surface is polished for easy cleaning and to meet hygiene requirements.

      What is the maximum working pressure?

      The pressure valve is set up to 5 bar, which allows safe working under pressure for carbonation or closed fermentation. The valve automatically releases excess pressure to protect the tank from overpressurization.

      How is the tank cleaned?

      Cleaning is done through an integrated wash ball with a DN25 pipe compatible with CIP systems. A Ø400mm hatch allows manual inspection and access, while a 60° tapered bottom ensures full drainage via a DN40 outlet.

    • Specifications

      Length (mm)955.00
      Width (mm)955.00
      Height (mm)2900.00
      Weight (kg)210.00
      Gross Weight (kg)236.00
      Volume (ml)1100000.00
      Unitpcs
      Pressure (bar)5
      Material

      Stainless steel

      Product type

      Conical tank

      Volume (L)1100
