SKU: KL24341
EAN: 20000000541903
Replacement magnetic drive pump BrewZilla 6W
Replacement 6W Magnetic Drive Pump for BrewZilla Gen 4 This magnetic drive pump is the ideal solution for your beer brewing system. The pump can withstand temperatures up to 120°C, making it suitable for use directly with boiling liquid without prior cooling. It is an.
Installation Installation service: we install the device on site according to the manufacturer's instructions, connect to the line (mechanical connections) and perform initial setup and test run. Price depends on location, access and scope of work. (price by agreement / quote)No Yes92.90€
Price without VAT74.92€
To be ordered Delivery time: 21–35 business daysTo be ordered. This product is manufactured to order. The 14-day right of withdrawal does not apply (Law of Obligations Act § 56 (3) 1).0Europe/Tallinnout_of_stock_products0AvailabilityOut of Stock Pärnu 0 pcs To be ordered Out of Stock Supplier warehouse 0 pcs To be ordered Delivery 7-14 Shipping informationLoading…Warranty 24 monthsTo be ordered – right of return does not applyB2B invoice paymentSpare parts from e-shop -
-
Description

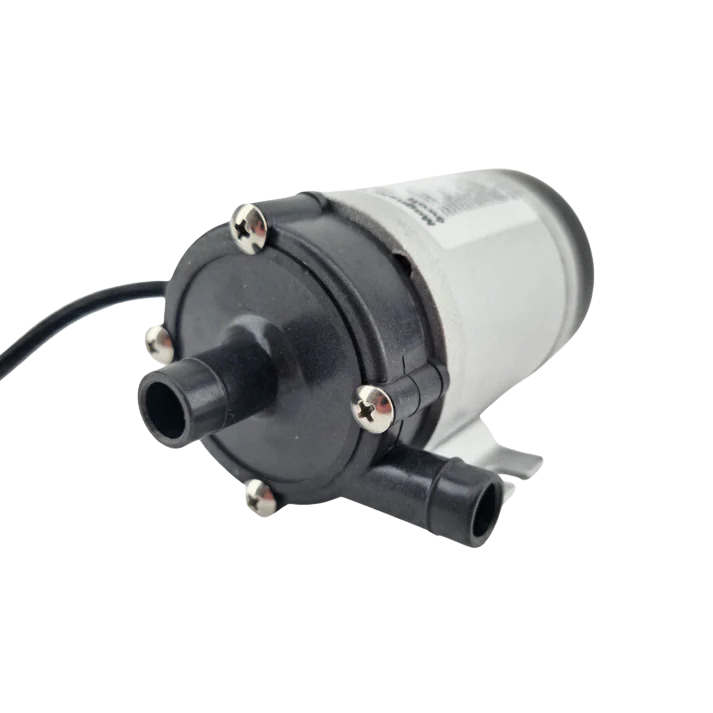

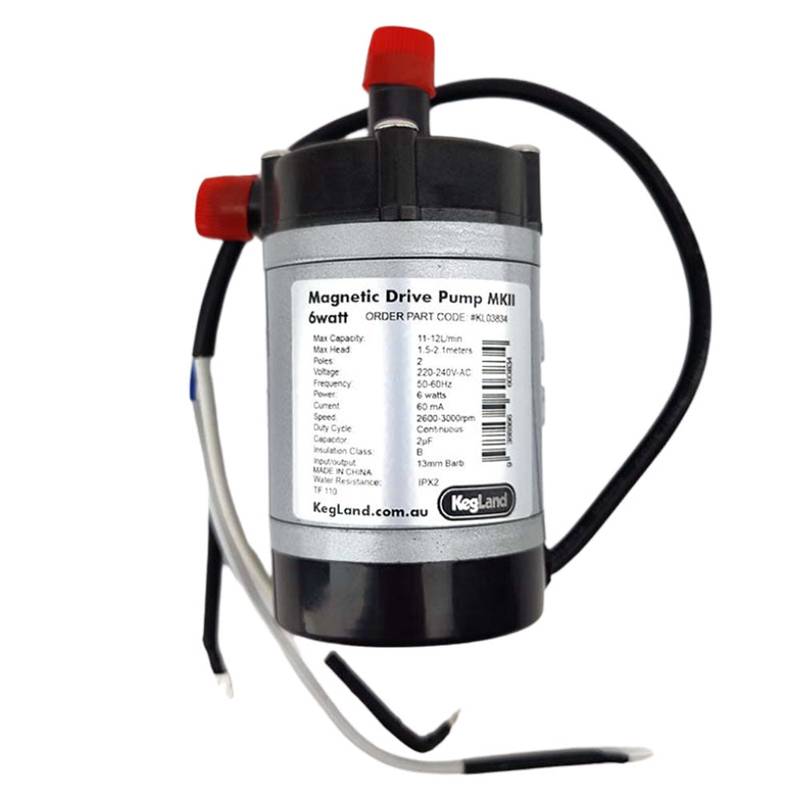

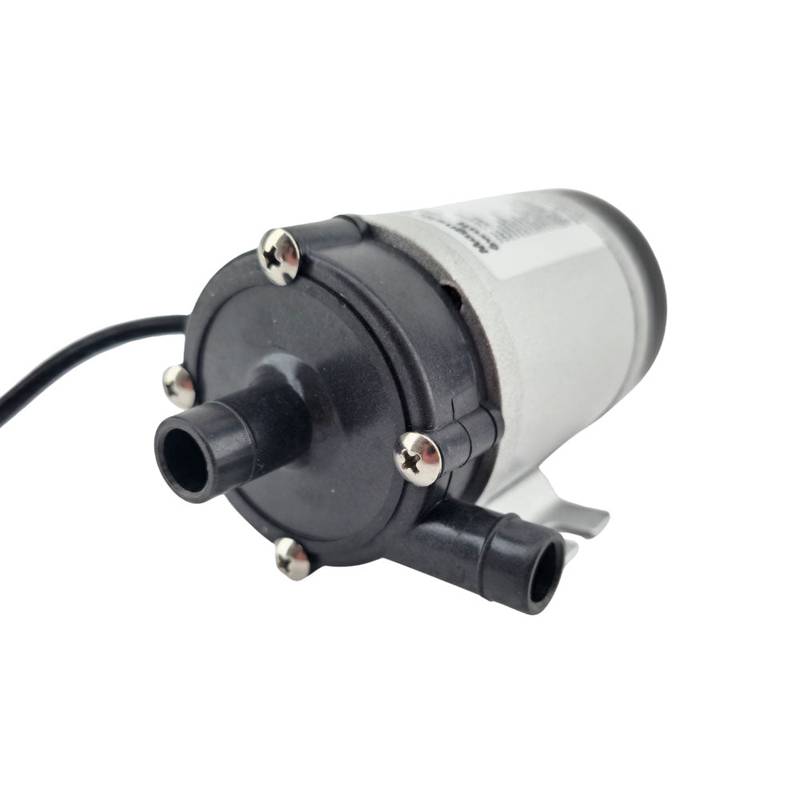

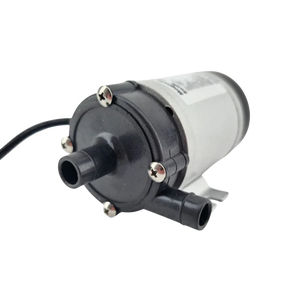

Replacement 6W Magnetic Drive Pump for BrewZilla Gen 4
This magnetic drive pump is the ideal solution for your beer brewing system. The pump can withstand temperatures up to 120°C, making it suitable for use directly with boiling liquid without prior cooling. It is an extremely efficient 1.1-amp pump that can be used continuously at high temperatures.
Pressure from restricted flow will not damage the magnetic drive pump, as this is exactly what it was designed for. The pump is not self-priming, so it must be positioned lower than the vessel and be filled with liquid before it can pump the liquid further. The pump is not submersible!
The pump inlet and outlet have a 14 mm outer diameter, allowing you to connect a silicone tube directly to the pump and secure it with a hose clamp.

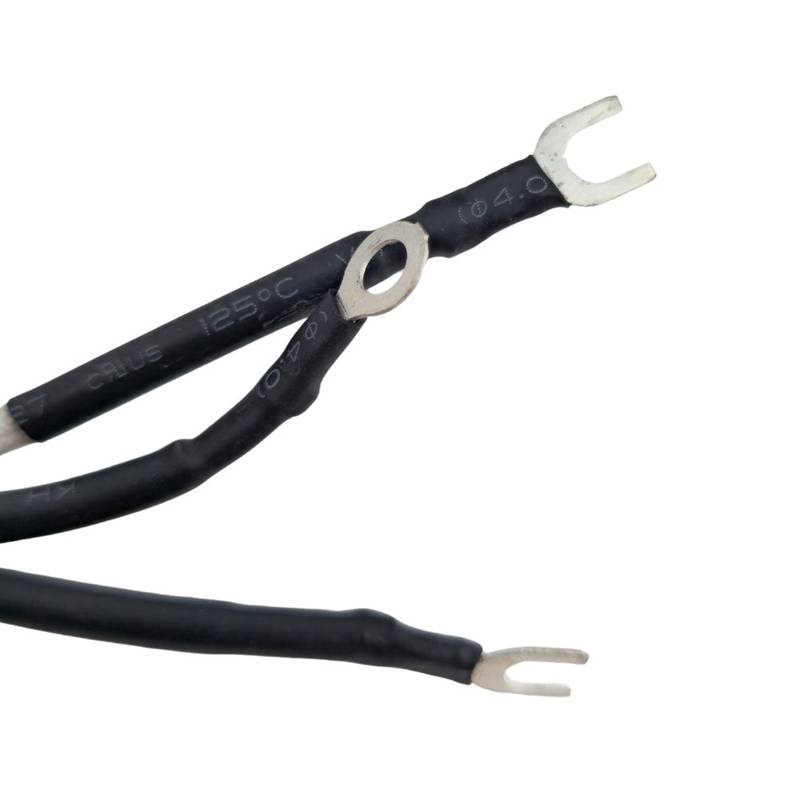

This pump comes without wires, so it's ready for installation in your brewery or to replace the pump in your BrewZilla Gen 4 35L or 65L.
Technical Specifications
- Voltage: 220-240V with a frequency of 50-60Hz
- Maximum lift height: 2.1 m (at 240V)
- Maximum flow rate: 12 l/min (at 240V)
- Input and output opening size: 14 mm outer diameter (suitable for hoses with an inner diameter of 11-13 mm)
We recommend avoiding running the pump dry for extended periods as this may affect the device's future performance and service life.
Usage Principle
The magnetic drive pump uses magnetic field force to move liquid without direct mechanical contact with the pumped liquid, ensuring reliability and longer life. It is particularly suitable for ensuring liquid circulation at various stages of the brewing process.
⚡ Important: ⚡ Electrical connection. The motor requires a grounded 240V/50Hz socket (Schuko). Connection must comply with local electrical regulations.
-
Frequently Asked Questions
Does this pump fit both the BrewZilla Gen 4 35L and 65L models?
Yes, this 6W magnetic drive pump is intended as a direct replacement for both the BrewZilla Gen 4 35L and 65L units. The pump is supplied without wires, which allows the use of the existing wires of the original pump. Simply disconnect the old pump, transfer the connections and install the new pump following BrewZilla's standard maintenance procedure.
Can the pump directly pump the boiling malt slurry?
Yes, the pump is rated up to 120°C and can safely circulate boiling malt liquor without pre-cooling. It is ideal for vortexing, circulation during mashing and cooling via a counterflow or plate cooler. Always make sure the pump is filled with fluid before starting to avoid dry running.
Why is the pump not self-priming and how to install it?
Magnetic drive pumps require fluid in the pump head to operate; without it, the impeller cannot move the fluid. Install the pump lower than the vessel to allow gravity to fill the pump head, then briefly open the outlet valve to expel the air. Never allow the pump to run dry for long periods as this will shorten the life.
What size hose to use with 14mm inlet and outlet?
Pump connections are 14mm outer diameter, designed for silicone hose with 11-13mm inner diameter. Secure the hose with a stainless steel hose clamp to prevent leaks, especially at high temperatures where the silicone expands slightly.
What are the electrical requirements for installation?
The pump operates at a voltage of 220-240V with a frequency of 50-60Hz and consumes 1.1 amps. It requires a grounded outlet and must be connected in accordance with local electrical codes. If you are unsure about electrical work, consult a qualified electrician.
-
Specifications
Length (mm) 600.00 Width (mm) 400.00 Height (mm) 400.00 Weight (kg) 0.85 Gross Weight (kg) 9.00 Unit pcs Voltage 240 Power (W) 6W Temperature range 120°C – 120°C Alcohol contact max % 95 Certifications CE
PED
Material Silicone
Food compliance Acid-resistant
Heavy metals compliant
Compliant EU 1935/2004
Compliant EU 10/2011
Food contact certified
Phthalate-free
Volume (L) 35 Pump work element Centrifugal
-
Files
-
