Tootekood: 1351
EAN: 200000539122

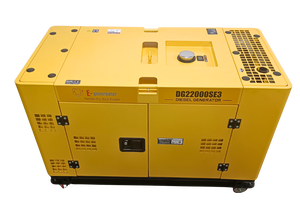

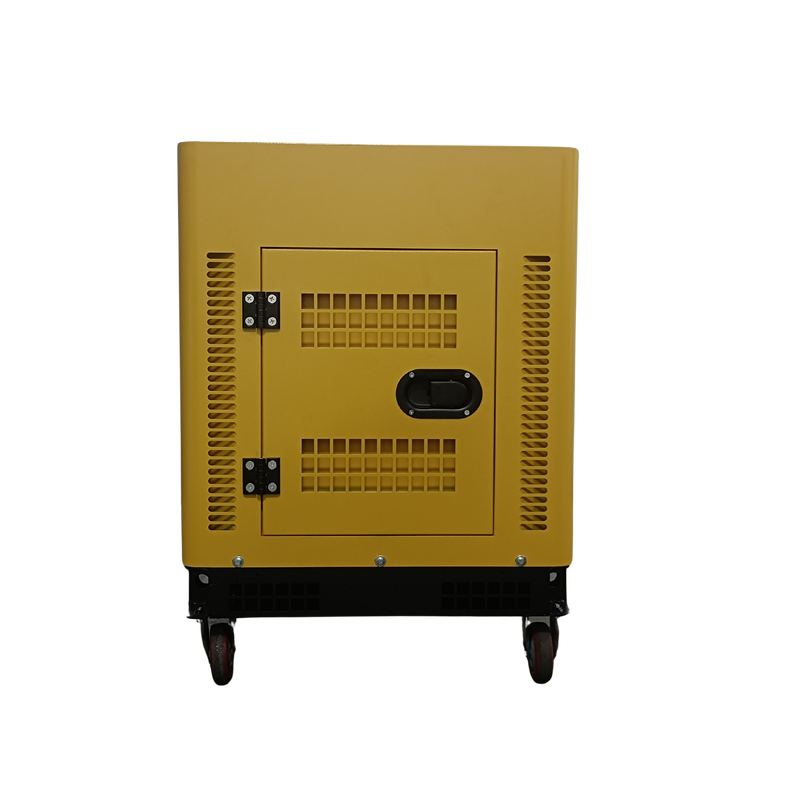

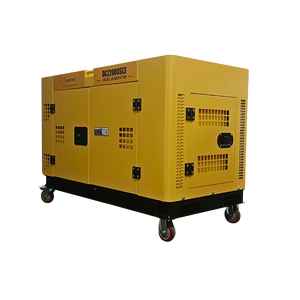

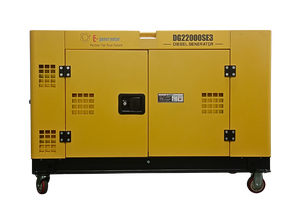

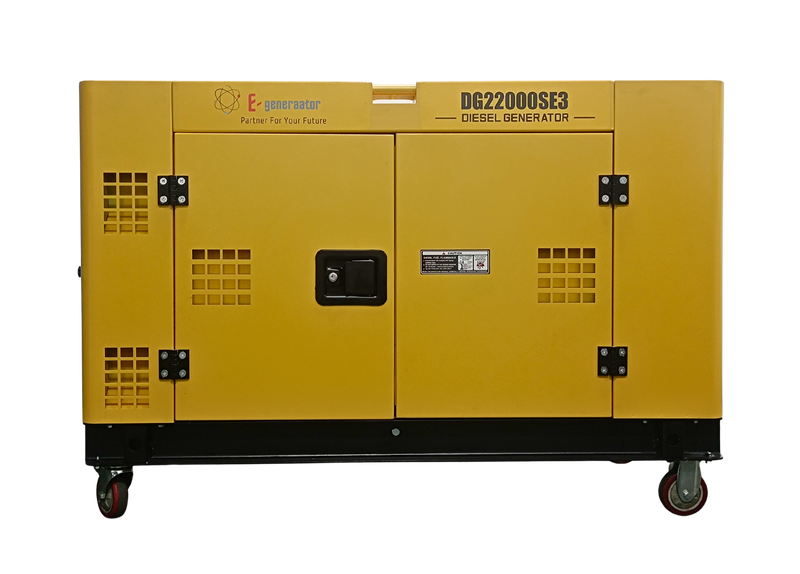

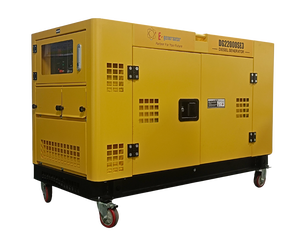

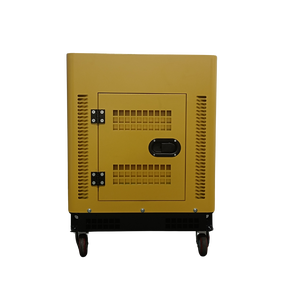

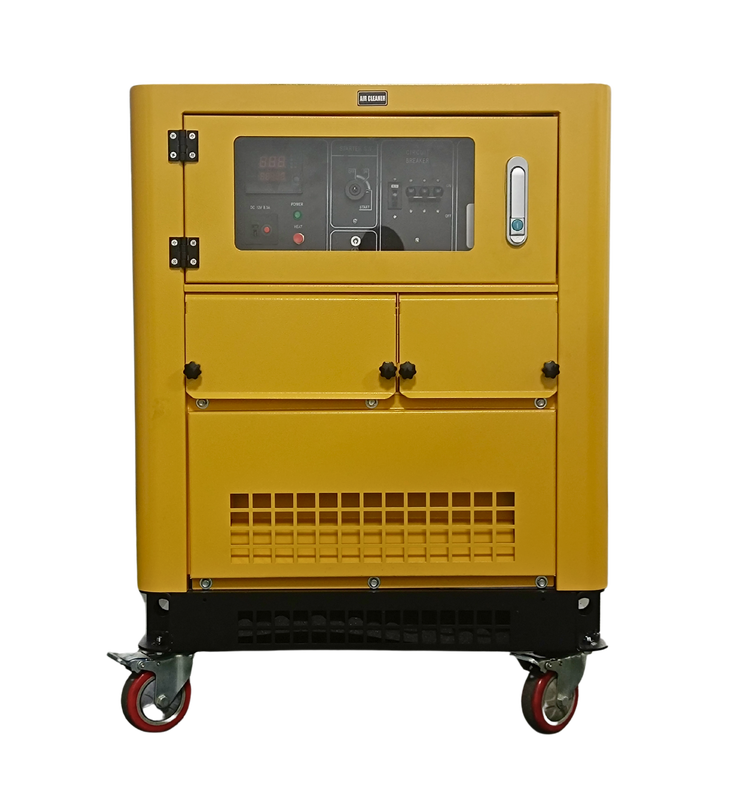

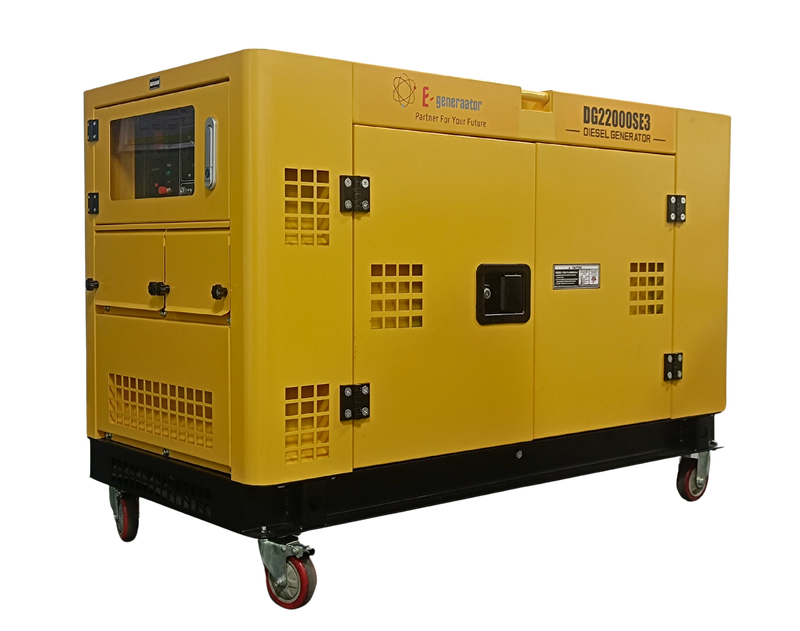

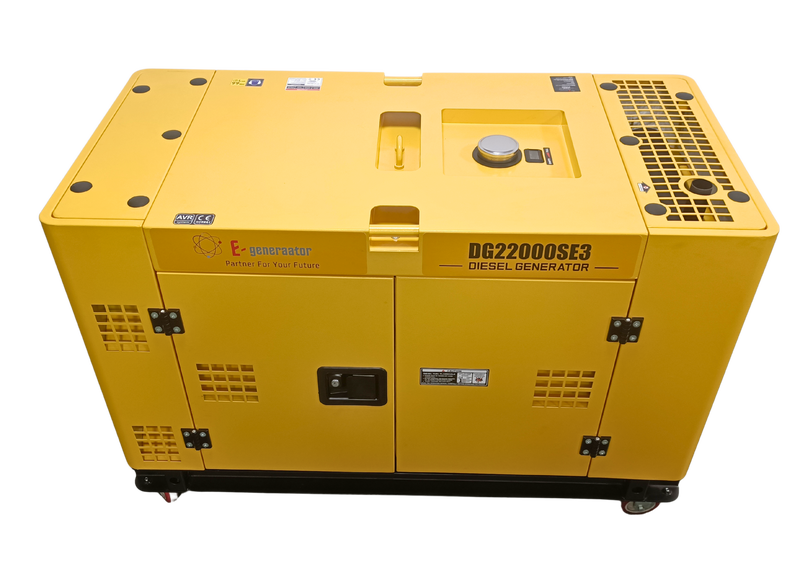

Diiselgeneraator DG22000E3 400V/max.15kW 230V/15kW
15,5 kW tööstuslik diiselgeneraator – võimas ja usaldusväärne energialahendus professionaalseks kasutuseks. Varustatud uuendusliku Wava generaatorisüsteemiga, mis tagab stabiilse võrgukvaliteediga väljundi (THD alla 5%). Vastupidav 2V95 diiselmootor, elektrikäivitus, HJ502 digitaalne juhtpaneel, sisseehitatud eelsoojendus ja ATS-valmidus automaatseks käivituseks. Vedelikjahutusega magnetkaitselüliti hoiab ära ülekoormuse.
Paigaldus Paigaldusteenus: paigaldame seadme objektil vastavalt tootja juhistele, ühendame liiniga (mehaanilised ühendused) ning teostame esmase seadistuse ja testkäivituse. Hind sõltub asukohast, ligipääsust ja tööde mahust. (hind kokkuleppel / hinnapakkumise alusel)Ei JahKokkuhoid: 991.00€
3999.00€
4990.00€
Hind km-ta3225.00€
4024.19€
0Europe/Tallinnout_of_stock_products0SaadavusLaos Pärnu 2 tk Laos Laost otsas Tarnija ladu 0 tk Laost otsas TarneinfoLaadimine…Garantii 24 kuudArvemakse B2BVaruosad e-poest -
-
Kirjeldus
15,5 kW tööstuslik diiselgeneraator – võimas ja usaldusväärne energialahendus
Professionaalne sünkroongeneraator uuendusliku Wava generaatorisüsteemiga – usaldusväärne toiteallikas tööstuslikuks kasutuseks.
Peamised eelised
- Võrgukvaliteediga väljund (THD alla 5%)
- Kaasaegne Wava generaatorisüsteem tagab stabiilse töö
- Vastupidav 2V95 diiselmootor pikaks kasutuseaks
- Kiire elektriline käivitussüsteem

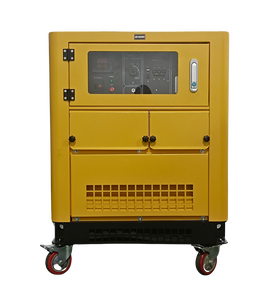

- Täpne HJ502 digitaalne juhtpaneel lihtsamaks kasutamiseks
- Sisseehitatud eelsoojendus külma ilma käivitusteks
- Automaatne käivitusvalmidus ATS-süsteemiga
- Vedelikjahutusega magnetkaitselüliti ülekoormuse vältimiseks

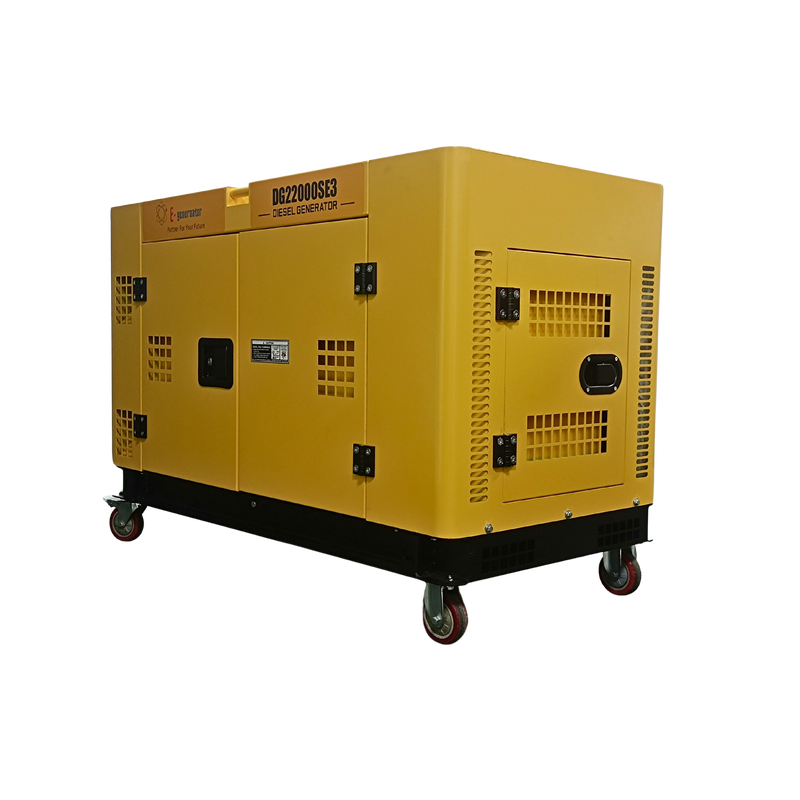

- Liikuv konstruktsioon nelja rattaga (kaks pöörlevat) lihtsaks transpordiks
Tehnilised andmed
- Pidevvõimsus: 15,0 kW
- Maksimaalne võimsus: 15,5 kW
- Pinge reguleerimine: täpsus ±2%
- Stabiilne sagedus: ±0,5 Hz kõikumine
- Kvaliteetne vool: harmooniline moonutus alla 5%
- Tööstuslik kolmefaasiline 400V väljund
- Kaks 230V pistikupesa (16A) ja 230V klemmühendus
- Turvaline ülekoormuskaitse aktiveerub 105–110% koormusel
- Müratase 85–90 dB
Võimsuse süsteemi võimalused
- Kolmefaasiline kasutus: maksimaalne võimsus 15,5 kVA
- Ühefaasiline kasutus: optimaalne võimsus 13,2–14 kVA
- Tõhus võimsuse jaotus ühefaasilises režiimis
- Paindlik koormuse tasakaalustamine kuni 30% faasierinevusega
Garantiiremont ja hooldus toimuvad ainult meie Pärnu teeninduskeskuses.
-
Sagedased küsimused Diiselgeneraator DG22000E3 400V/max.15kW 230V/15kW kohta
Milleks see generaator on mõeldud?
Professionaalse klassi diiselgeneraator tööstuslikuks ja ärikasutuseks. Sobib varutoiteks või põhitoiteks ehitusplatsidel, töökodades, farmides ja tootmisrajatistes, kus on vajalik stabiilne 400V kolmefaasiline või 230V ühefaasiline toide.
Kuidas generaator paigaldada ja kasutusele võtta?
Paiguta seade stabiilsele, tasasele pinnale piisava ventilatsiooni ja ilmastikukaitsega. Ühenda tarbijad 400V kolmefaasilise väljundi, 230V pistikupesade või klemmi kaudu. Automaatseks tööks ühenda ATS-paneeliga. Järgi alati kasutusjuhendit.
Millist hooldust ja teenindust soovitatakse?
Kontrolli regulaarselt mootoriõli, jahutusvedelikku ja kütusefiltreid. Vaata üle õhufilter ja aku seisukord. Teosta plaanilisi hooldusi vastavalt töötundidele. Hoia jahutussüsteem ja korpus puhtad, et tagada pikk eluiga ja usaldusväärne töö.
Millised on peamised tehnilised andmed?
Pidevvõimsus 15,0 kW, maksimum 15,5 kW, pinge reguleerimine ±2%, sageduse kõikumine ±0,5 Hz, THD alla 5%. Väljundid: 400V kolmefaasiline, 230V pistikupesad (16A) ja 230V klemm. Müratase 85–90 dB. Ülekoormuskaitse aktiveerub 105–110% koormusel.
Milline garantii ja tugi on saadaval?
Generaatoril on tootjagarantii materjali- ja tootmisdefektide vastu. Garantiiremont ja hooldus teostatakse ainult meie Pärnu teeninduskeskuses. Tehniline tugi ja varuosad on saadaval FERMETECHi kaudu.
-
Spetsifikatsioonid
Pikkus (mm) 1350.00 Laius (mm) 650.00 Kõrgus (mm) 890.00 Kaal (kg) 260.00 Brutokaal (kg) 270.00 Unit tk Võimsus (W) 15000 Toitepinge 230V, 400V Müratase (dB) 90 Materjal Muu materjal
Toote tüüp Diiselgeneraator
-
