Connection DIN11851 D99 DN75 84mm hose
EAN: 4064907019899
Brand: MCC
Unit: pc
Stock qty: Pre-order
Delivery time within Estonia for stock items approx. 3-5 working days. NOTE! Due to the rapid price increase, prices for non-stock items may change without prior notice! Standard prices with 24% VAT.
116,95 €/Kg

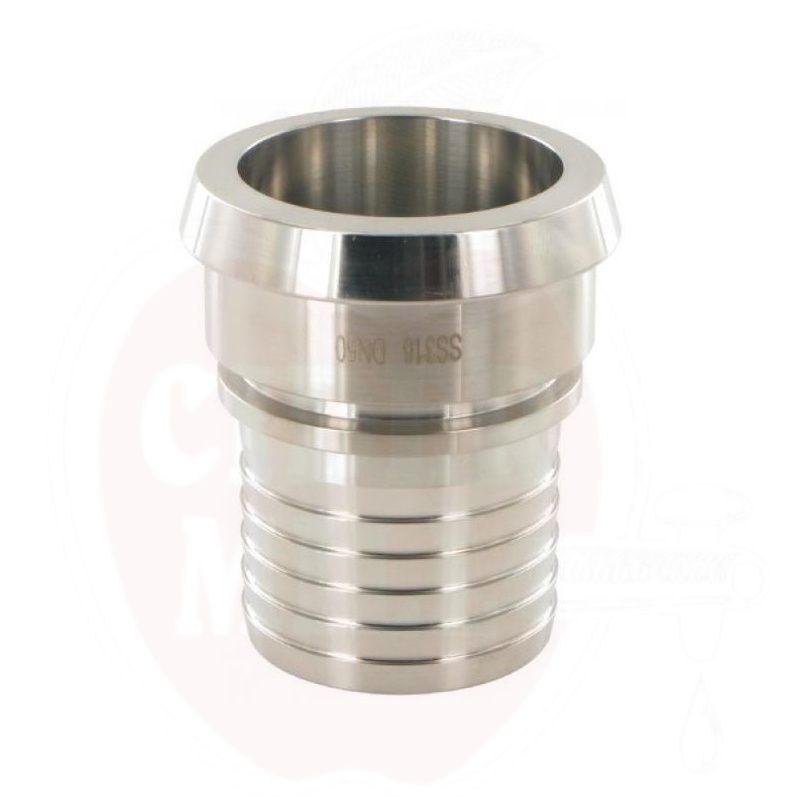

DIN 11851 Stainless Steel Fitting for Food Industry
High-quality AISI 316 stainless steel DIN 11851 standard compliant connection fitting, specifically designed for food industry needs. This durable fitting withstands working pressure up to 40 bar and is designed to operate without additional sealing.
Product features:
- Material: AISI 316 stainless steel
- Maximum working pressure: 40 bar
- Seal-free construction
- Complies with DIN 11851 standard
- Suitable for food industry applications
This fitting is ideal for use in juice production lines, dairy industry, and other food processing applications where material cleanliness and durability are essential.
Frequently asked questions about 8999895
What hose is this fitting compatible with?

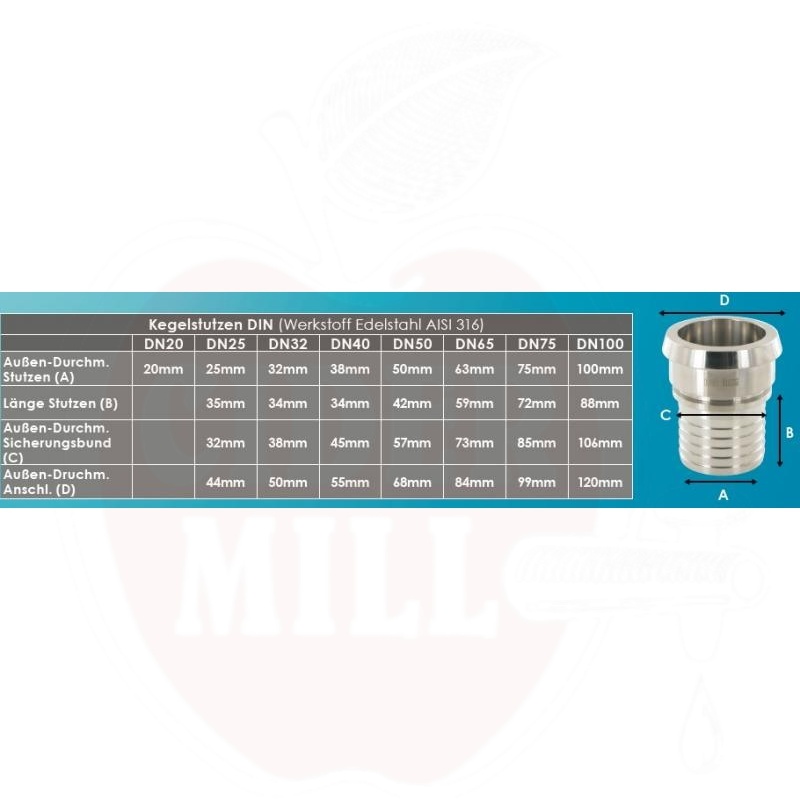

The fitting is designed for 84 mm hose and is dimensioned according to DIN 11851 standard with nominal size DN75 and connection diameter D99. Make sure that the inside diameter of the hose corresponds to the size of the dowel of the fitting — this ensures a secure and leak-free connection in the food industry line.
Why is AISI 316 stainless steel used?
AISI 316 stainless steel provides stronger corrosion resistance compared to AISI 304, especially when exposed to acidic juices, salts and cleaning agents used in the dairy industry. It meets food grade hygiene requirements and lasts long even in demanding CIP/SIP cleaning cycles.
Does the fitting need an additional seal?
No. The DIN 11851 connection is designed on a metal-to-metal sealless principle and produces a leak-free connection when properly tightened. However, many installations use an optional profile seal to improve hygiene — check your process requirements.
What working pressure can the fitting withstand?
The maximum operating pressure is 40 bar, which is more than sufficient for conventional process lines in the food and beverage industry. Always make sure that the system pressure remains within the permissible limits and take into account pressure peaks that may occur during pumping or CIP cleaning.
Where is this fitting commonly used?
The fitting is suitable for juice production lines, dairy, beer and wine production and other food processing applications. It is commonly used to connect flexible hoses to tanks, pumps and stainless steel piping where hygienic and removable connections are required.
