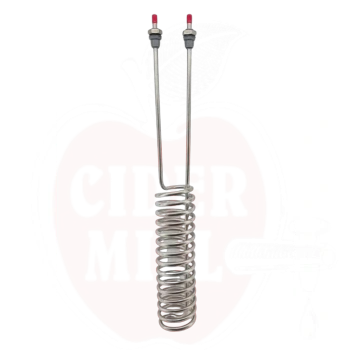

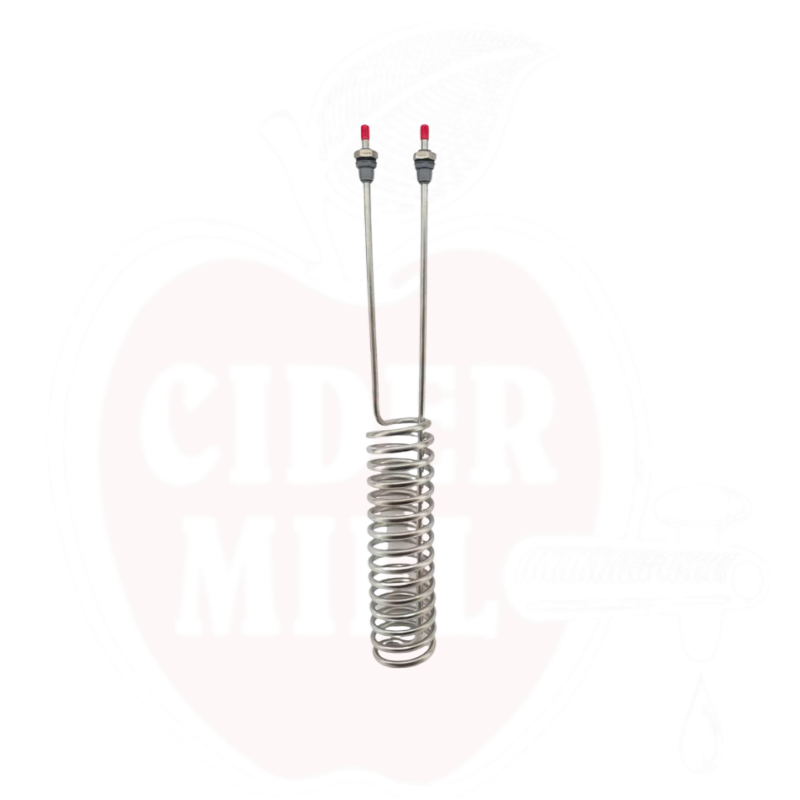

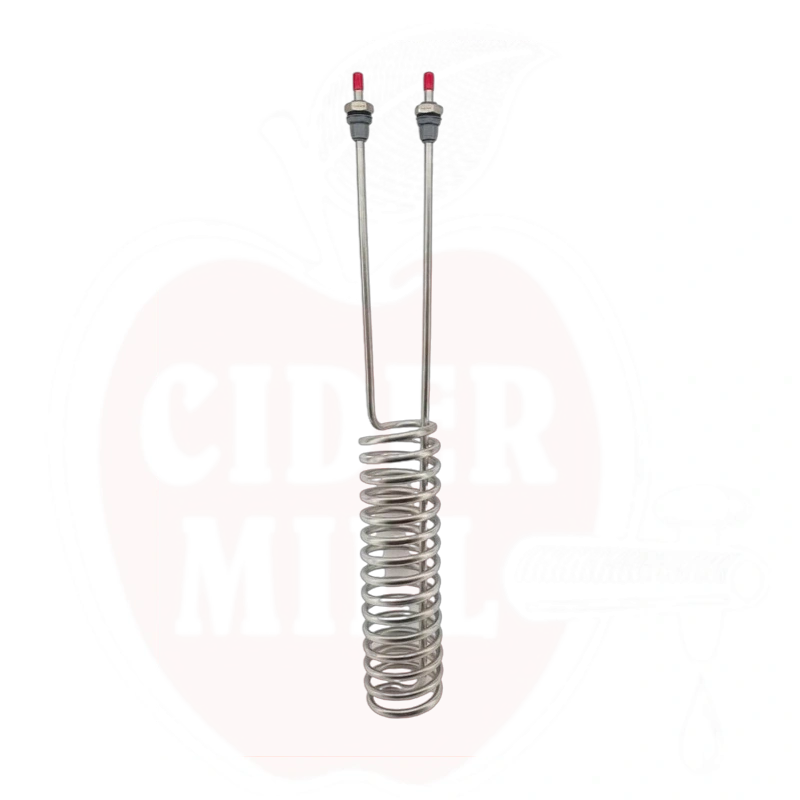

Cooling coil 9.5mm (3/8") Temp Twister stainless steel
EAN: 20000000542030
Brand:
Unit: pc
Stock qty: Pre-order
Delivery time (day): 7-14
Delivery time within Estonia for stock items approx. 3-5 working days. NOTE! Due to the rapid price increase, prices for non-stock items may change without prior notice! Standard prices with 24% VAT.
57,71 €/Kg

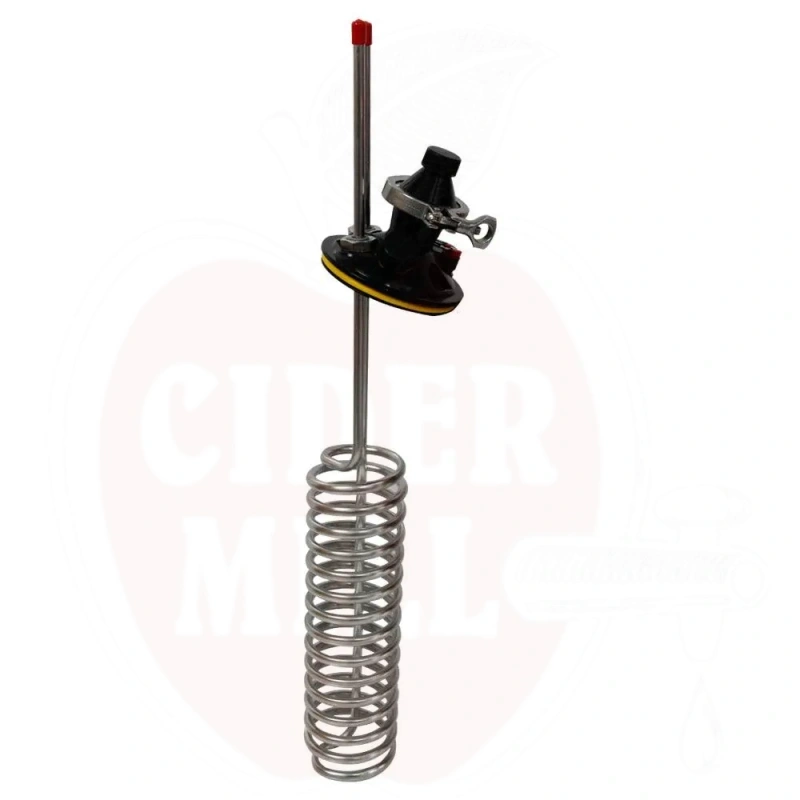

Cooling coil 9.5mm (3/8") Temp Twister stainless steel

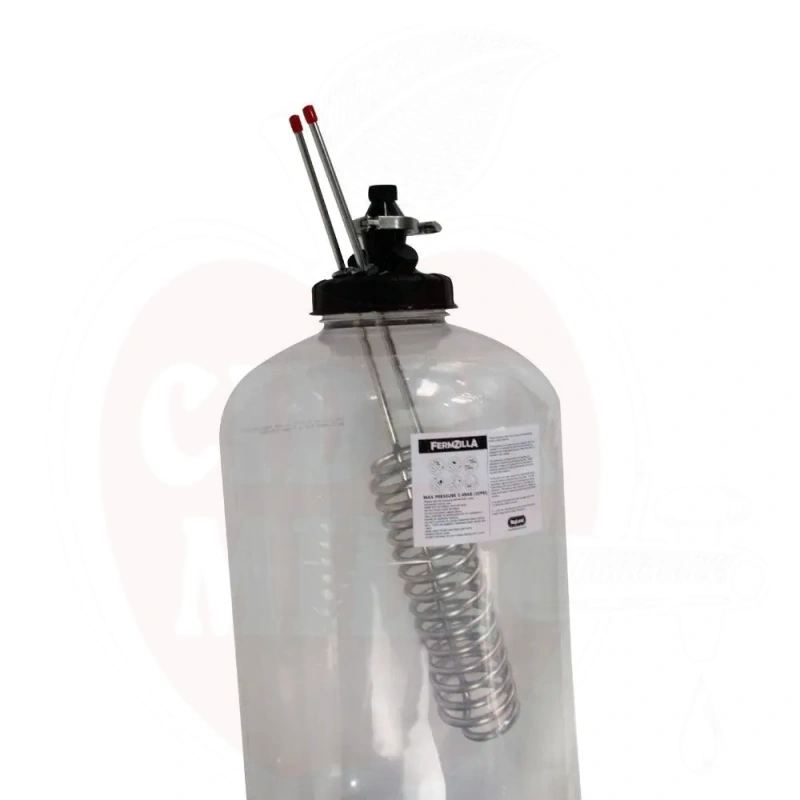

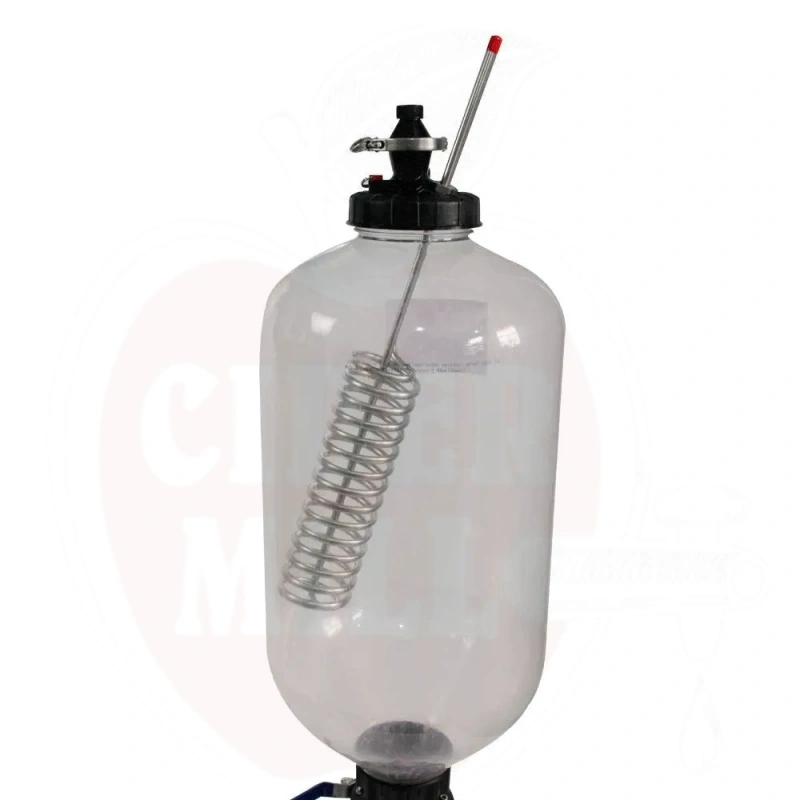

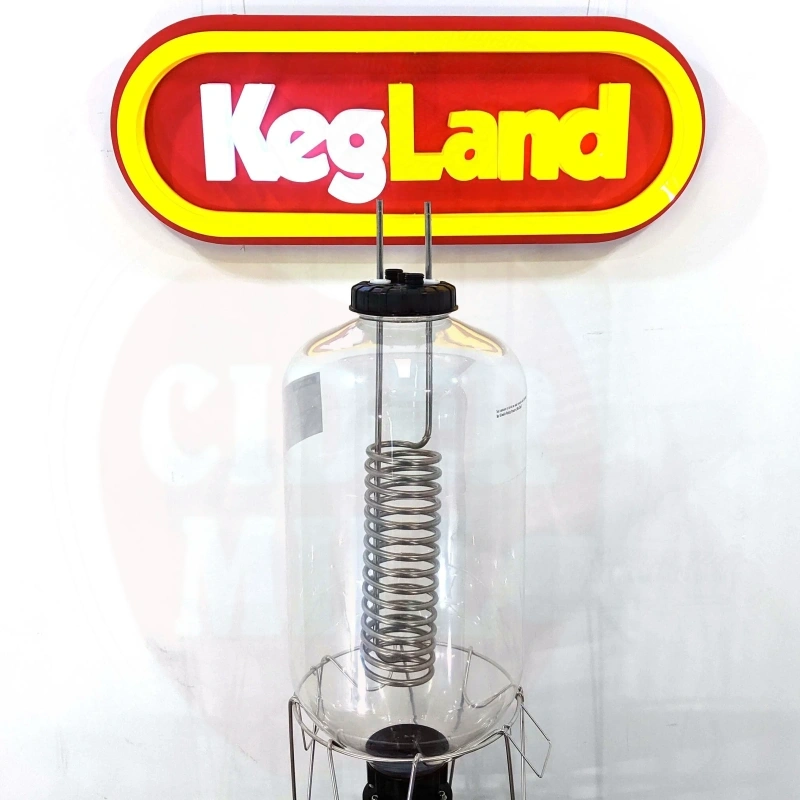

Usage: Professional cooling coil for temperature control in fermenters and bright tanks. Designed for glycol chiller systems to heat and cool FermZilla, Kegmenter or other fermentation vessels.

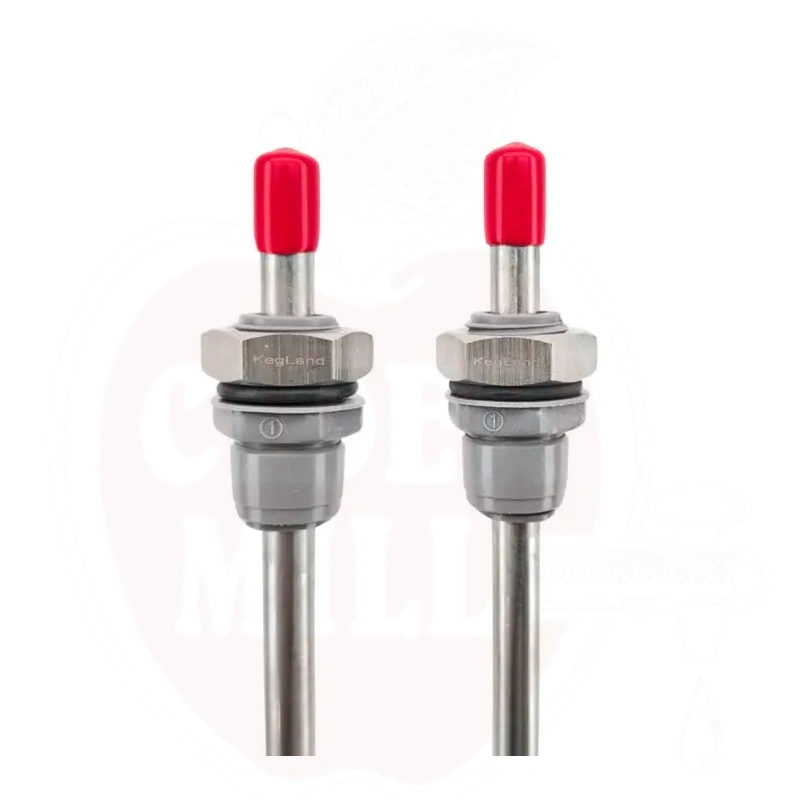

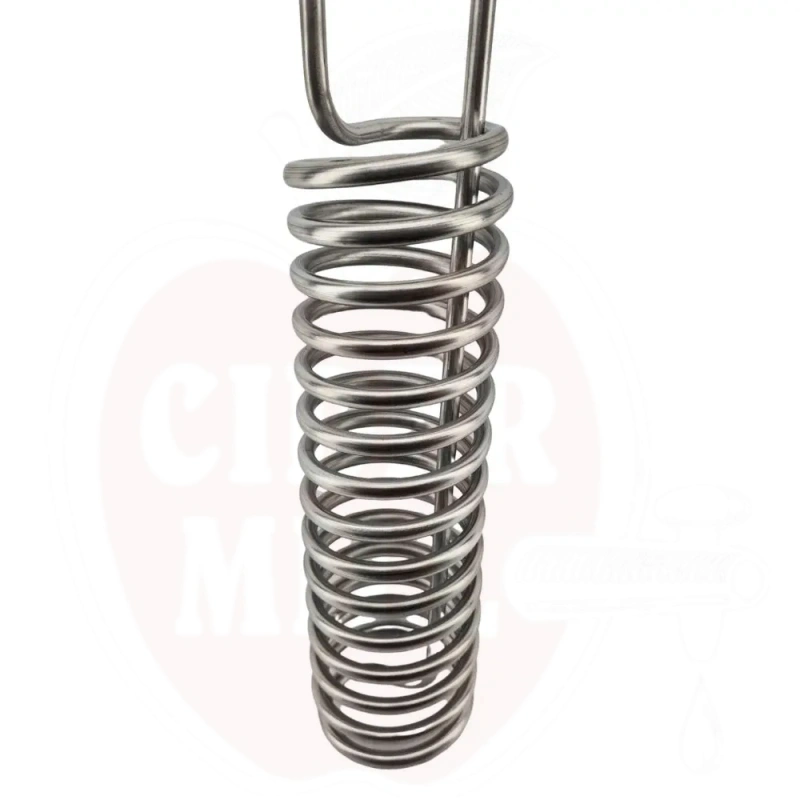

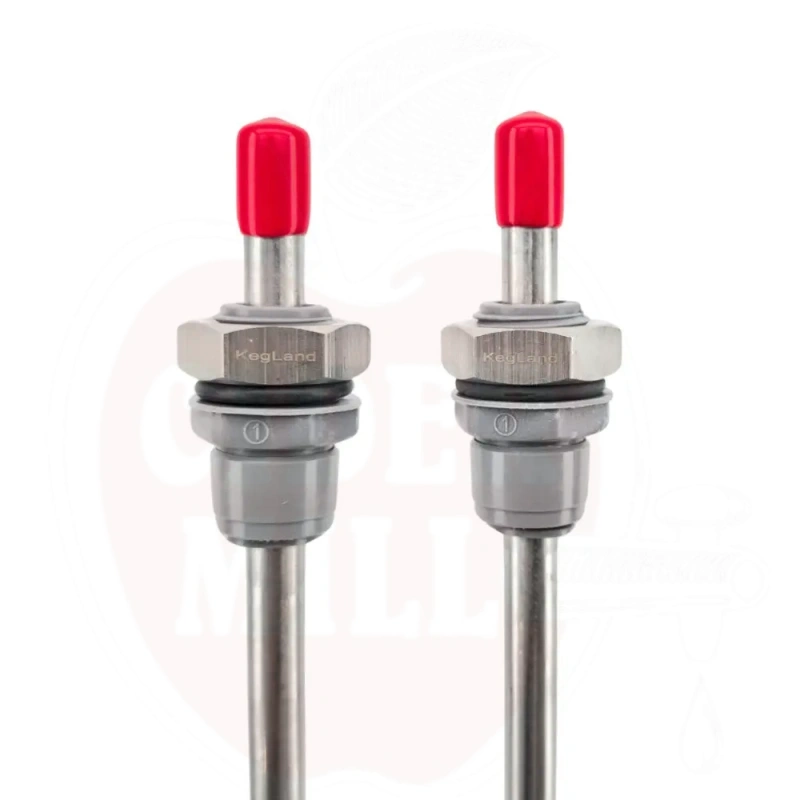

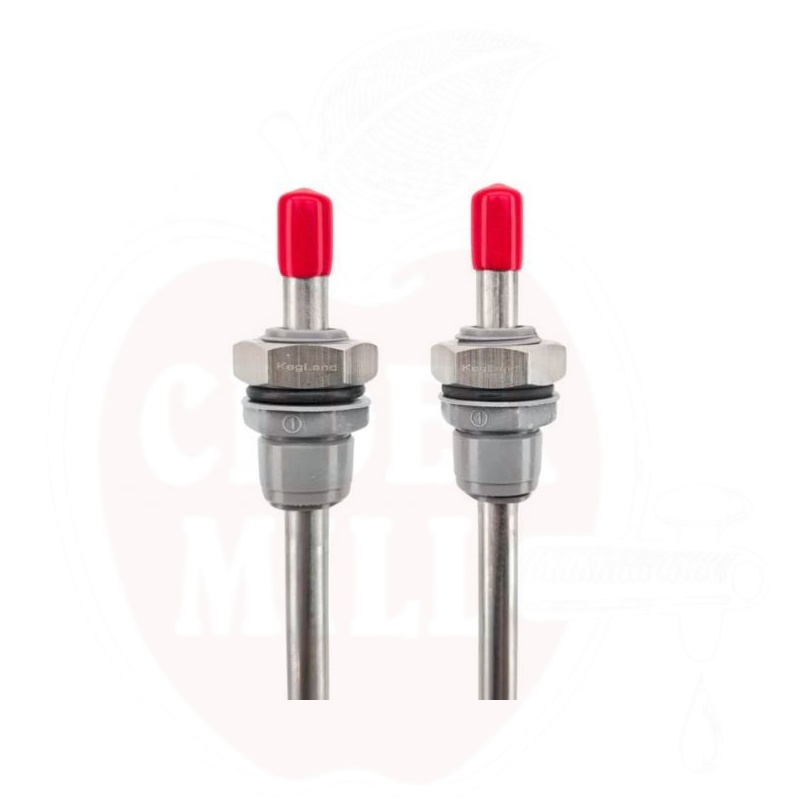

Features: Made from AISI 304 stainless steel with 9.5mm OD (3/8") coil thickness and 6 meters total length. Heat transfer capacity exceeds 250 watts when submersed in liquid. Universal design fits any fermenter or bright tank with 110mm diameter opening or larger. Includes 2 x 9.5mm duotight push-in x 1/2" male bulkhead fittings with nuts for easy installation.

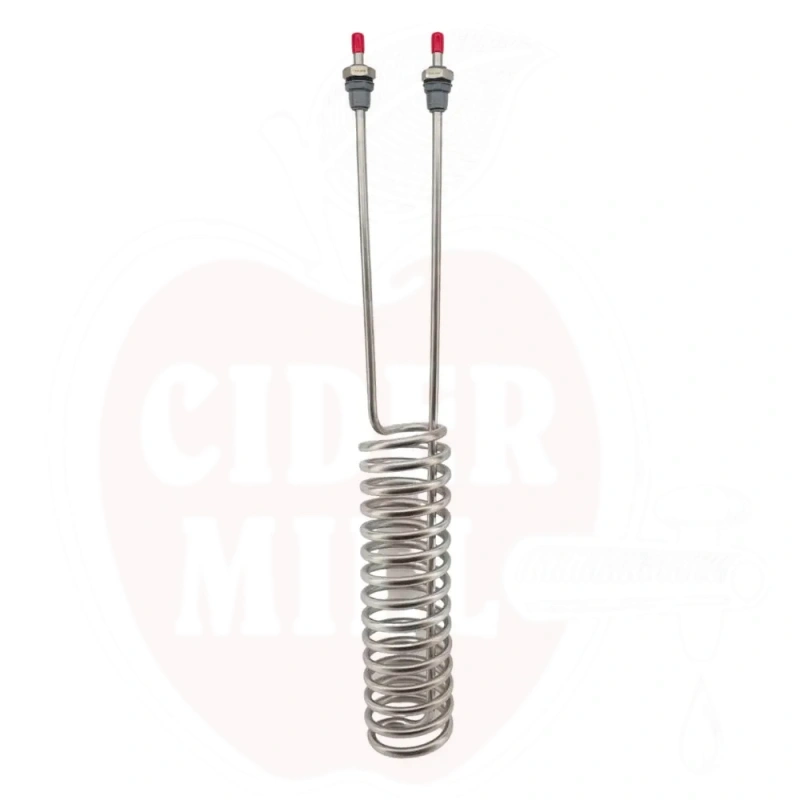

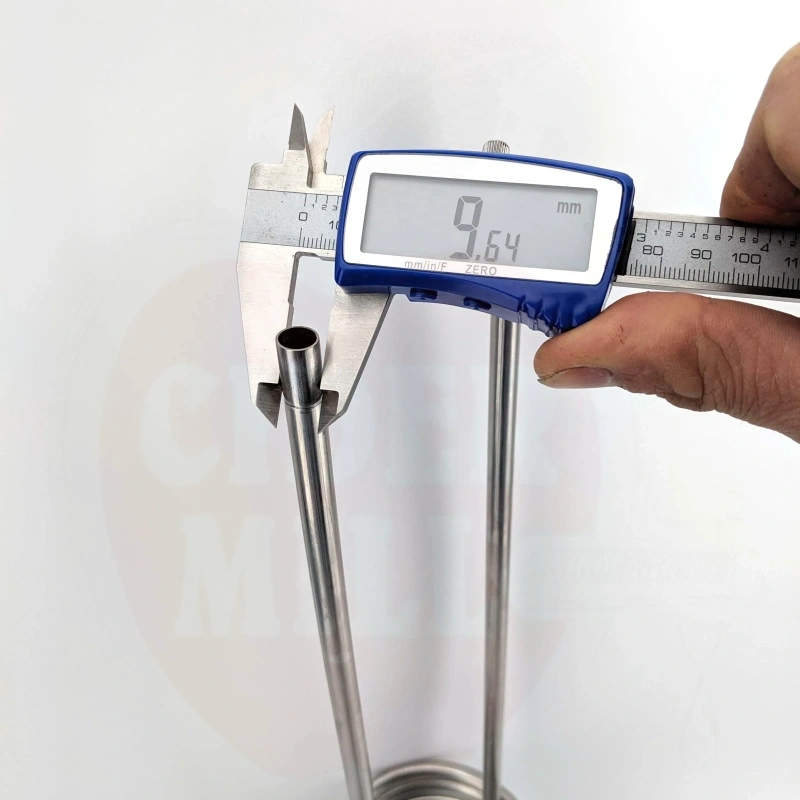

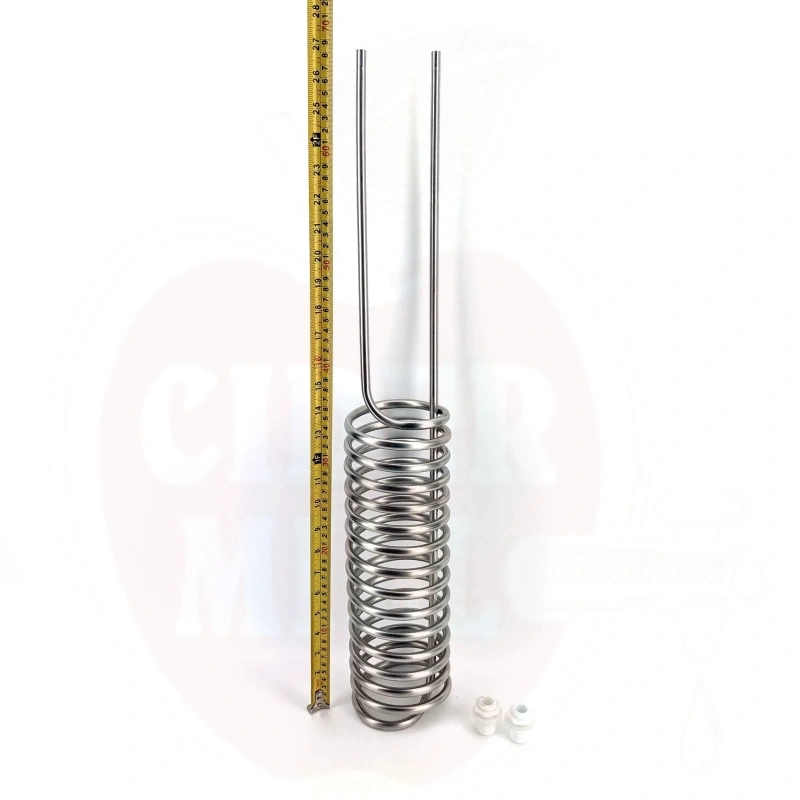

Technical data: Coil dimensions: 9.5cm diameter x 68cm height. Material: AISI 304 stainless steel. Coil thickness: 9.5mm OD (3/8"). Coil length: 6 meters. Heat transfer: >250 watts. Compatible with FermZilla and KegLand Kegmenter ranges.

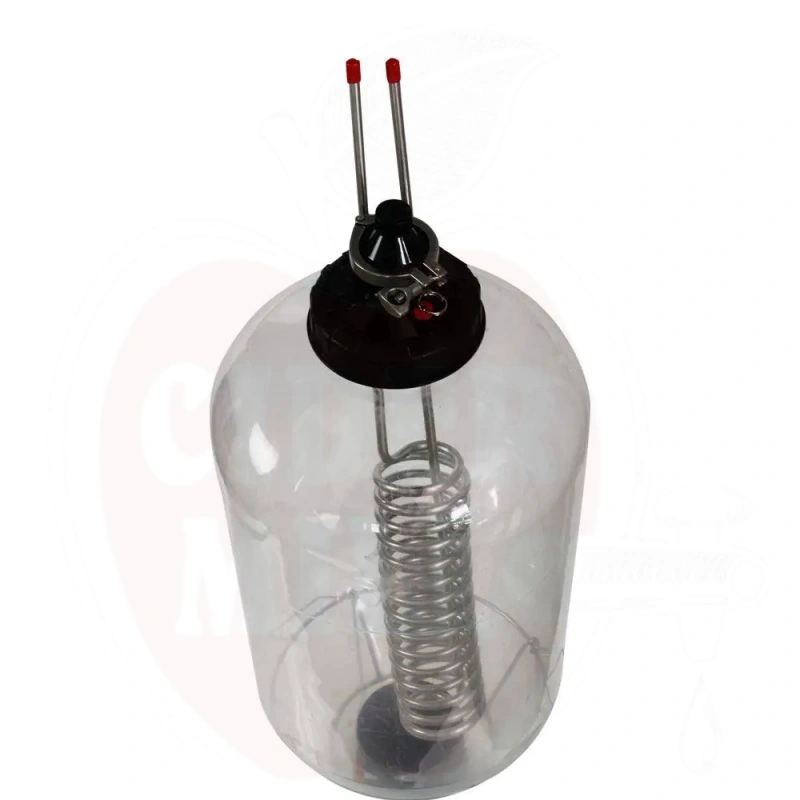

Installation: Simply drill two 22mm holes in the fermenter lid and attach the coil using the included duotight bulkhead fittings. Arms can be shortened if needed using a tube/pipe cutter.
⚠️ Important: Ensure proper connection to glycol chiller system. Check all fittings for leaks before use. Do not exceed maximum pressure rating of your fermenter.
Frequently asked questions about this product
What system does this coil need, and can it both heat and cool?
It is designed to run with a glycol chiller system, through which it can both heat and cool a fermenter — useful for holding fermentation temperature or cold-crashing. It is built for FermZilla, Kegmenter and similar vessels, with heat-transfer capacity rated above 250 watts when submerged in liquid.
Will it fit my fermenter, and how is it installed?
The universal design fits any fermenter or bright tank with an opening of 110mm diameter or larger. To install, drill two 22mm holes in the lid and attach the coil with the included duotight push-in × 1/2" male bulkhead fittings and nuts. The arms can be shortened with a tube/pipe cutter if needed.
What should I check before running glycol through the coil?
Make sure it is correctly connected to your glycol chiller system and check every fitting for leaks before use. Do not exceed the maximum pressure rating of your fermenter. A leak check protects both your glycol loop and the batch inside the vessel.
What makes it compatible across different vessels?
It is made from AISI 304 stainless steel and works with the FermZilla and KegLand Kegmenter ranges. The push-in duotight bulkhead fittings give a tool-free, sealed connection, and because the arms can be trimmed, one coil adapts to several tank depths.
| Weight (kg) | 0.778000 |
| High (m) | 0.7 |
| Width (m) | 0.15 |
| Length (m) | 0.15 |
59,90 €
