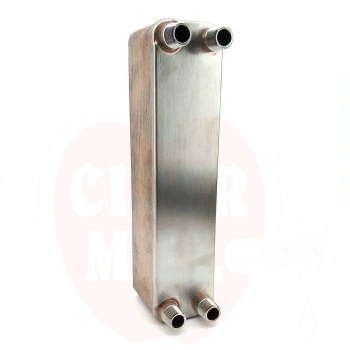

Heat exchanger 30-plate Chillout Threaded MKIV 1/2" BSP stainless steel
EAN: 2000000029993
Brand:
Unit: pc
Stock qty: Pre-order
Delivery time (day): 7-14
Delivery time within Estonia for stock items approx. 3-5 working days. NOTE! Due to the rapid price increase, prices for non-stock items may change without prior notice! Standard prices with 24% VAT.
51,93 €/Kg
Heat exchanger 30-plate Chillout Threaded MKIV 1/2" BSP stainless steel
Usage: The Chillout Threaded MKIV Counterflow Chiller is designed to rapidly cool your wort from boiling temperature to yeast pitching temperature, ensuring a quick and healthy start to fermentation. Ideal for professional and home brewers seeking efficient heat transfer.

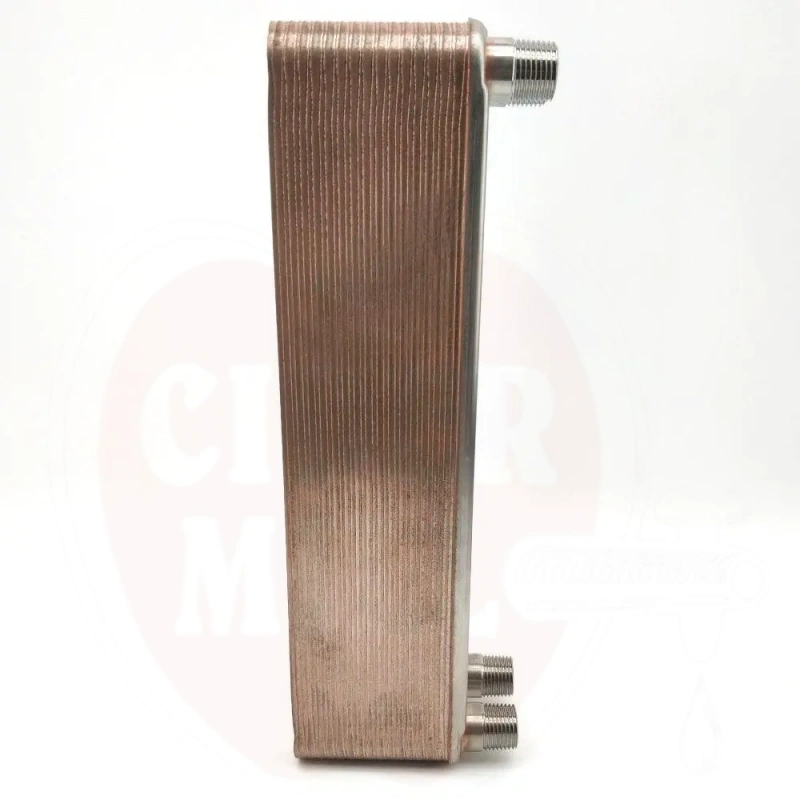

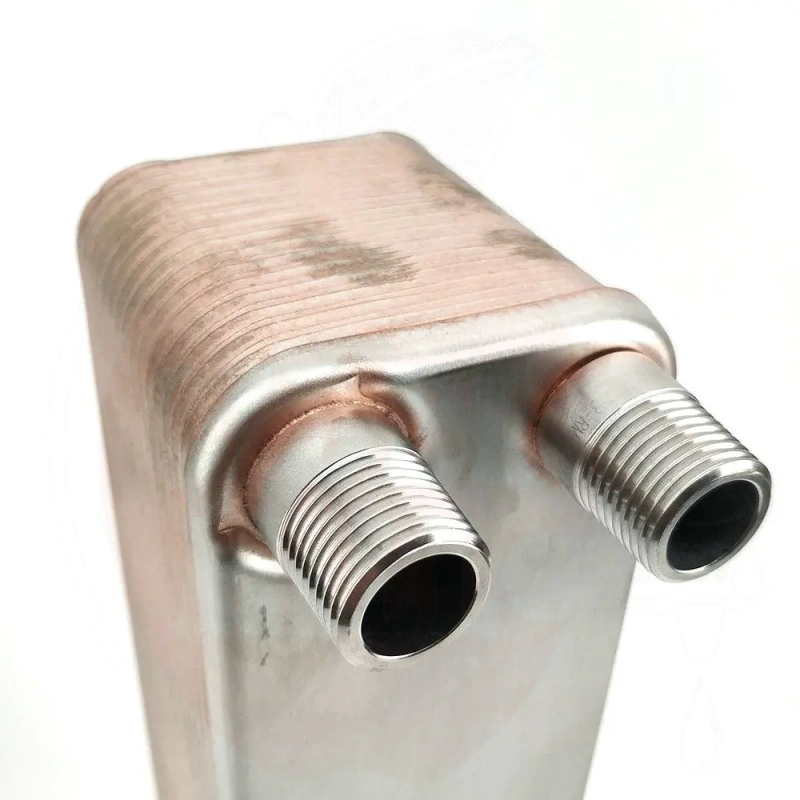

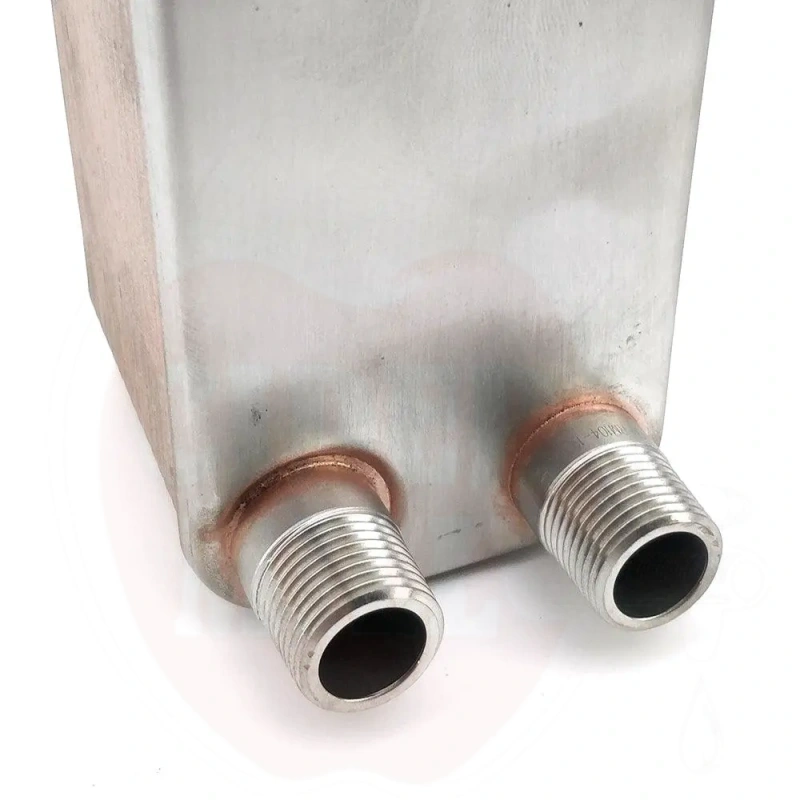

Features: Constructed from high-quality stainless steel and brazed with pure copper. Features 30 rippled plates that create increased surface area for superior heat transfer. Equipped with male 1/2" BSP threaded connections for versatile fitting compatibility. Fully polished finish.

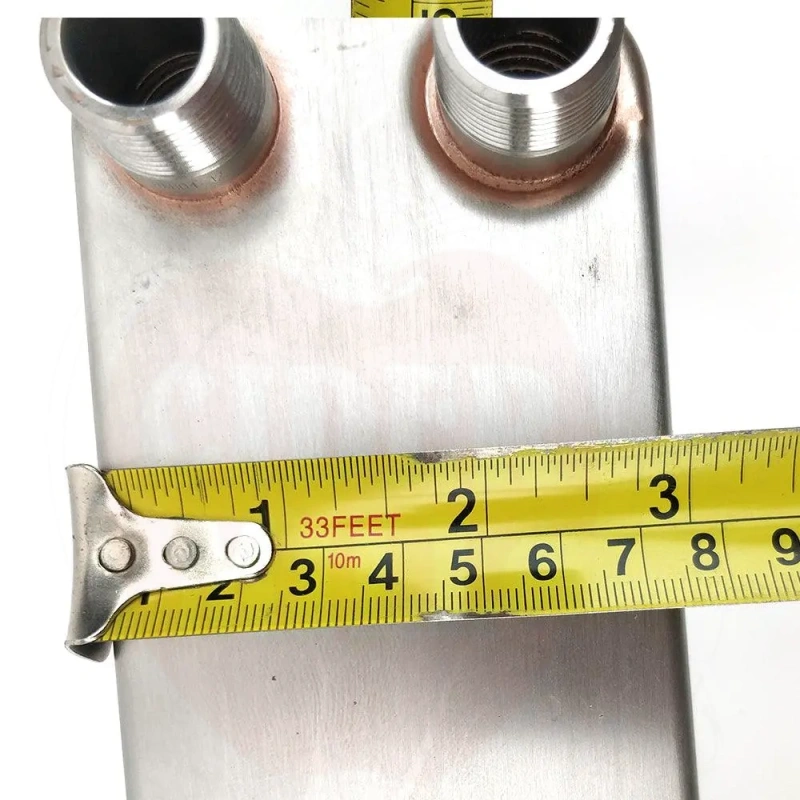

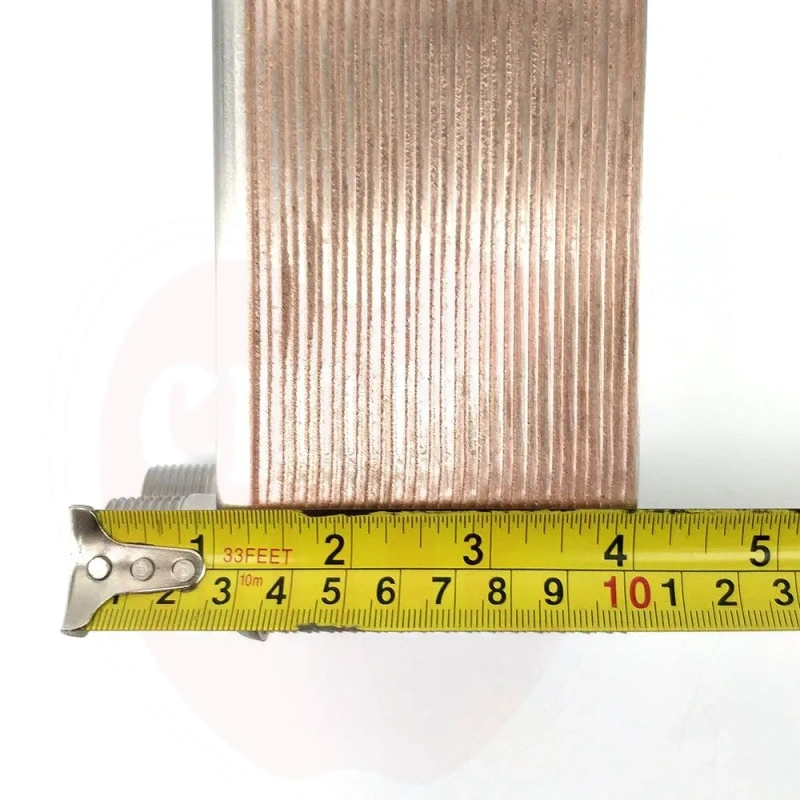

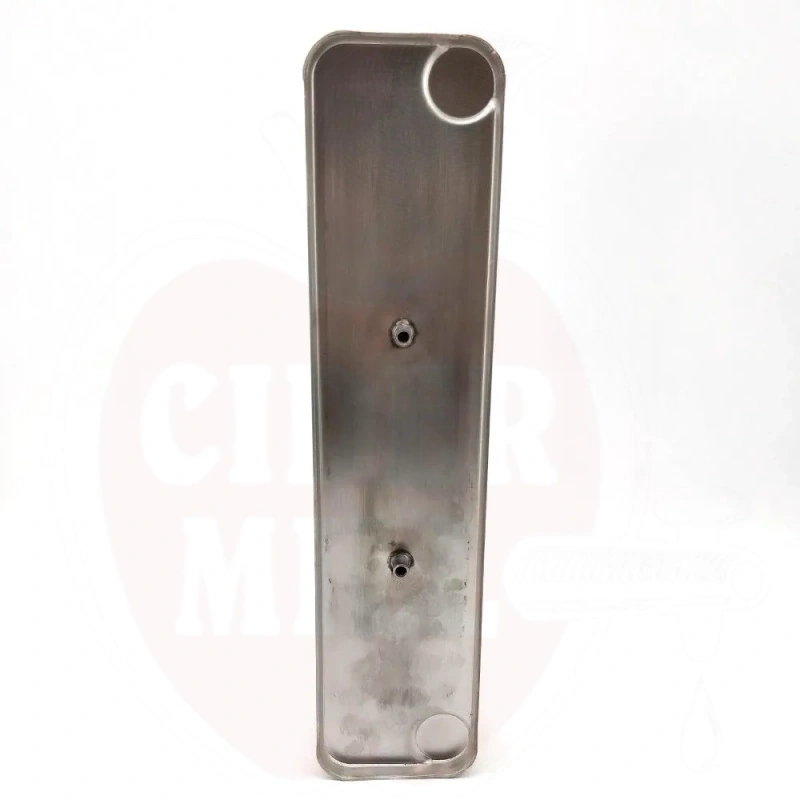

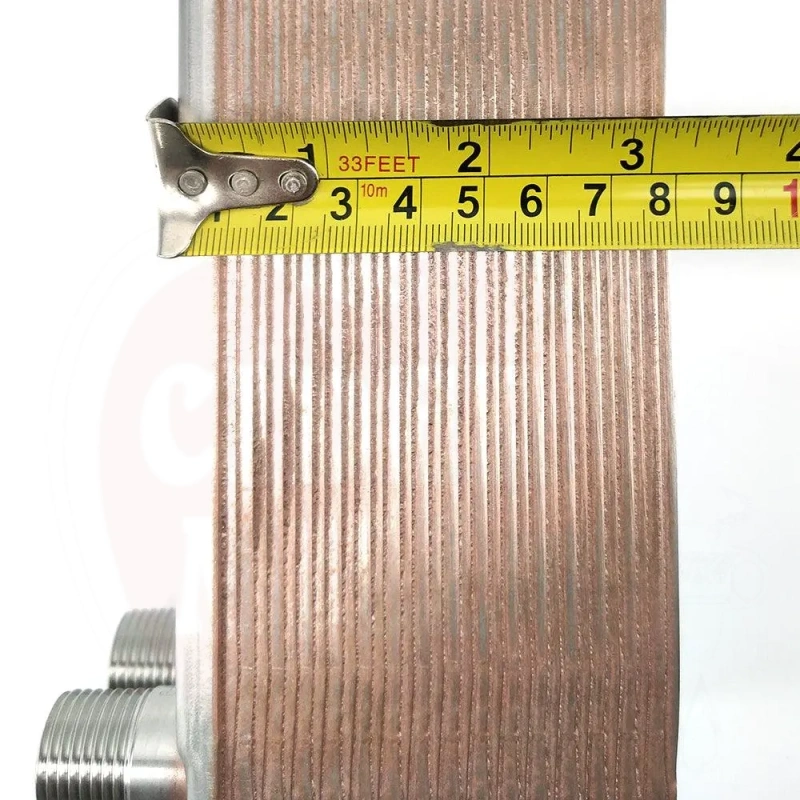

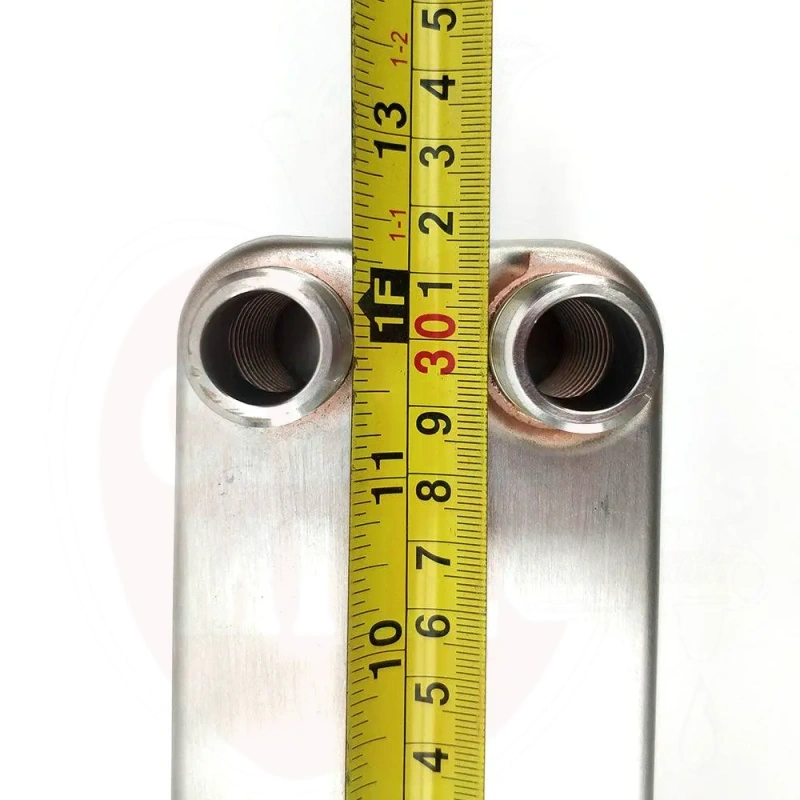

Technical data: Dimensions: 315mm x 73mm x 51mm (excluding threads). Thread type: 1/2" BSP male. Mounting: Two M5 bolt mounting points on rear. Material: Stainless steel with copper brazing.
Usage recommendations: For water supply, attach 1/2" to garden hose fittings. For hot wort side, use male to female camlocks. To clean, backflush by connecting water supply to the wort outlet port for several minutes to remove all residue. Sanitise before use with boiling wort or a short flush with StellarSan.
⚠️ Safety Information: Do not clean with StellarSoda or phosphoric acid-based sanitisers. Do not leave sanitisers stored inside the plate heat exchanger as this may cause corrosion or damage to internal components.
| lumav_meta_description_de | Der 30-Platten-Wärmetauscher Chillout MKIV kühlt die Würze dank gewellter Platten und 1/2-Zoll-BSP-Gewinde schnell ab. |
| lumav_meta_description_en | The 30-plate Chillout MKIV heat exchanger cools wort fast via rippled plates and 1/2-inch BSP threaded stainless steel construction. |
| lumav_meta_description_et | 30-plaadiline Chillout MKIV soojusvaheti jahutab virde kiiresti korruliste plaatide ja 1/2" BSP roostevaba konstruktsiooni abil. |
| lumav_meta_description_fi | 30-levyinen Chillout MKIV -lämmönvaihdin jäähdyttää vierteen nopeasti aaltoilevien levyjen ja 1/2" BSP-liitännän ansiosta. |
| lumav_meta_description_lt | 30 plokštelių Chillout MKIV šilumokaitis greitai atvėsina misą dėl gofruotų plokštelių ir 1/2 colio BSP sriegio. |
| lumav_meta_description_lv | 30 plākšņu Chillout MKIV siltummainis ātri atdzesē iesalu ar viļņotajām plāksnēm un 1/2 collu BSP vītni. |
| lumav_meta_description_sv | Chillout MKIV värmeväxlare med 30 plattor kyler vörten snabbt tack vare krusiga plattor och 1/2-tums BSP-gänga. |
| lumav_meta_keywords_de | Wärmetauscher, Plattenkühler, Gegenstrom, Würzekühlung, Edelstahl, BSP |
| lumav_meta_keywords_en | heat exchanger, plate chiller, counterflow, wort cooling, stainless steel, BSP |
| lumav_meta_keywords_et | soojusvaheti, plaatjahuti, vastuvool, virre jahutamine, roostevaba teras, BSP |
| lumav_meta_keywords_fi | lämmönvaihdin, levyjäähdytin, vastavirtaus, vierteen jäähdytys, ruostumaton teräs, BSP |
| lumav_meta_keywords_lt | šilumokaitis, plokštelinis aušintuvas, priešsrovė, misų aušinimas, nerūdijantis plienas, BSP |
| lumav_meta_keywords_lv | siltummainis, plākšņu dzesētājs, pretplūsma, iesalas dzesēšana, nerūsējošais tērauds, BSP |
| lumav_meta_keywords_sv | värmeväxlare, plattkylare, motström, vörtkylning, rostfritt stål, BSP |
| lumav_meta_title_de | Wärmetauscher 30-Platten Chillout MKIV · FERMETECH |
| lumav_meta_title_en | Heat Exchanger 30-Plate Chillout MKIV · FERMETECH |
| lumav_meta_title_et | Soojusvaheti 30-plaadiga Chillout MKIV · FERMETECH |
| lumav_meta_title_fi | Lämmönvaihdin 30-levyinen Chillout MKIV · FERMETECH |
| lumav_meta_title_lt | Šilumokaitis 30 plokštelių Chillout MKIV · FERMETECH |
| lumav_meta_title_lv | Siltummainis 30 plākšņu Chillout MKIV · FERMETECH |
| lumav_meta_title_sv | Värmeväxlare 30-plattor Chillout MKIV · FERMETECH |
| Weight (kg) | 3.062000 |
| High (m) | 0.051 |
| Width (m) | 0.073 |
| Length (m) | 0.315 |
