Tootekood: KL22514
EAN: 20000000540463

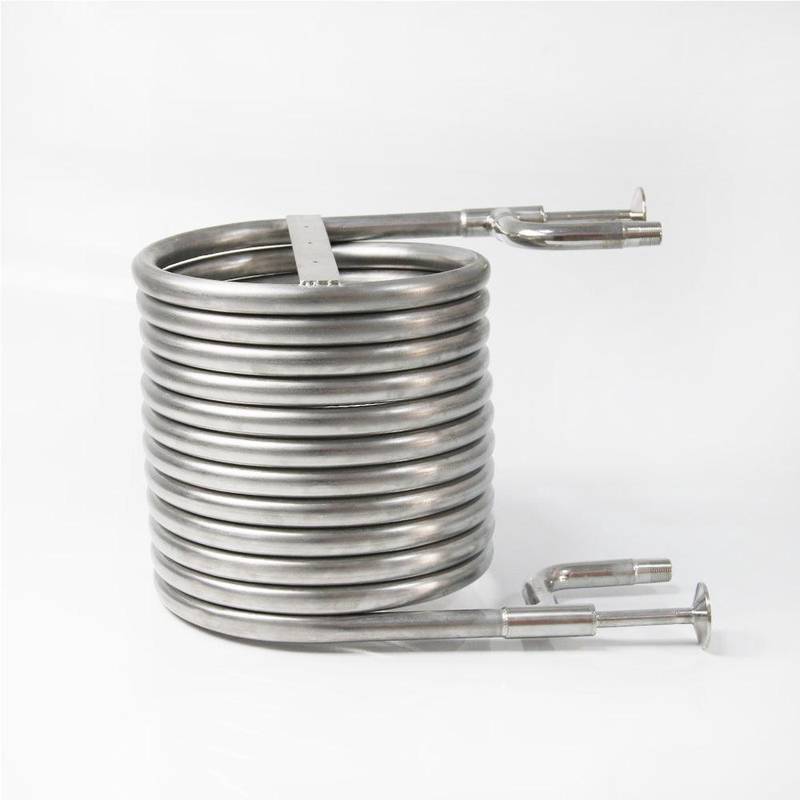

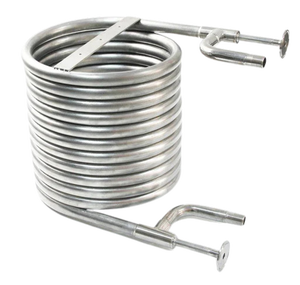

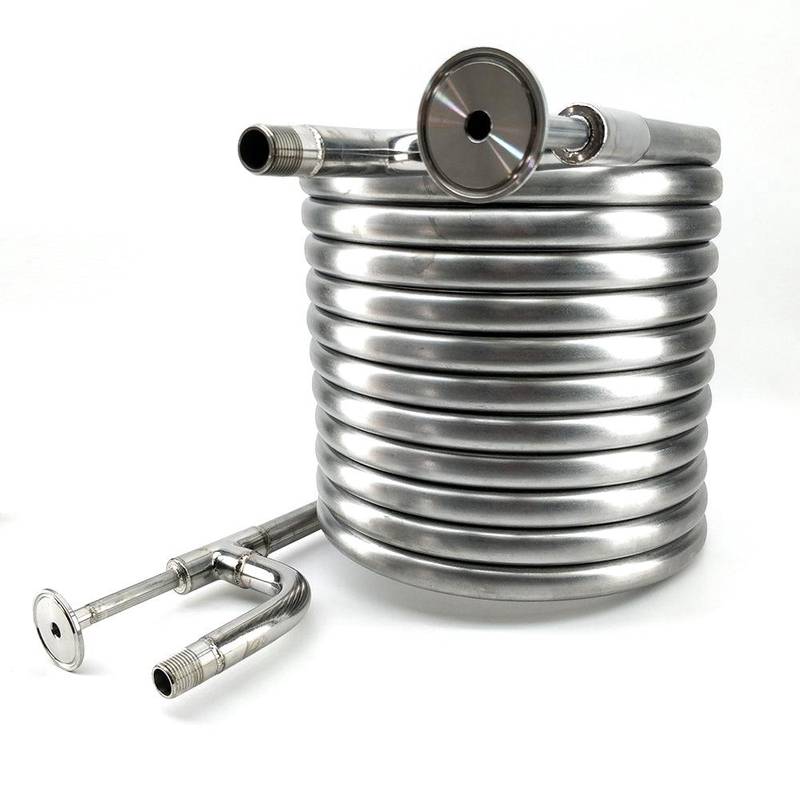

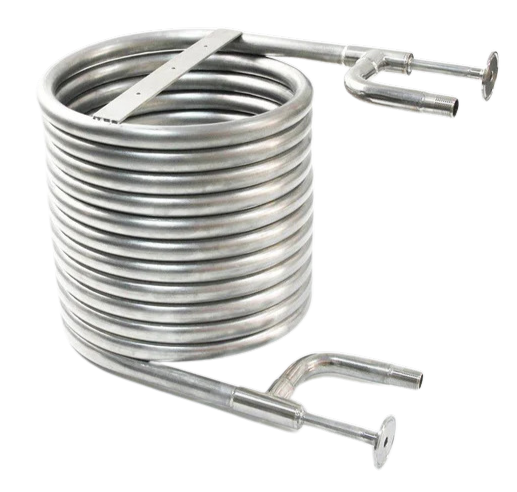

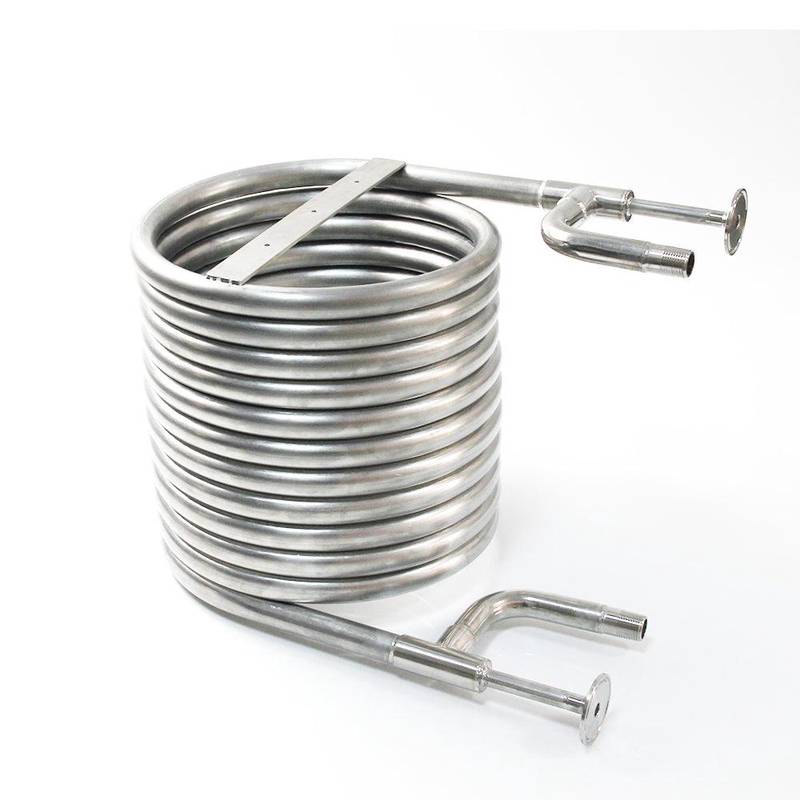

Jahutustoru Coolossus Gen2 1,5" TC virdeühendus 1/2" veeühendus vastuvoolu
Jahutustoru Coolossus Gen2 1,5" TC virdeühendus Coolossus Gen2 on tööstusliku kvaliteediga 9,5-meetrine vastuvoolu jahuti professionaalseks õllepruulimiseks. Vastuvoolu tehnoloogias liiguvad kuum vire ja jahutusvesi eraldatud kanalites vastassuundades, tagades maksimaalse soojusülekande. Täielikult passiveeritud 304 roostevabast terasest konstruktsioon sobib ka humalarikastele õlledele; ummistumiskindel disain. Tehnilised andmed Jahutustoru 21 mm (sise) x 22 mm (väli) x 9 m Virdetoru 11,9 mm (sise) x 12,7 mm (väli) x 9,5 m Seadme kõrgus 280 mm; läbimõõt 180 mm Ühendused: 1/2" BSPT vesi, 1,5" Tri Clover virre Ülekandevõimsus 300 W ΔT kohta (394 W, kui jahutusvee kiirus 3x suurem)
Paigaldus Paigaldusteenus: paigaldame seadme objektil vastavalt tootja juhistele, ühendame liiniga (mehaanilised ühendused) ning teostame esmase seadistuse ja testkäivituse. Hind sõltub asukohast, ligipääsust ja tööde mahust. (hind kokkuleppel / hinnapakkumise alusel)Ei Jah269.00€
Hind km-ta216.94€
0Europe/Tallinnout_of_stock_products0SaadavusLaos Pärnu 1 tk Laos Laost otsas Tarnija ladu 0 tk Laost otsas TarneinfoLaadimine…Garantii 24 kuudArvemakse B2BVaruosad e-poest -
-
Kirjeldus

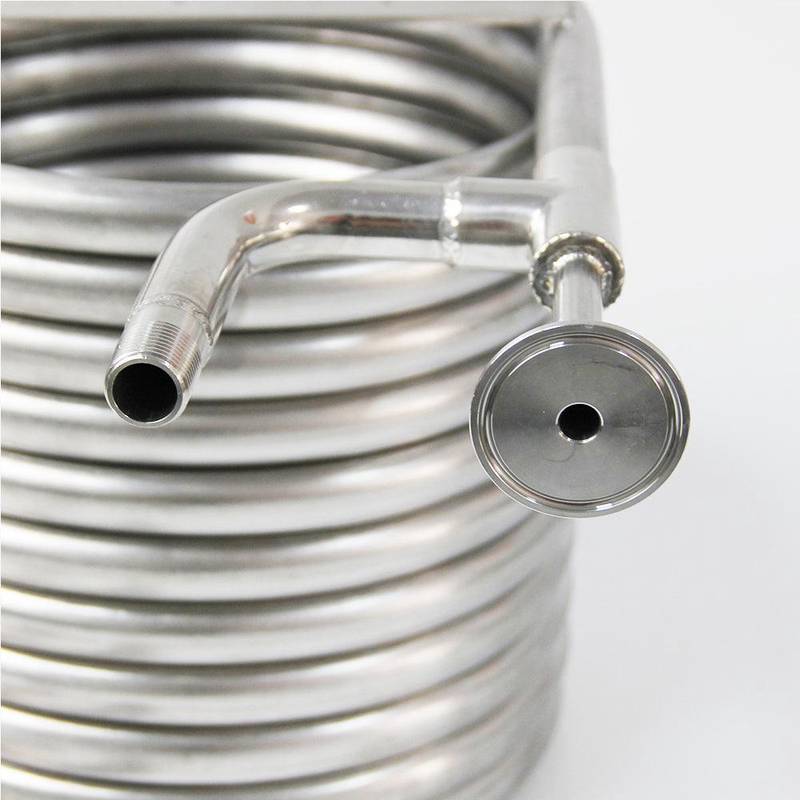

Jahutustoru Coolossus Gen2 1,5" TC virdeühendus
Coolossus Gen2 on tööstusliku kvaliteediga 9,5-meetrine vastuvoolu jahuti professionaalseks õllepruulimiseks. Vastuvoolu tehnoloogias liiguvad kuum vire ja jahutusvesi eraldatud kanalites vastassuundades, tagades maksimaalse soojusülekande. Täielikult passiveeritud 304 roostevabast terasest konstruktsioon sobib ka humalarikastele õlledele; ummistumiskindel disain.
Tehnilised andmed
- Jahutustoru 21 mm (sise) x 22 mm (väli) x 9 m
- Virdetoru 11,9 mm (sise) x 12,7 mm (väli) x 9,5 m

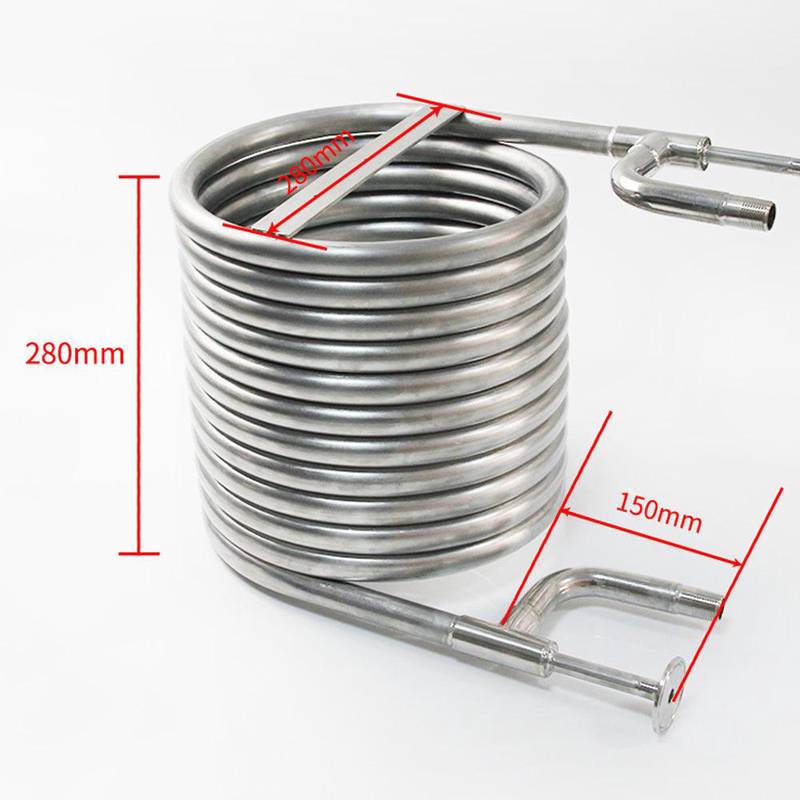

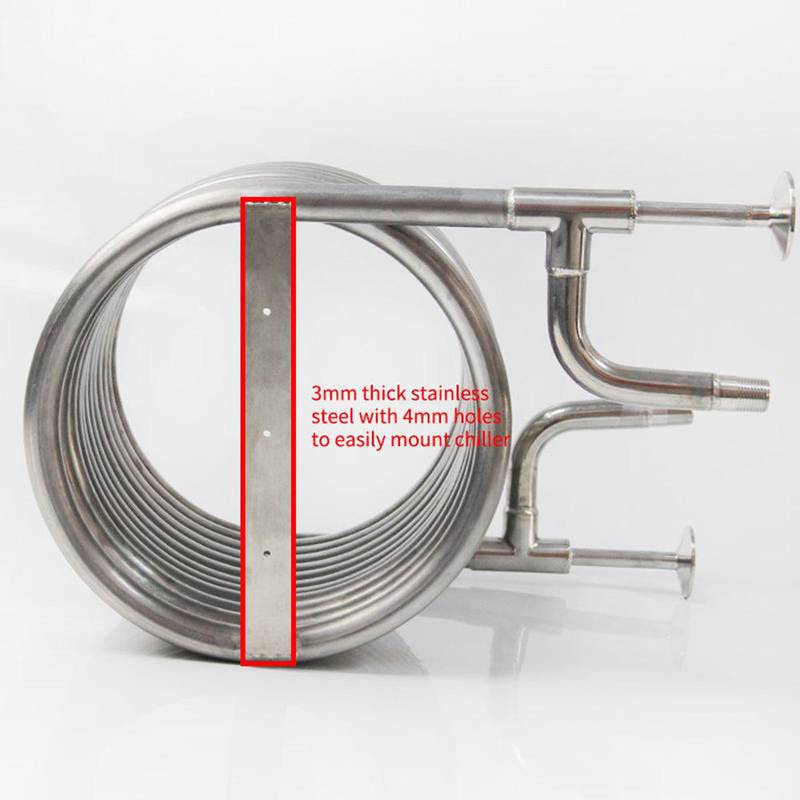

- Seadme kõrgus 280 mm; läbimõõt 180 mm

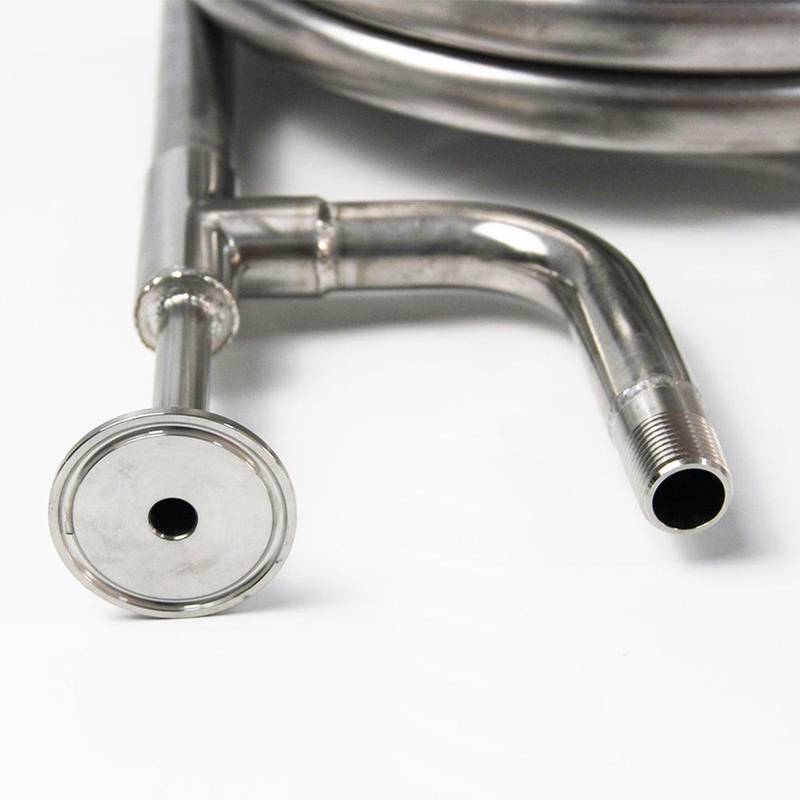

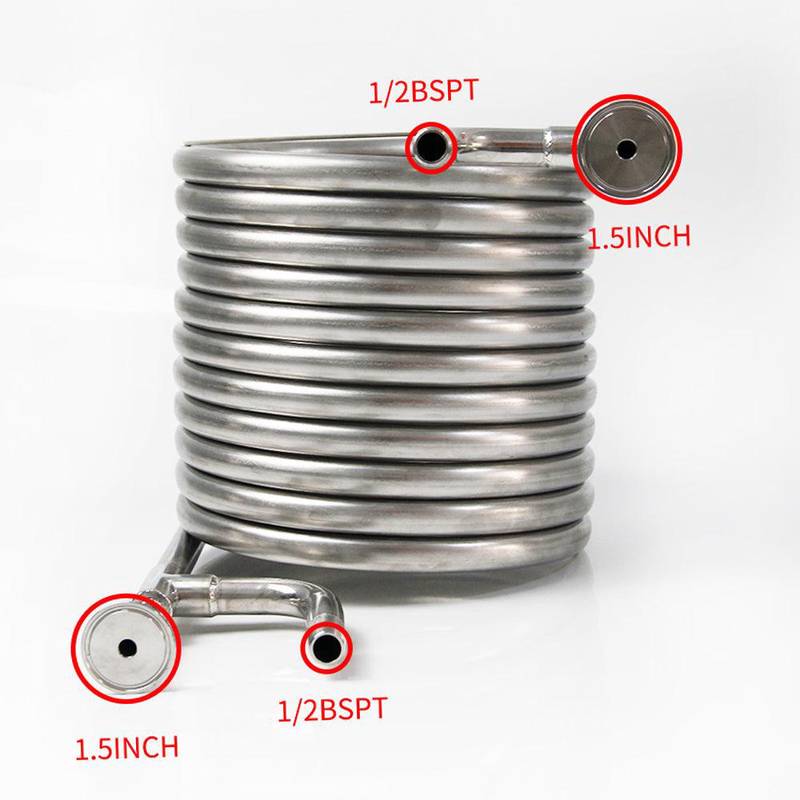

- Ühendused: 1/2" BSPT vesi, 1,5" Tri Clover virre
- Ülekandevõimsus 300 W ΔT kohta (394 W, kui jahutusvee kiirus 3x suurem)
-
Sagedased küsimused selle toote kohta
Kuidas jahutab vastuvoolu jahuti virret kiiremini kui sukeldatav spiraal?
Vastuvoolu jahutis liiguvad kuum virre ja külm vesi eraldi kanalites vastassuundades, nii et virre kohtab kogu tee vältel üha külmemat vett. See pidev soojusvahetus jahutab virde ühe läbiminekuga peaaegu pärmi lisamise temperatuurini, erinevalt sukeldatavast spiraalist, mis jahutab kogu katelt aeglaselt.
Milliseid ühendusi kumbki pool kasutab ja kas voolusuund on oluline?
Virde pool kasutab 1,5 tolli Tri Clover klamberühendusi ja vee pool 1/2 tolli BSPT keermesühendusi. Ühenda külm vesi nii, et see voolaks virde suunale vastu, sest vastuvoolu põhimõte sõltub kahe voolu vastassuunalisest liikumisest.
Kuidas hoida kitsast virdekanalit ummistumast?
Virdetorul on väike umbes 12 mm siseläbimõõt, seega lase kohe pärast iga pruulimist sellest läbi kuum puhastuslahus ja loputa hoolikalt. Suhkrurikka virde, sette või humala kuivamine torus on peamine ummistuse põhjus ja hiljem palju raskem eemaldada.
Kas saan virde lõpptemperatuuri reguleerida?
Jah. Väljundtemperatuur sõltub virde- ja veevoolu tasakaalust, seega külma vee voolu suurendamine või virde voolu aeglustamine annab külmema väljundi. Kuumal päeval sooja kraaniveega võib olla vaja virde voolu vähendada, et saavutada soovitud temperatuur.
-
Spetsifikatsioonid
Pikkus (mm) 180.00 Laius (mm) 180.00 Kõrgus (mm) 280.00 Kaal (kg) 7.80 Brutokaal (kg) 21.00 Unit tk Võimsus (W) 300 Ühenduse suurus 1/2" Sertifikaadid CE
PED
NSF
Materjal Roostevaba teras
Toidu vastavus Happekindel
Pliivaba
Kaadmiumivaba
Raskemetallid normis
Vastab EU 1935/2004
Vastab EU 10/2011
Toidukontakt sertifitseeritud
-
