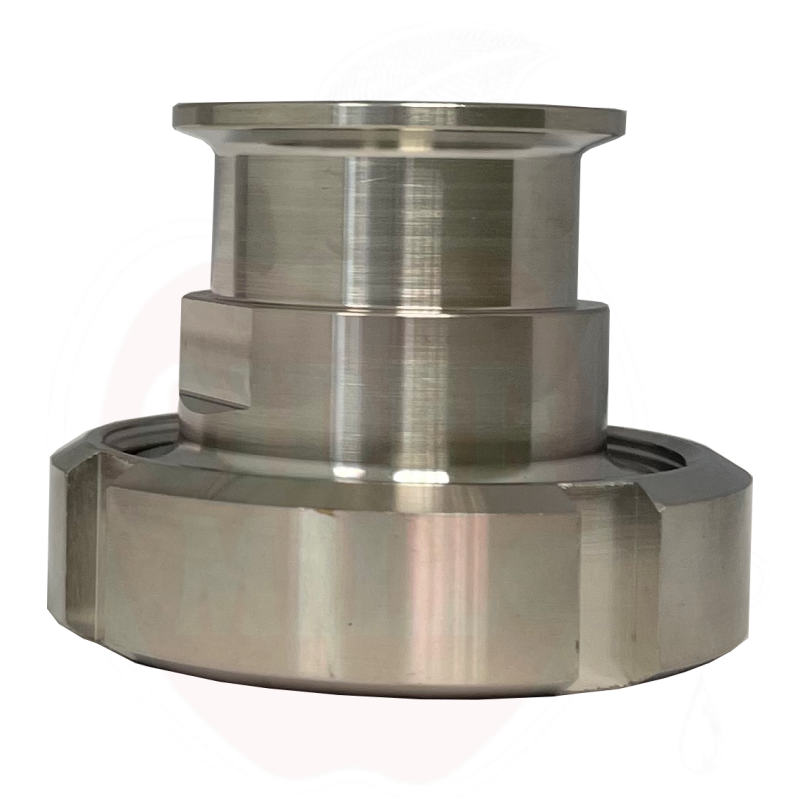

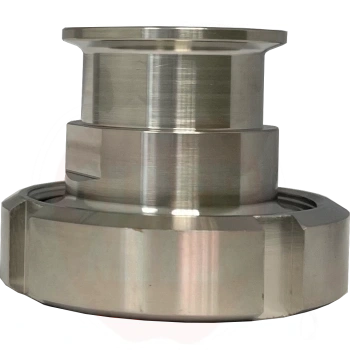

Transition Tri-Clamp 50.5mm x DIN 40
EAN: 4064907056122
Brand: MCC
Unit: pc
Stock qty: 2
Delivery time within Estonia for stock items approx. 3-5 working days. NOTE! Due to the rapid price increase, prices for non-stock items may change without prior notice! Standard prices with 24% VAT.
Stainless Steel DIN 32676 Tri-Clamp Adapter - Food Industry Quality Fitting
Durable stainless steel AISI 316 adapter conforming to DIN 32676 standard, enabling connection between Tri-Clamp fitting and DIN thread. This professional food industry fitting ensures secure connection at working pressures up to 16 bar.
Technical Specifications:
- Material: AISI 316 stainless steel
- Standard: DIN 32676
- Connection type: Tri-Clamp fitting to DIN thread
- Maximum working pressure: 16 bar
- Application: Food industry, beverage industry, juice production
Thanks to the stainless AISI 316 material, this adapter is ideal for food and beverage processing equipment, ensuring hygienic and durable connection. Gasket must be purchased separately according to specific usage requirements.
Frequently asked questions about 37813
What material is the transition made of?
The transition is made of AISI 316 stainless steel, which is known for its excellent corrosion resistance and is well suited for food, beverage and juice production environments. AISI 316 is especially recommended for contact with acidic liquids and cleaning chemicals.
What is the maximum working pressure?
The maximum working pressure is 16 bar, which is sufficient for most applications in the food and beverage industry, including CIP cleaning, product transfer and pressurized filling lines. Always make sure that the gasket and mating fitting are rated for the same pressure.
Is the gasket included?
No, the gasket is not included and must be purchased separately. This allows the selection of the right seal material (EPDM, silicone, FKM, PTFE) according to the specific application, process temperature and material being handled.
What standards does the fitting meet?
The transition complies with the DIN 32676 standard for Tri-Clamp clamp connections, ensuring dimensional compatibility with other DIN 32676 components. The DIN 40 thread follows the standard DIN thread dimensions widely used in European food processing equipment.
Is the transition suitable for CIP and SIP cleaning?
Yes, AISI 316 stainless steel can withstand conventional CIP (Cleaning in Place) and SIP (Sterilization in Place) procedures, including hot water, alkaline and acid cleaning cycles. Choose a sealant material that is compatible with your cleaning chemicals and temperatures.
